Microchip Split Gate 8 MB SPI Flash Memory 8-Pin SOIC
- RS 제품 번호:
- 869-6195P
- 제조사 부품 번호:
- SST26WF080B-104I/SN
- 제조업체:
- Microchip

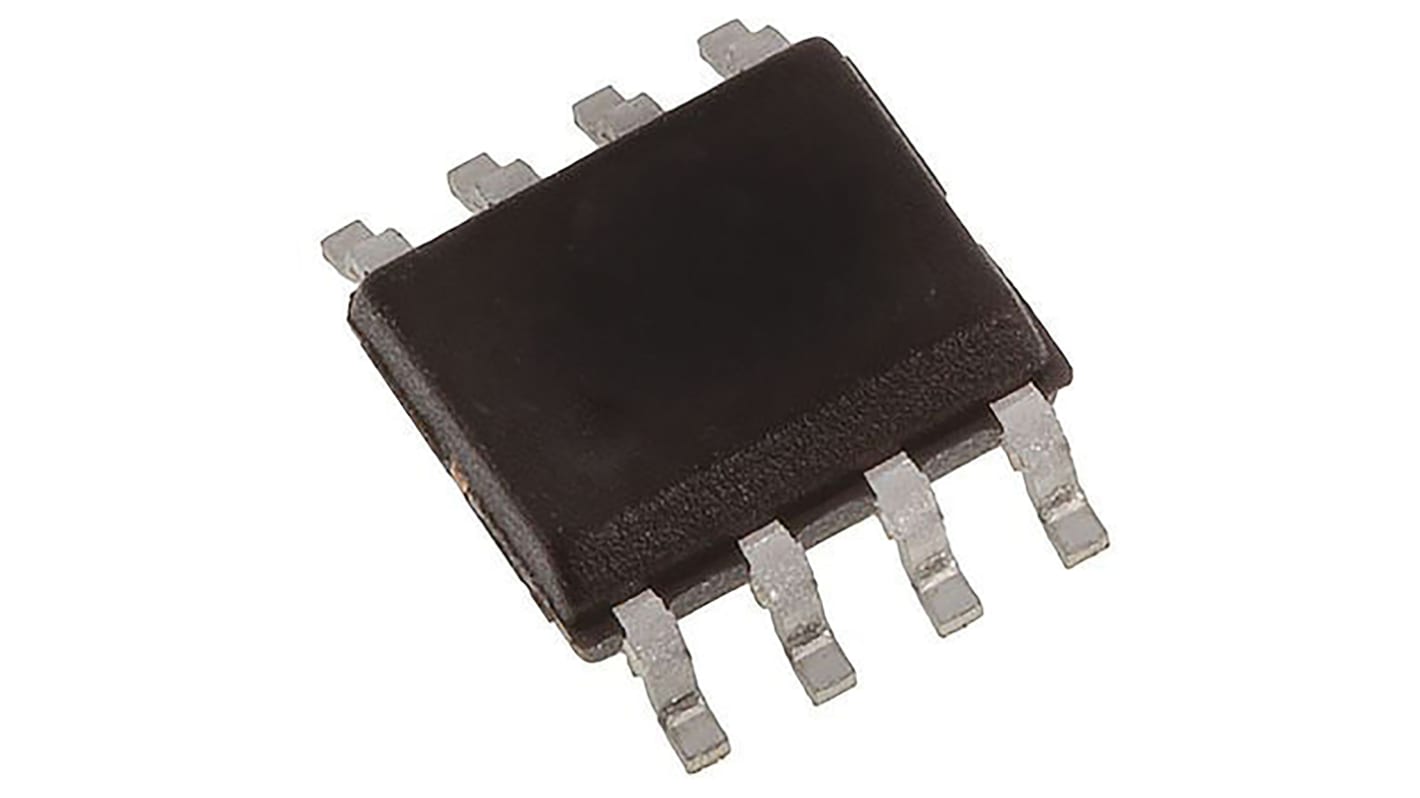

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 869-6195P
- 제조사 부품 번호:
- SST26WF080B-104I/SN
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Product Type | Flash Memory | |
| Memory Size | 8MB | |
| Interface Type | SPI | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Mount Type | Surface | |
| Maximum Clock Frequency | 104MHz | |
| Cell Type | Split Gate | |
| Maximum Supply Voltage | 1.95V | |
| Minimum Supply Voltage | 1.65V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Height | 1.25mm | |
| Length | 4.9mm | |
| Automotive Standard | No | |
| Series | SST26WF080B | |
| Maximum Random Access Time | 3ns | |
| Number of Bits per Word | 8 | |
| Number of Words | 1M | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Product Type Flash Memory | ||
Memory Size 8MB | ||
Interface Type SPI | ||
Package Type SOIC | ||
Pin Count 8 | ||
Mount Type Surface | ||
Maximum Clock Frequency 104MHz | ||
Cell Type Split Gate | ||
Maximum Supply Voltage 1.95V | ||
Minimum Supply Voltage 1.65V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Height 1.25mm | ||
Length 4.9mm | ||
Automotive Standard No | ||
Series SST26WF080B | ||
Maximum Random Access Time 3ns | ||
Number of Bits per Word 8 | ||
Number of Words 1M | ||
SST26WF040B/080B/016B Serial Quad I/O (SQI) SuperFlash® Flash Memory
From Microchip the SST26WFxxxB family of products are Serial Quad I/O (SQI) Flash Memory devices available in 4-, 8- and 16-bit variants. These devices support full command-set compatibility with Serial Peripheral Interface (SPI) protocol and enable minimum latency Execute-in-Place (XIP) capability without the need for code shadowing on an SRAM. The SST26WFxxxB devices exhibit low power consumption, making them suitable for portable battery powered applications.
Features
Operating Voltage Range 1.6 to 1.95 V
Clock Frequency 104 MHz max
Serial Interface Architecture
Low Power Consumption: Active Read Current: 15 mA (typical at 104 MHz), Standby Current: 10 μA (typical)
Burst Modes: Continuous Linear Burst, 8/16/32/64 Byte Linear Burst with Wrap-Around
Page-Program: 256 Bytes per page in x1 or x4 mode
Fast Erase Time: Sector/Block Erase 18 MS (typ), 25 MS (max); Chip Erase 35 MS (typ), 50 MS (max)
Flexible Erase Capability
End-of-Write Detection
Write-Suspend
Software Protection
Software Reset (RST) Mode
SFDP (Serial Flash Discoverable Parameters)
