Infineon MIRRORBIT 1 GB SPI Flash Memory 56-Pin TSOP-56, S29GL01GS11TFIV10

RS 제품 번호:: 273-7526
제조사 부품 번호:: S29GL01GS11TFIV10
제조업체:: Infineon

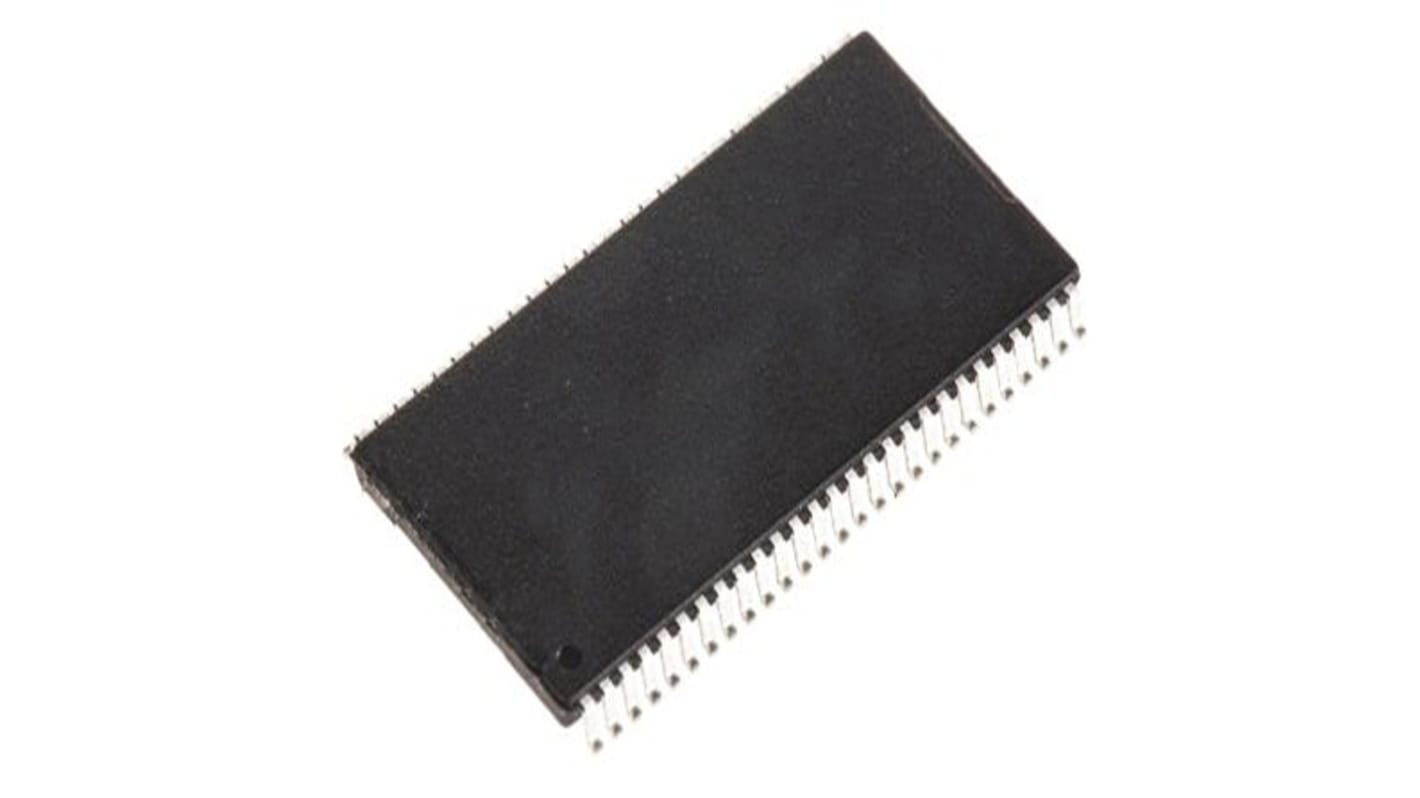

Infineon MIRRORBIT 1 GB SPI Flash Memory 56-Pin TSOP-56, S29GL01GS11TFIV10

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

Subtotal (1 tray of 91 units)*

₩1,864,772.00

재고있음

91 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	Per Tray*
91 +	₩20,492.00	₩1,864,839.68

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 273-7526
제조사 부품 번호:: S29GL01GS11TFIV10
제조업체:: Infineon

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Infineon
	Memory Size	1GB
	Product Type	Flash Memory
	Interface Type	SPI
	Package Type	TSOP-56
	Pin Count	56
	Maximum Clock Frequency	133MHz
	Cell Type	MIRRORBIT
	Maximum Supply Voltage	3.6V
	Minimum Supply Voltage	2.7V
	Timing Type	Asynchronous 32-Byte Page Read
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	105°C
	Standards/Approvals	No
	Automotive Standard	AEC-Q100 Grade 2 & 3
	Maximum Random Access Time	90ns
	Series	S29GL
	Number of Words	256
	Supply Current	100mA
	Number of Bits per Word	16

	모두 선택
	브랜드 Infineon
	Memory Size 1GB
	Product Type Flash Memory
	Interface Type SPI
	Package Type TSOP-56
	Pin Count 56
	Maximum Clock Frequency 133MHz
	Cell Type MIRRORBIT
	Maximum Supply Voltage 3.6V
	Minimum Supply Voltage 2.7V
	Timing Type Asynchronous 32-Byte Page Read
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 105°C
	Standards/Approvals No
	Automotive Standard AEC-Q100 Grade 2 & 3
	Maximum Random Access Time 90ns
	Series S29GL
	Number of Words 256
	Supply Current 100mA
	Number of Bits per Word 16

Datasheet - S29GL01GS11TFIV10

The Infineon Flash Memory offer high densities coupled with the flexibility and fast performance required by a variety of mobile or embedded applications. Provides an ideal storage solution for systems with limited space, signal connections and power. These memories offer flexibility and performance well beyond ordinary serial flash devices. They are ideal for code shadowing to RAM, executing code directly and storing re programmable data.

Double data rate option

Quad peripheral interface option

Minimum 20 year data retention

Serial peripheral interface with multi IO

Minimum 100000 program erase cycles

Clock polarity and phase modes 0 and 3

Infineon MIRRORBIT 1 GB SPI Flash Memory 56-Pin TSOP-56, S29GL01GS11TFIV10
