Infineon NOR 128 MB SPI Flash Memory 8-Pin SOIC, S25FL127SABMFI100

RS 제품 번호:: 273-7480
제조사 부품 번호:: S25FL127SABMFI100
제조업체:: Infineon

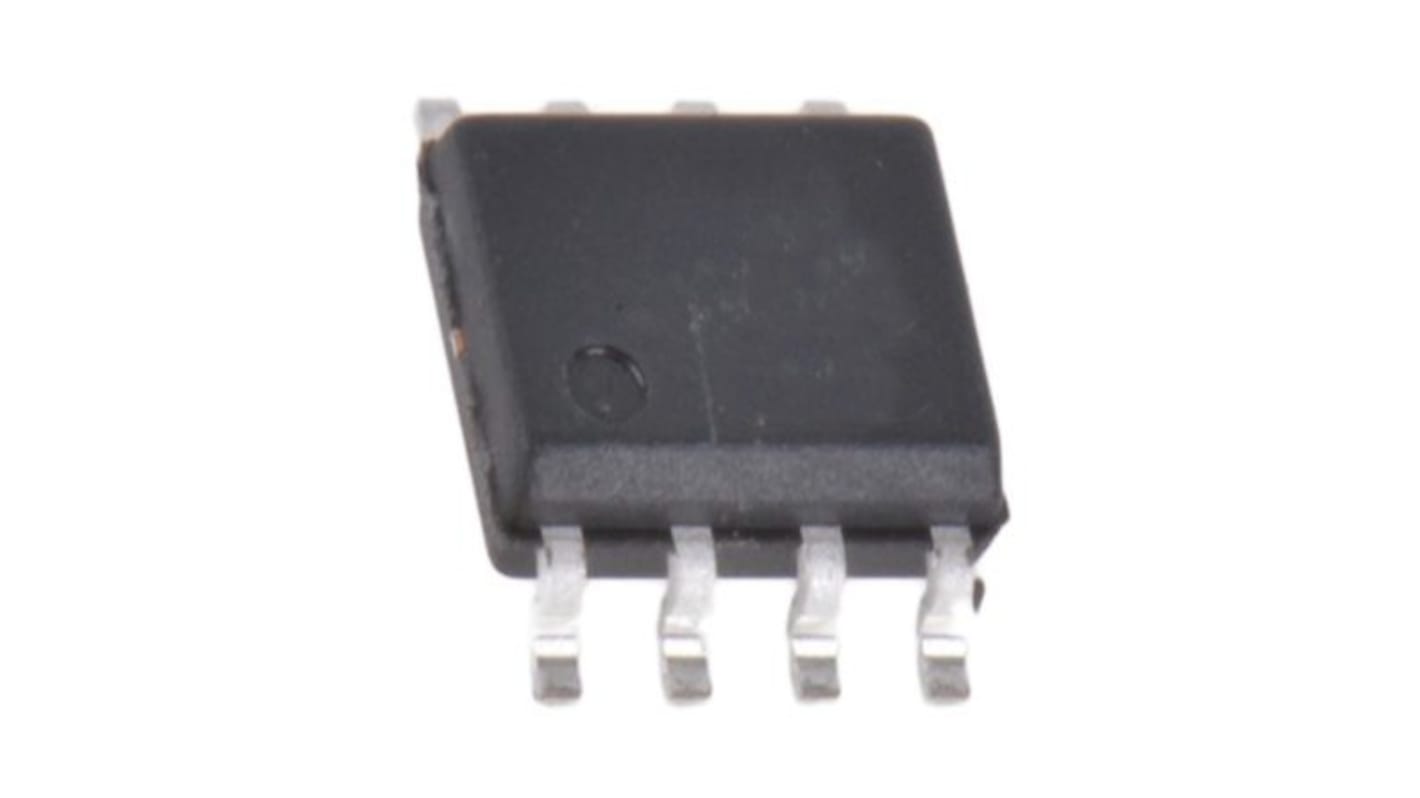

Infineon NOR 128 MB SPI Flash Memory 8-Pin SOIC, S25FL127SABMFI100

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

현재 이용 불가

이 품목의 재입고 여부는 알 수 없으며 제조업체에서 단종되고 있습니다.

RS 제품 번호:: 273-7480
제조사 부품 번호:: S25FL127SABMFI100
제조업체:: Infineon

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Infineon
	Product Type	Flash Memory
	Memory Size	128MB
	Interface Type	SPI
	Package Type	SOIC
	Pin Count	8
	Maximum Clock Frequency	108MHz
	Cell Type	NOR
	Maximum Supply Voltage	3.6V
	Minimum Supply Voltage	2.7V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	105°C
	Standards/Approvals	No
	Supply Current	50mA
	Series	S25FL127S
	Automotive Standard	AEC-Q100 Grade 2 & 3

	모두 선택
	브랜드 Infineon
	Product Type Flash Memory
	Memory Size 128MB
	Interface Type SPI
	Package Type SOIC
	Pin Count 8
	Maximum Clock Frequency 108MHz
	Cell Type NOR
	Maximum Supply Voltage 3.6V
	Minimum Supply Voltage 2.7V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 105°C
	Standards/Approvals No
	Supply Current 50mA
	Series S25FL127S
	Automotive Standard AEC-Q100 Grade 2 & 3

Datasheet - S25FL127SABMFI100

The Infineon Flash Memory offer high densities coupled with the flexibility and fast performance required by a variety of mobile or embedded applications. It is Ideal for code shadowing, XIP, and data storage. Executing code directly from flash memory is often called execute in Place. By using FL-S devices at the higher clock rates supported, with QIO command, the instruction read transfer rate can match or exceed traditional parallel interface, asynchronous, NOR flash memories while reducing signal count dramatically.

CMOS 3.0 V core

Minimum 20 year data retention

Minimum 100000 program erase cycles

Hardware and software control options

SPI clock polarity and phase modes 0 and 3
