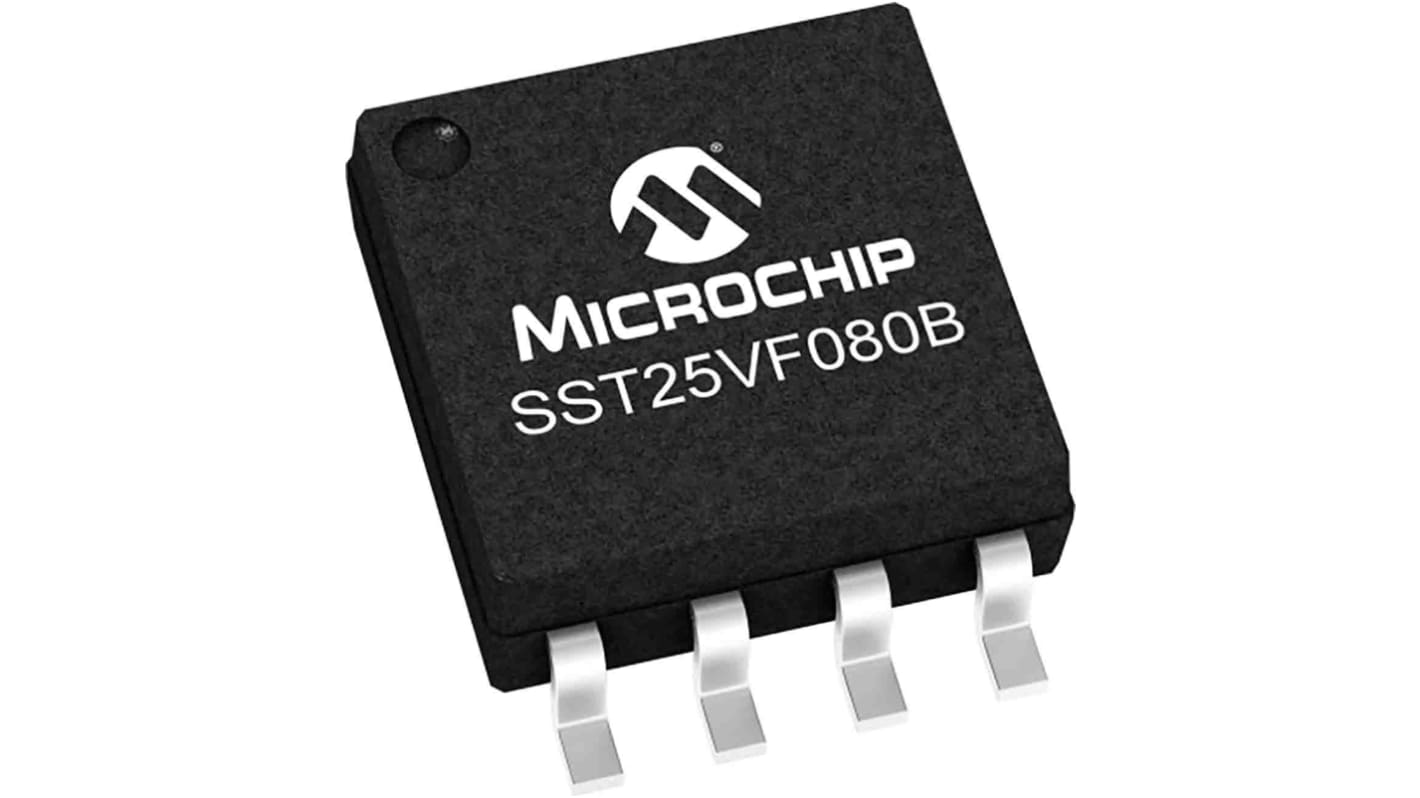

Microchip NOR 8 MB SPI Flash Memory 8-Pin SOIJ, SST25VF080B-50-4I-S2AF-T
- RS 제품 번호:
- 197-5859
- Distrelec 제품 번호:
- 304-32-063
- 제조사 부품 번호:
- SST25VF080B-50-4I-S2AF-T
- 제조업체:
- Microchip
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 pack of 10 units)*
₩20,868.00
일시적 품절
- 2026년 11월 30일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 10 - 520 | ₩2,086.80 | ₩20,868.00 |
| 530 - 1040 | ₩2,039.80 | ₩20,398.00 |
| 1050 + | ₩2,000.32 | ₩20,003.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 197-5859
- Distrelec 제품 번호:
- 304-32-063
- 제조사 부품 번호:
- SST25VF080B-50-4I-S2AF-T
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Memory Size | 8MB | |
| Product Type | Flash Memory | |
| Interface Type | SPI | |
| Package Type | SOIJ | |
| Pin Count | 8 | |
| Organisation | 8M Bit | |
| Mount Type | Surface | |
| Maximum Clock Frequency | 50MHz | |
| Cell Type | NOR | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 3.6V | |
| Timing Type | Synchronous | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Width | 4 mm | |
| Height | 1.91mm | |
| Length | 5.4mm | |
| Supply Current | 15mA | |
| Series | SST25VF080B | |
| Automotive Standard | No | |
| Maximum Random Access Time | 8ns | |
| Number of Bits per Word | 8 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Memory Size 8MB | ||
Product Type Flash Memory | ||
Interface Type SPI | ||
Package Type SOIJ | ||
Pin Count 8 | ||
Organisation 8M Bit | ||
Mount Type Surface | ||
Maximum Clock Frequency 50MHz | ||
Cell Type NOR | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 3.6V | ||
Timing Type Synchronous | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Width 4 mm | ||
Height 1.91mm | ||
Length 5.4mm | ||
Supply Current 15mA | ||
Series SST25VF080B | ||
Automotive Standard No | ||
Maximum Random Access Time 8ns | ||
Number of Bits per Word 8 | ||
The Microchip SST25VF080B series is a 8Mbit serial peripheral interface (SPI) serial flash memory. They are manufactured with proprietary, high performance CMOS superflash technology. The split-gate cell design and thick-oxide tunnelling injector attain better reliability and manufacturability.
Industrial temperature range is -40°C to +85°C
Single voltage read and write operations- 2.7-3.6V
Low power consumption
High speed clock frequency
All devices are RoHS compliant
Flexible erase capability
