모두 선택	제품 정보	값
	브랜드	Infineon
	Product Type	Flash Memory
	Memory Size	512MB
	Interface Type	CFI
	Package Type	BGA
	Pin Count	64
	Mount Type	Surface
	Maximum Supply Voltage	3.6V
	Minimum Supply Voltage	2.7V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Length	13mm
	Height	1mm
	Standards/Approvals	RoHS
	Number of Words	64M
	Maximum Random Access Time	110ns
	Series	S29GL512
	Number of Bits per Word	8

	모두 선택
	브랜드 Infineon
	Product Type Flash Memory
	Memory Size 512MB
	Interface Type CFI
	Package Type BGA
	Pin Count 64
	Mount Type Surface
	Maximum Supply Voltage 3.6V
	Minimum Supply Voltage 2.7V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Length 13mm
	Height 1mm
	Standards/Approvals RoHS
	Number of Words 64M
	Maximum Random Access Time 110ns
	Series S29GL512
	Number of Bits per Word 8

64 nm MirrorBit Eclipse Technology

Single supply (VCC) for read / program / erase (2.7 V to 3.6 V)

Versatile I/O feature

Wide I/O voltage range (VIO): 1.65 V to VCC

x8/x16 data bus

Asynchronous 32-byte Page read

512-byte Programming Buffer

Programming in bytes

Single word and multiple program on same word options

Automatic Error Checking and Correction (ECC) internal hardware ECC with single bit error correction

Sector Erase

Uniform 128-KB sectors

Suspend and Resume commands for Program and Erase operations

Status Register, Data Polling and Ready/Busy pin methods to determine device status

Advanced Sector Protection (ASP)

Volatile and non-volatile protection methods for each sector

Separate 2048-byte One-Time Program (OTP) array

Four lockable regions (SSR0 - SSR3)

SSR0 is Factory Locked

SSR3 is Password Read Protect

Common Flash Interface (CFI) parameter table

Temperature Range / Grade:

Industrial (-40 °C to +85 °C)

Industrial Plus (-40 °C to +105 °C)

Extended (-40 °C to +125 °C)

100,000 Program / Erase Cycles

20-year data retention፤

수량	한팩당
45 - 89	₩15,002.40
90 +	₩14,682.80

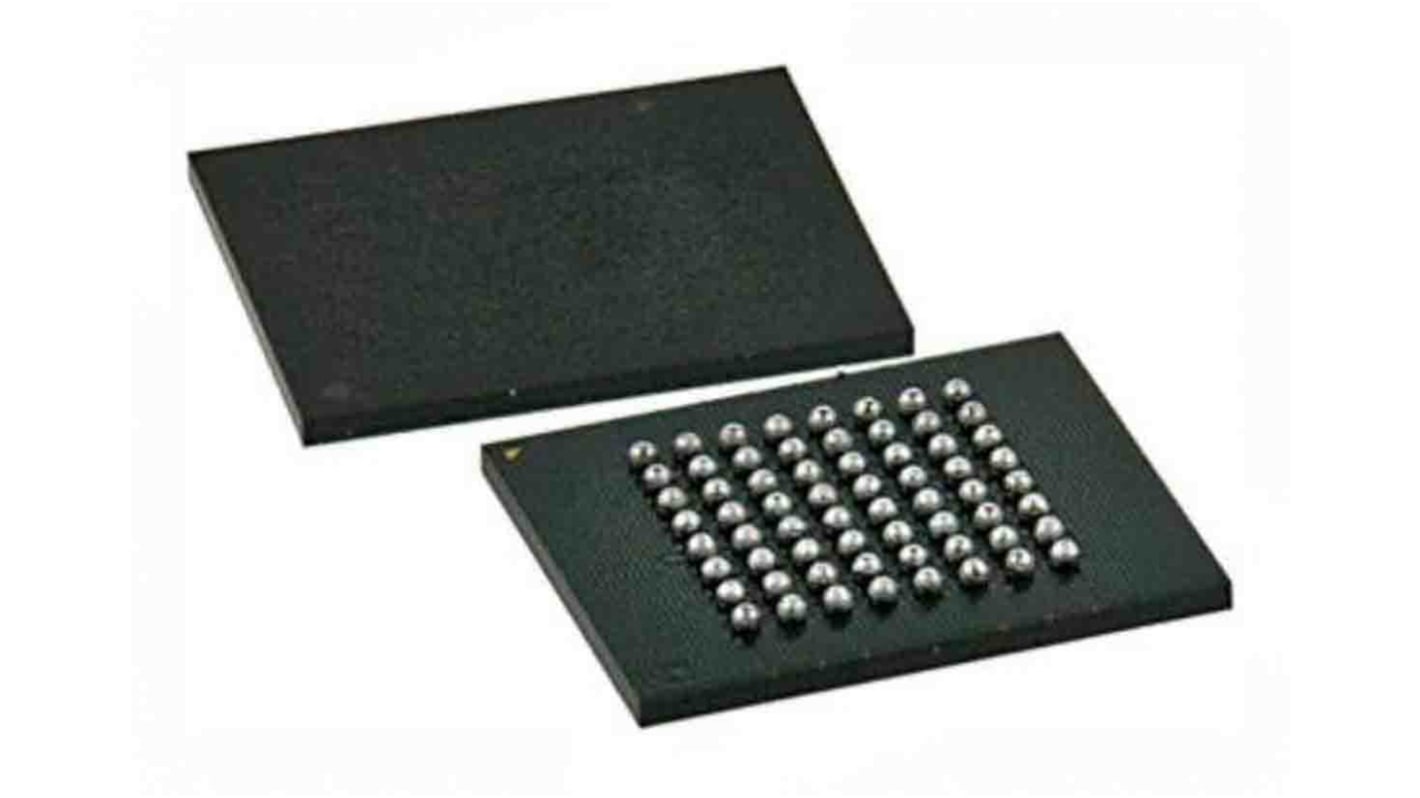

Infineon 512 MB CFI Flash Memory 64-Pin BGA, S29GL512T11FHIV20
