Winbond SLC NAND 1 GB Parallel Flash Memory 48-Pin TSOP
- RS 제품 번호:
- 188-2552
- 제조사 부품 번호:
- W29N01HVSINA
- 제조업체:
- Winbond

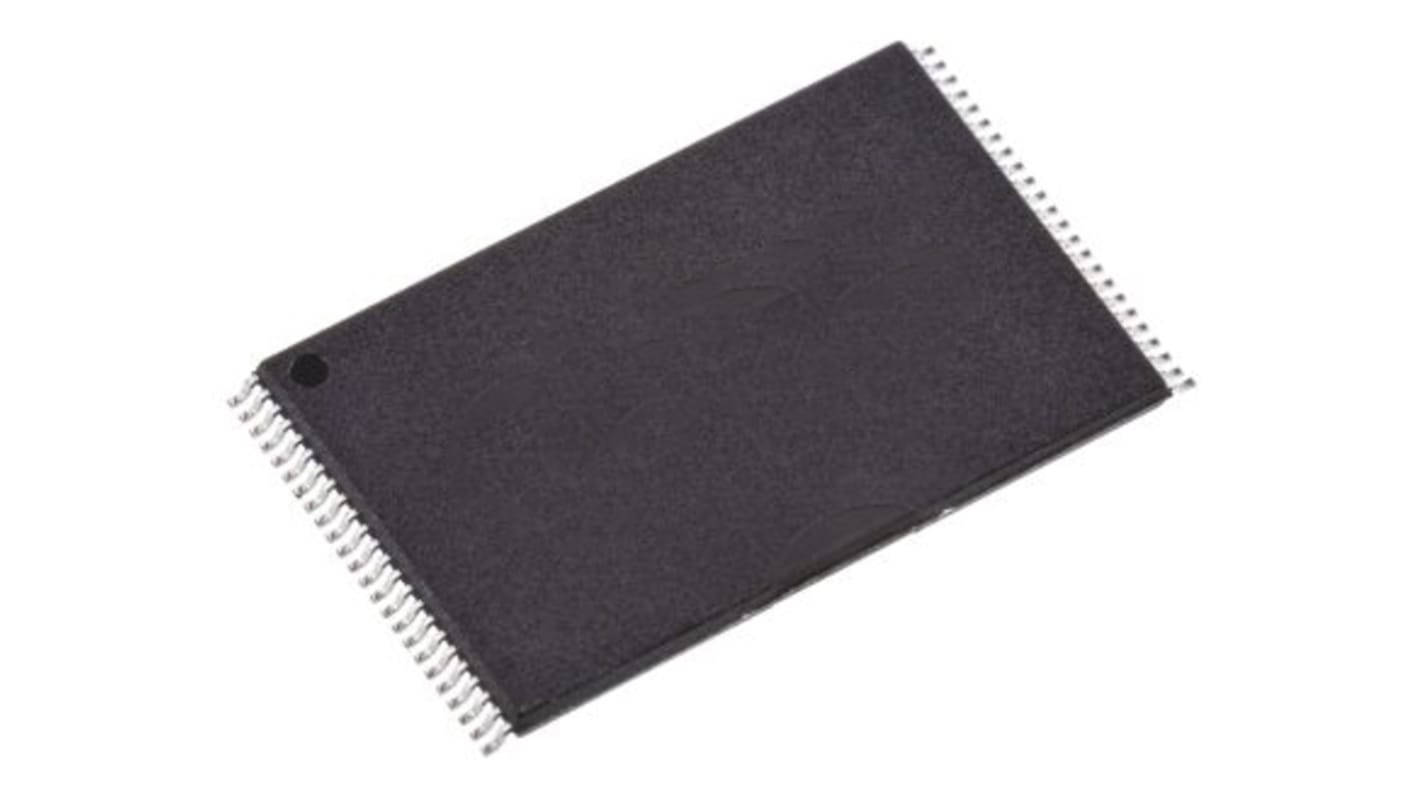

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
- RS 제품 번호:
- 188-2552
- 제조사 부품 번호:
- W29N01HVSINA
- 제조업체:
- Winbond
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Winbond | |
| Product Type | Flash Memory | |
| Memory Size | 1GB | |
| Interface Type | Parallel | |
| Package Type | TSOP | |
| Pin Count | 48 | |
| Organisation | 128M x 8 Bit | |
| Mount Type | Surface | |
| Cell Type | SLC NAND | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Supply Voltage | 2.7V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Width | 12 mm | |
| Length | 12.1mm | |
| Height | 1.5mm | |
| Supply Current | 35mA | |
| Number of Bits per Word | 8 | |
| Maximum Random Access Time | 25μs | |
| Series | W29N01HV | |
| Number of Words | 128M | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Winbond | ||
Product Type Flash Memory | ||
Memory Size 1GB | ||
Interface Type Parallel | ||
Package Type TSOP | ||
Pin Count 48 | ||
Organisation 128M x 8 Bit | ||
Mount Type Surface | ||
Cell Type SLC NAND | ||
Maximum Supply Voltage 3.6V | ||
Minimum Supply Voltage 2.7V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Width 12 mm | ||
Length 12.1mm | ||
Height 1.5mm | ||
Supply Current 35mA | ||
Number of Bits per Word 8 | ||
Maximum Random Access Time 25μs | ||
Series W29N01HV | ||
Number of Words 128M | ||
Automotive Standard No | ||
1Gb SLC NAND Flash Memory with uniform 2KB+64B page size.
Bus Width: x8
Random Read: 25us
Page Program Time: 250us(typ.)
Block Erase Time: 2ms(typ.)
