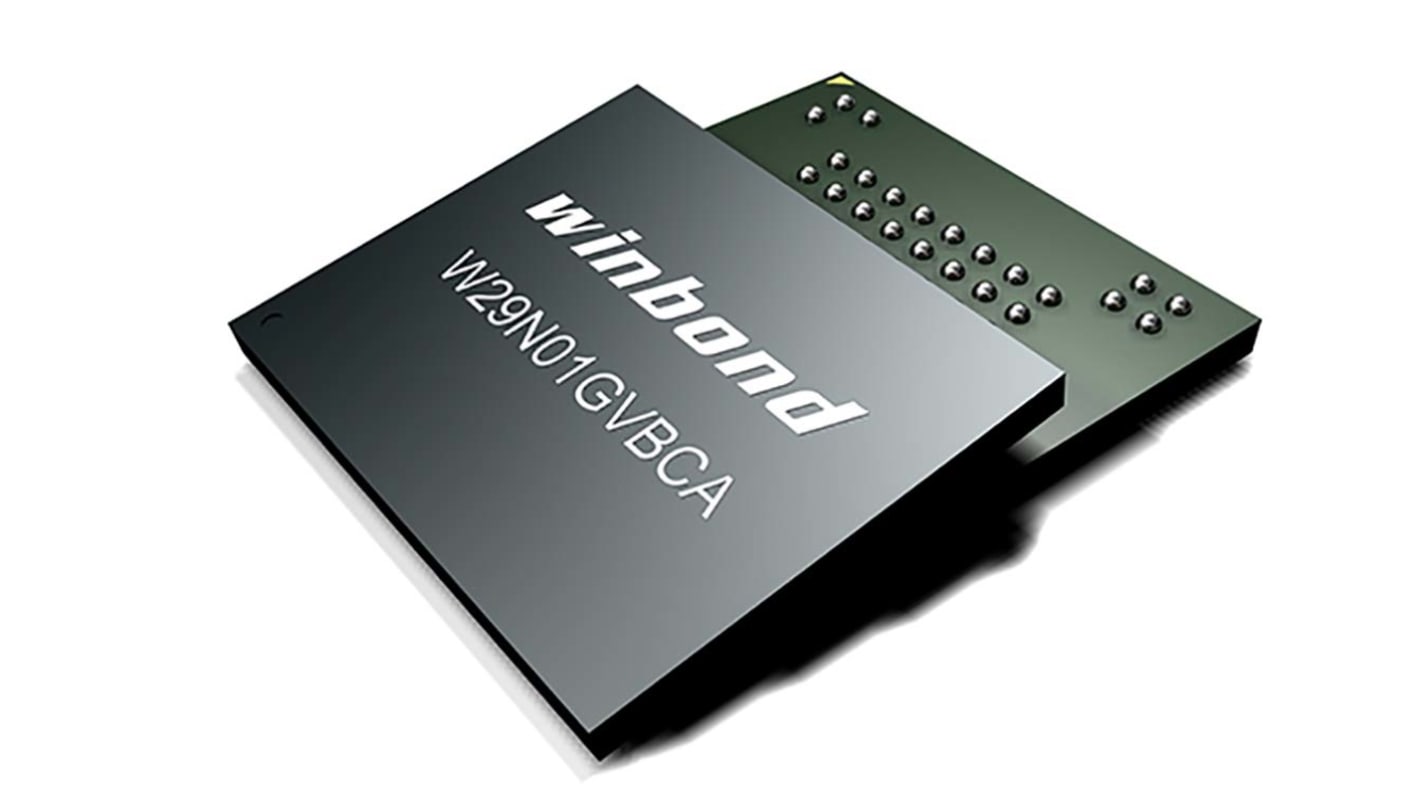

Winbond SLC NAND 8 GB Parallel Flash Memory 63-Pin VFBGA

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Flash Memory 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
188-2567
제조사 부품 번호:
W29N08GZBIBA
제조업체:
Winbond
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Winbond

Product Type

Flash Memory

Memory Size

8GB

Interface Type

Parallel

Package Type

VFBGA

Pin Count

63

Organisation

1024 x 8 bit

Mount Type

Surface

Maximum Clock Frequency

40MHz

Cell Type

SLC NAND

Minimum Supply Voltage

1.7V

Maximum Supply Voltage

1.95V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Length

11.1mm

Standards/Approvals

No

Width

11.1 mm

Height

0.6mm

Number of Bits per Word

8

Maximum Random Access Time

25μs

Automotive Standard

No

Series

W29N08GZ

Number of Words

1024K

Density : 8Gbit (2 chip stacked solution)

Vcc : 1.7V to 1.95V

Bus width : x8/x16

Operating temperature

Industrial: -40°C to 85°C

Single-Level Cell (SLC) technology.

Organization

Density: 8G-bit/1G-byte

Page size

2,112 bytes (2048 + 64 bytes)

1,056 words (1024 + 32 words)

Block size

64 pages (128K + 4K bytes)

64 pages (64K + 2K words)

Highest Performance

Read performance (Max.)

Random read: 25us

Sequential read cycle: 35ns

Write Erase performance

Page program time: 250us(typ.)

Block erase time: 2ms(typ.)

Endurance 100,000 Erase/Program Cycles(1)

10-years data retention

Command set

Standard NAND command set

Additional command support

Copy Back

Two-plane operation

Contact Winbond for OTP feature

Contact Winbond for Block Lock feature

Lowest power consumption

Read: 13mA(typ.)

Program/Erase: 13mA(typ.)

CMOS standby: 20uA(typ.)

Space Efficient Packaging

48-pin standard TSOP1

63-ball VFBGA

8Gb SLC NAND Flash Memory with uniform 2KB+64B page size.

Bus Width: x8

Random Read: 25us

Page Program Time: 250us(typ.)

Block Erase Time: 2ms(typ.)

Support OTP Memory Area
