Winbond NOR 1 MB SPI Flash Memory 8-Pin USON
- RS 제품 번호:
- 188-2546
- 제조사 부품 번호:
- W25X10CLUXIG
- 제조업체:
- Winbond

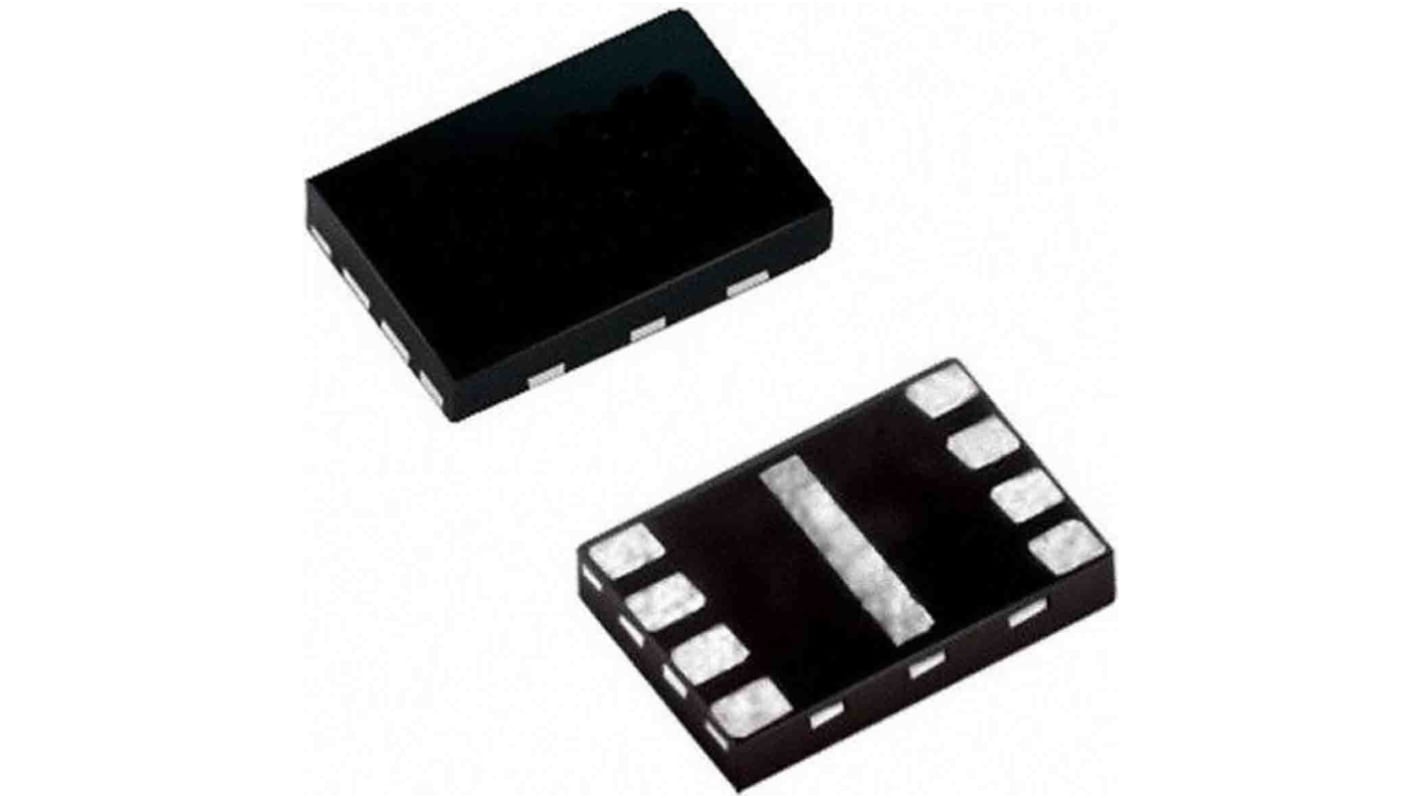

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 이용 불가
이 품목의 재입고 여부는 알 수 없으며 제조업체에서 단종되고 있습니다.
- RS 제품 번호:
- 188-2546
- 제조사 부품 번호:
- W25X10CLUXIG
- 제조업체:
- Winbond
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Winbond | |
| Memory Size | 1MB | |
| Product Type | Flash Memory | |
| Interface Type | SPI | |
| Package Type | USON | |
| Pin Count | 8 | |
| Organisation | 128K x 8 bit | |
| Maximum Clock Frequency | 104MHz | |
| Mount Type | Surface | |
| Cell Type | NOR | |
| Minimum Supply Voltage | 2.3V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Length | 2.1mm | |
| Height | 0.55mm | |
| Width | 2.1mm | |
| Supply Current | 15mA | |
| Maximum Random Access Time | 8ns | |
| Series | W25X10CL | |
| Number of Words | 128k | |
| Automotive Standard | No | |
| Number of Bits per Word | 8 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Winbond | ||
Memory Size 1MB | ||
Product Type Flash Memory | ||
Interface Type SPI | ||
Package Type USON | ||
Pin Count 8 | ||
Organisation 128K x 8 bit | ||
Maximum Clock Frequency 104MHz | ||
Mount Type Surface | ||
Cell Type NOR | ||
Minimum Supply Voltage 2.3V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Length 2.1mm | ||
Height 0.55mm | ||
Width 2.1mm | ||
Supply Current 15mA | ||
Maximum Random Access Time 8ns | ||
Series W25X10CL | ||
Number of Words 128k | ||
Automotive Standard No | ||
Number of Bits per Word 8 | ||
Density 1Mbit Voltage 2.3 - 3.6V Speed 104MHZ Package SOIC8 150mil Package USON8 2x3mm.
Single/Dual SPI
UID
2.3V to 3.6V Vcc Range, Space Efficient Packaging
Flexible Architecture with 4KB Sectors
1mA Active Read Current, <1mA Power Down Current
