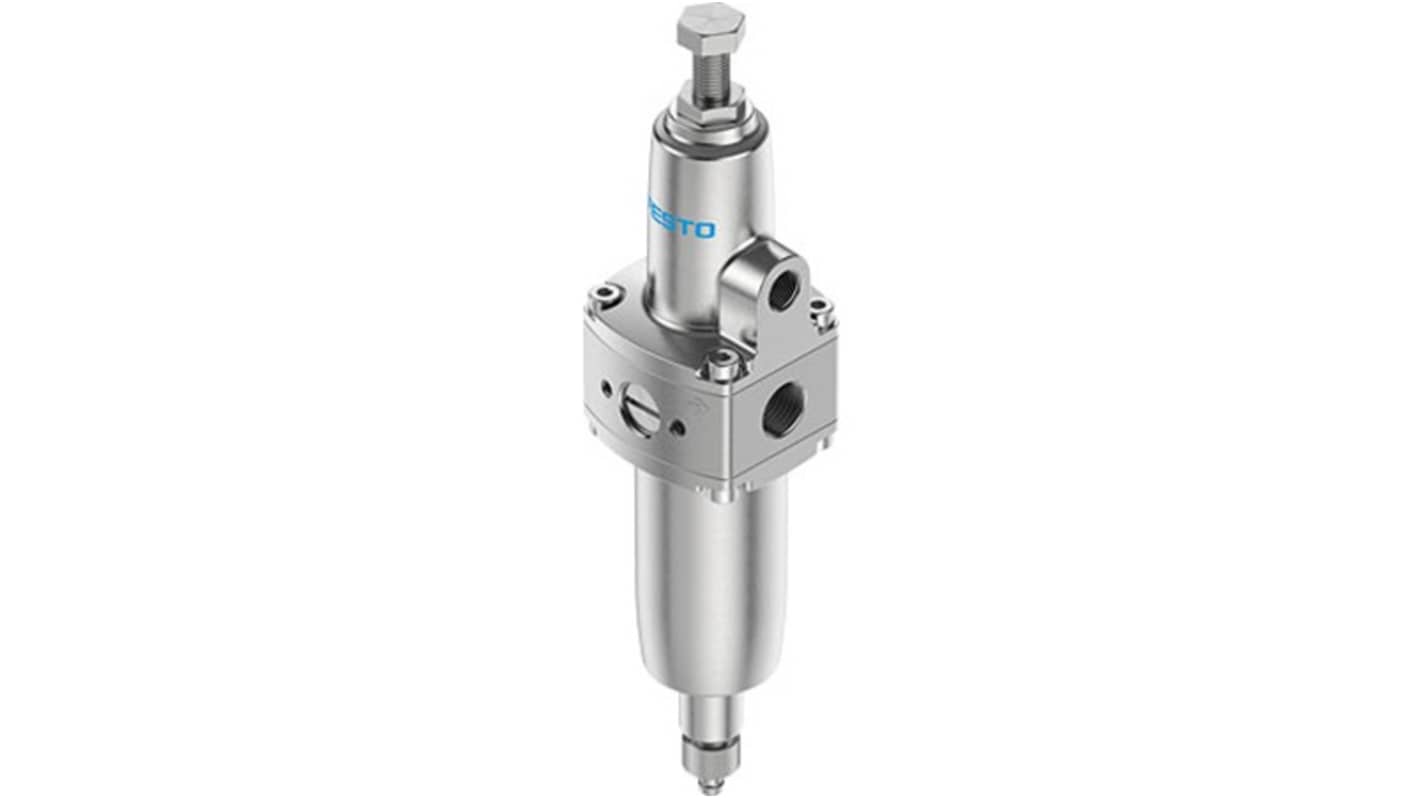

Festo PCRP Filter Regulator, 40 μm, 1/4 in G, Manual, 20 bar, PCRP-44-G14-12-E-R1-M-T19
- RS 제품 번호:
- 343-276
- 제조사 부품 번호:
- PCRP-44-G14-12-E-R1-M-T19
- 제조업체:
- Festo
Subtotal (1 unit)*
₩436,312.50
제조사가 재고 비축중
- 2026년 7월 15일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩436,312.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 343-276
- 제조사 부품 번호:
- PCRP-44-G14-12-E-R1-M-T19
- 제조업체:
- Festo
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Festo | |
| Port Size | 1/4 in G | |
| Product Type | Filter Regulator | |
| Maximum Flow Rate | 2020L/min | |
| Maximum Operating Pressure | 20 bar | |
| Connection Thread Standard | G 1/4 in | |
| Series | PCRP | |
| Drain Type | Manual | |
| Filtration Size | 40μm | |
| Pressure Gauge Port Size | 1/4 in G | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | +80°C | |
| Standards/Approvals | RoHS-compliant | |
| Pressure Gauge Port Thread Standard | G | |
| Pressure Setting Range | 0.5 bar to 12 bar | |
| Bowl Material | Stainless Steel Casting | |
| Model Number | PCRP-44-G14-12-E-R1-M-T19 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Festo | ||
Port Size 1/4 in G | ||
Product Type Filter Regulator | ||
Maximum Flow Rate 2020L/min | ||
Maximum Operating Pressure 20 bar | ||
Connection Thread Standard G 1/4 in | ||
Series PCRP | ||
Drain Type Manual | ||
Filtration Size 40μm | ||
Pressure Gauge Port Size 1/4 in G | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +80°C | ||
Standards/Approvals RoHS-compliant | ||
Pressure Gauge Port Thread Standard G | ||
Pressure Setting Range 0.5 bar to 12 bar | ||
Bowl Material Stainless Steel Casting | ||
Model Number PCRP-44-G14-12-E-R1-M-T19 | ||
- COO (Country of Origin):
- IN
The Festo Filter regulator is expertly engineered to ensure optimal operation within your pneumatic systems. Designed for vertical installation, it features an adjusting screw with a lock to maintain precise settings, making it Ideal for environments where accuracy is paramount. This product stands out for its robust filtration capabilities, effectively removing particles down to 40 μm, and its Ability to handle a broad operating pressure range from 0.1 MPa to 2 MPa. The filter regulator is built to comply with stringent NACE MR0175 standards, ensuring durAbility and reliAbility in demanding applications. With a maximum standard flow rate of 2020 l/min, it guarantees efficient performance while maintaining Air purity to ISO standards. Whether in industrial settings or complex pneumatic solutions, this device promises performance you can depend on.
Manually rotating condensate drain for easy maintenance
High alloy stainless steel materials for enhanced durability
Zone rated explosion protection for added safety
Multiple pneumatic connections for versatile installation options
Compatibility with lubricated operations for varied applications
Lightweight design for convenient handling and installation
