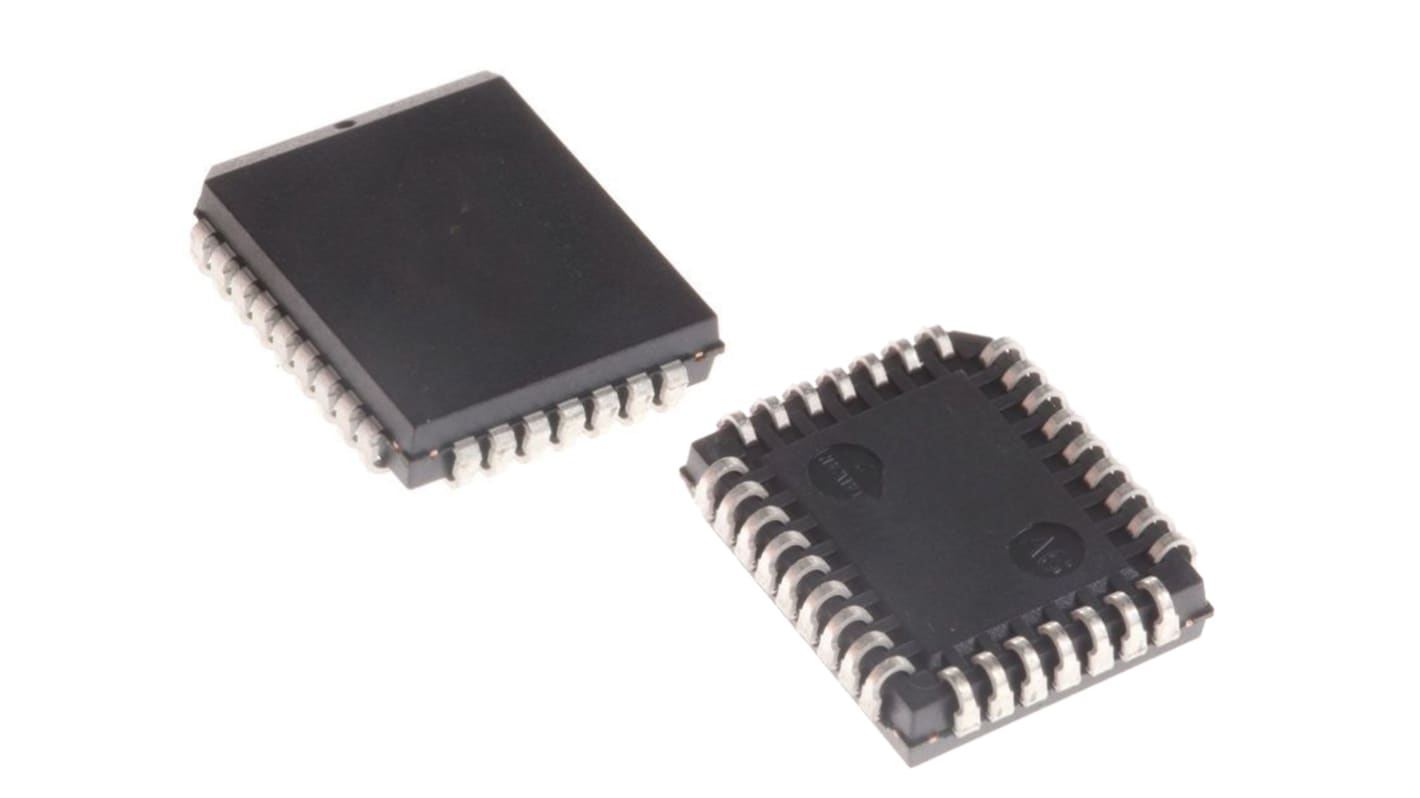

Renesas Electronics 4.6 MB FIFO Memory, 32-Pin PLCC, 7201LA15JGI
- RS 제품 번호:
- 217-3697P
- 제조사 부품 번호:
- 7201LA15JGI
- 제조업체:
- Renesas Electronics
대량 구매 할인 기용 가능
Subtotal 8 units (supplied in a tube)*
₩147,993.60
일시적 품절
- 2026년 8월 04일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 8 - 15 | ₩18,499.20 |
| 16 + | ₩18,104.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 217-3697P
- 제조사 부품 번호:
- 7201LA15JGI
- 제조업체:
- Renesas Electronics
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Renesas Electronics | |
| Memory Size | 4.6MB | |
| Product Type | FIFO Memory | |
| Organisation | 512k x 9 Bit | |
| Data Bus Width | 9bit | |
| Access Time | 15ns | |
| Mount Type | Surface | |
| Maximum Clock Frequency | 40MHz | |
| Minimum Supply Voltage | 4.5V | |
| Package Type | PLCC | |
| Timing Type | Asynchronous | |
| Pin Count | 32 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Bus Direction | Bi-Directional | |
| Maximum Operating Temperature | 85°C | |
| Height | 2.79mm | |
| Width | 11.4 mm | |
| Series | 7201L | |
| Standards/Approvals | No | |
| Length | 13.97mm | |
| Supply Current | 80mA | |
| Automotive Standard | No | |
| Number of Bits per Word | 9 | |
| Number of Words | 512K | |
| 모두 선택 | ||
|---|---|---|
브랜드 Renesas Electronics | ||
Memory Size 4.6MB | ||
Product Type FIFO Memory | ||
Organisation 512k x 9 Bit | ||
Data Bus Width 9bit | ||
Access Time 15ns | ||
Mount Type Surface | ||
Maximum Clock Frequency 40MHz | ||
Minimum Supply Voltage 4.5V | ||
Package Type PLCC | ||
Timing Type Asynchronous | ||
Pin Count 32 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Bus Direction Bi-Directional | ||
Maximum Operating Temperature 85°C | ||
Height 2.79mm | ||
Width 11.4 mm | ||
Series 7201L | ||
Standards/Approvals No | ||
Length 13.97mm | ||
Supply Current 80mA | ||
Automotive Standard No | ||
Number of Bits per Word 9 | ||
Number of Words 512K | ||
The Renesas Electronics 7201 series 512 x 9 dual-port FIFO memory that loads and empties data on a first-in/first-out basis. The device uses Full and Empty flags to prevent data overflow and underflow. It has 32 lead count and has PLCC package type.
Pin and functionally compatible with 720X family
Low power consumption
Ultra high speed - 12ns access time
Asynchronous and simultaneous read and write
Fully expandable by both word depth and/or bit width
Status Flags are Empty, Half-Full, Full
