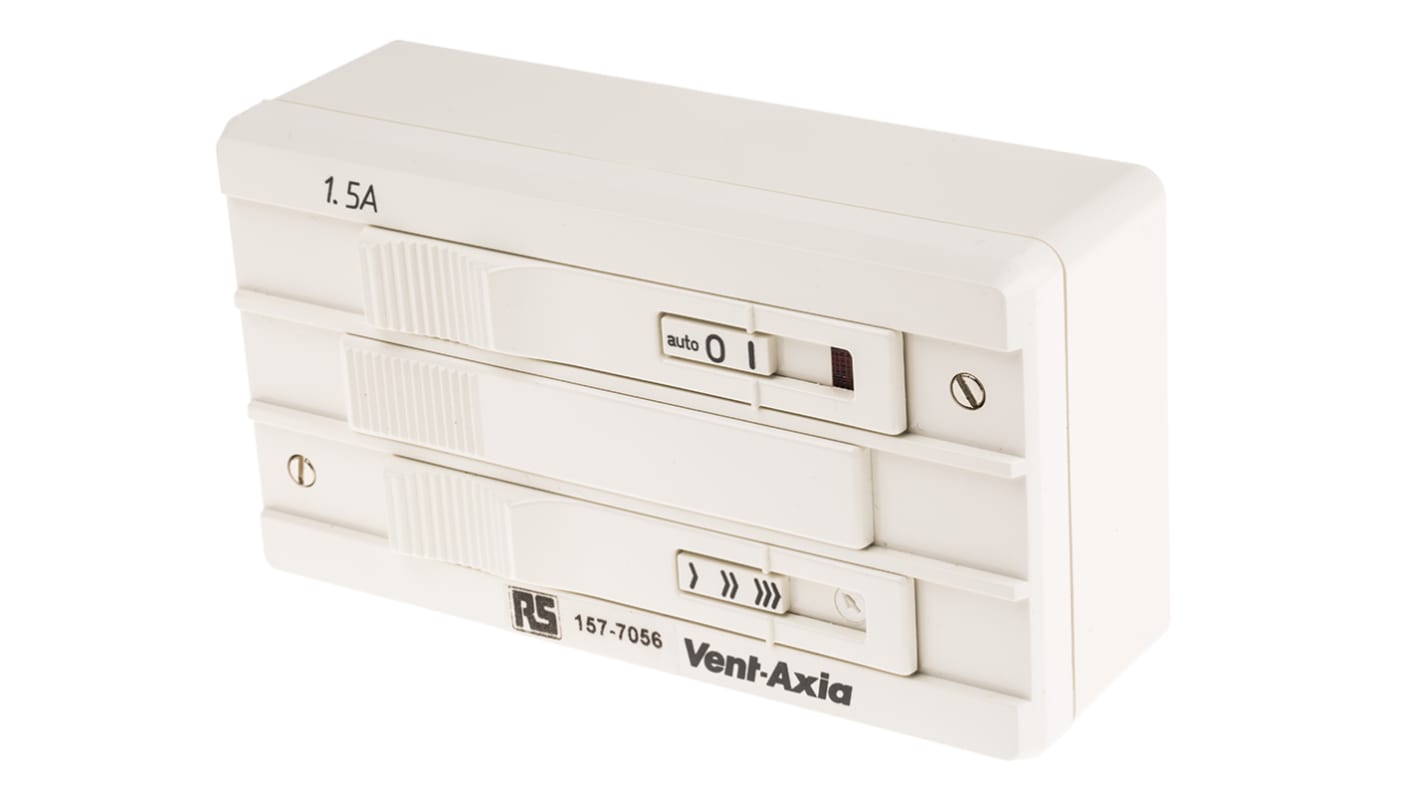

Vent-Axia T Series Fan Speed Controller for Use with Vent-Axia ACM Fans, 1.5 A Max 230 V ac, Infinitely Variable

모든 Fan Speed Controllers 열람하기

Subtotal (1 unit)*

₩258,199.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 5 개 단위 배송 준비 완료
  • 추가로 2026년 3월 11일 부터 16 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩258,199.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
157-7056
제조사 부품 번호:
W300310
제조업체:
Vent-Axia
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Vent-Axia

For Use With

Vent-Axia ACM Fans

Product Type

Fan Speed Controller

Speed Settings

Infinitely Variable

Maximum Current

1.5A

Frequency

50Hz

Maximum Supply Voltage

230V ac

Standards/Approvals

RoHS

Series

T

제외

COO (Country of Origin):
GB

Vent Axia ACM In-Line Mixed Flow Duct Fans


Vent Axia ACM in-line mixed flow duct fans specifically designed for rigid and flexible ducting offering 2½ times the pressure development of conventional axial fans.

Designed and manufactured in the UK

Supplied complete for installation

Can operate in both horizontal and vertical orientations

Capacitor start and run

Single direction two speed selectable motor, thermal overload protected

Timer versions available, see ACM100T and ACM150T (RS 892-8713 and 892-8717 respectively)

Removable motor core assembly

Rotating motor chassis assembly

Terminal box with 20mm cable entry

Infinitely variable electronic fan speed controller (radio suppressed in accordance with BS 800) for direct use or via an external humidistat, thermostat, timer or sensor (not supplied) is available separately. See Stock Number 157-7056 for controller.

230 Vac mains powered

IP44 rated

Aesthetically pleasing with wipe-clean polymer casing

Supplied with

Horizontal/vertical mounting bracket
