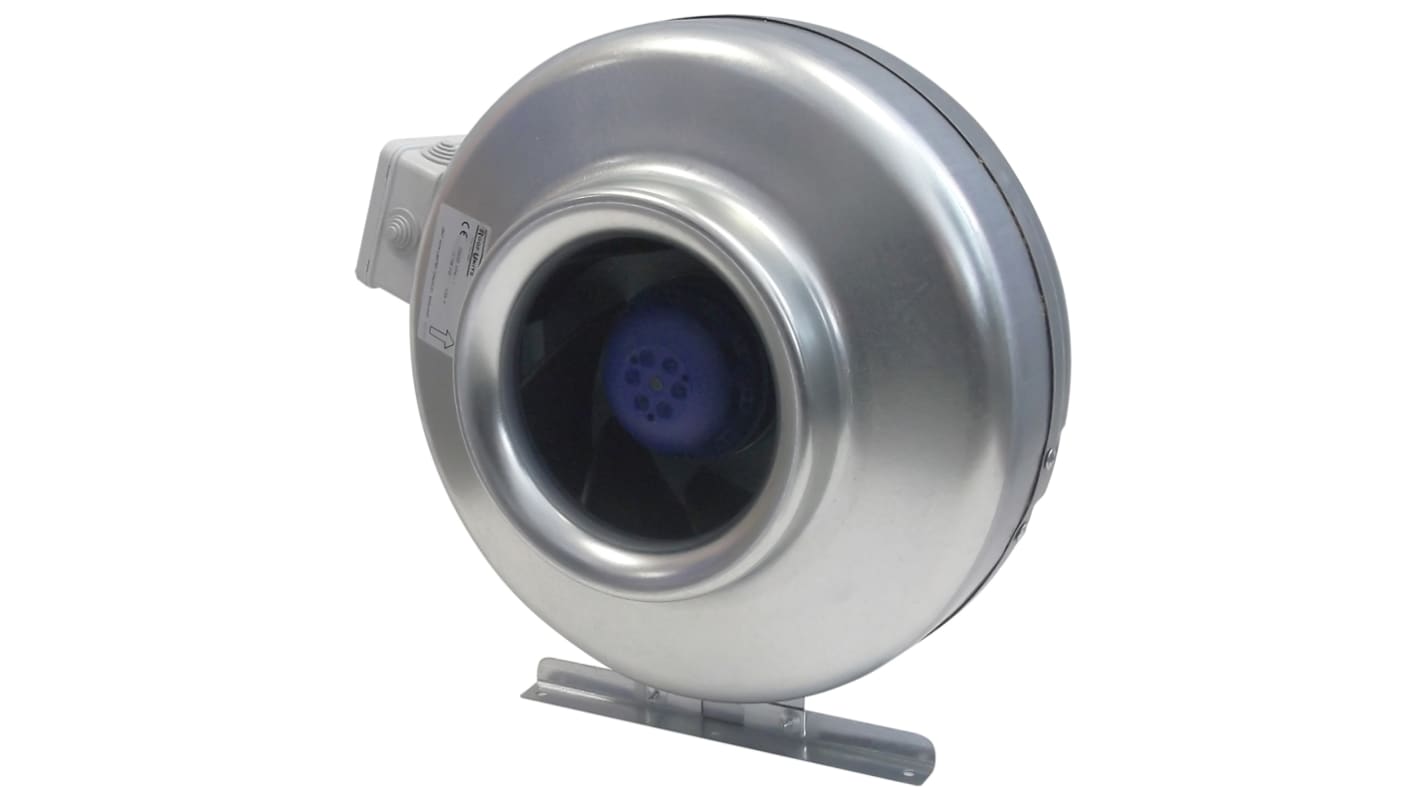

Vent-Axia SDX150 Euro Round Duct Fan, 536 m³/h, 38 dB, Four Sealing Rings, Weather Tight Fit, Duct Size 150 mm

The Vent-Axia EURO series in-line mounting centrifugal duct fan has an airflow rate of 536m³/h and a duct diameter of 150mm. It has a supply voltage rating ranging between 220V and 240V. It is designed around an efficient backwards-curved centrifugal impeller. The in-line fan casing is constructed from pressed steel and incorporates an aerodynamically designed airflow guide vane, ensuring maximum performance from the unit whilst maintaining minimum noise levels. It is enabled with an external rotor motor providing a compact design, high-performance and low sound levels. All models are supplied with a simple mounting foot for ease of installation. The impellers are manufactured by injection moulding of a polypropylene resin. The motor and impeller are factories matched and statically, as well as dynamically balanced in 2 planes.

Noise level of 35dB (A) at 2409rpm

IP44 rated
