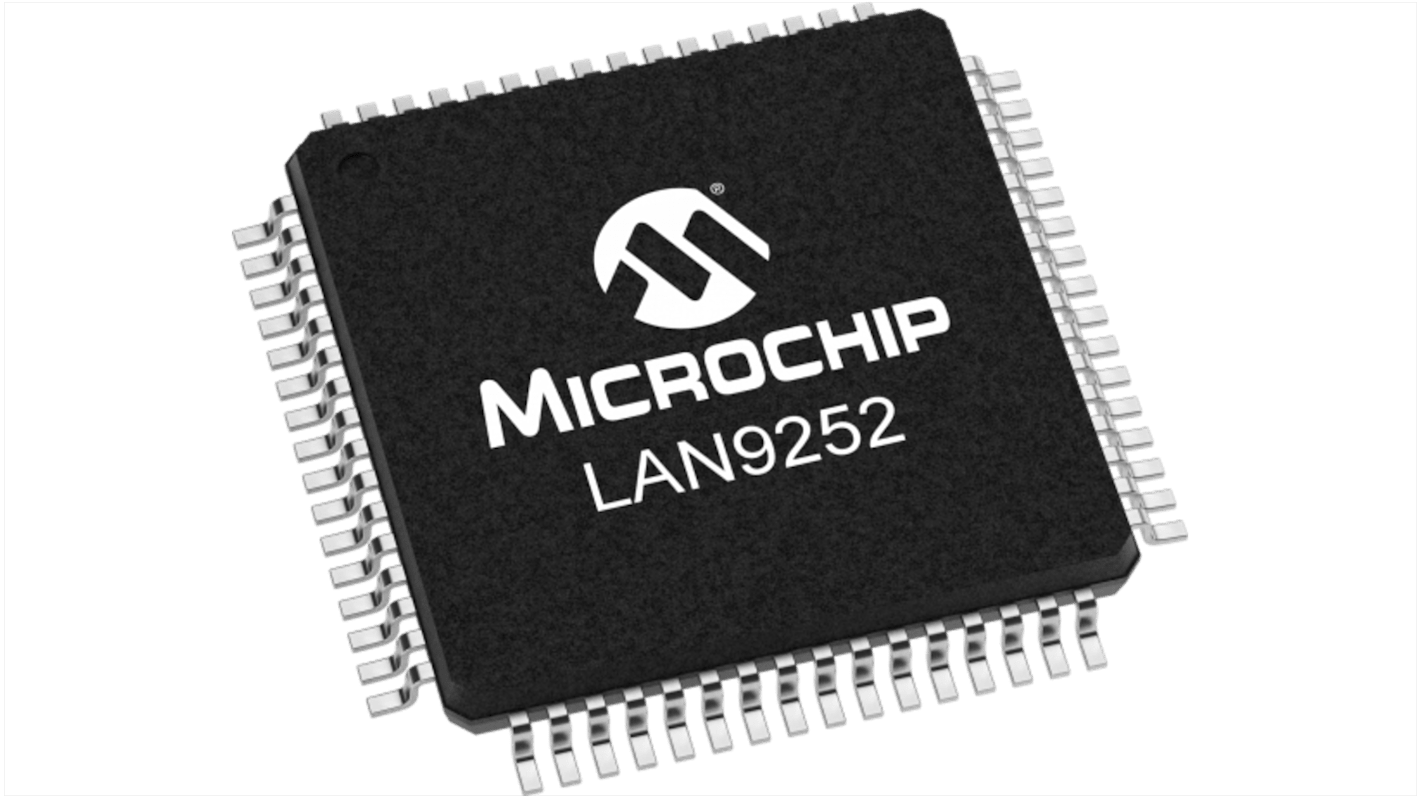

Microchip LAN9252/PT, Ethernet Controller, 3.3 V 100 Mbps SPI, 64-Pin 3.3 V

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Ethernet Interface Ics 열람하기
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
RS 제품 번호:
235-4641
제조사 부품 번호:
LAN9252/PT
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Product Type

Ethernet Controller

Maximum Data Rate

100Mbps

Communication Mode

Full Duplex/Half Duplex

Number of Transceivers

2

Loopback Mode

Internal

Interface Type

SPI

Standard Supported

IEEE 802.3u

Pin Count

64

Maximum Supply Voltage

3.3V

Minimum Operating Temperature

0°C

Maximum Operating Temperature

70°C

Standards/Approvals

No

Height

1.2mm

Length

10mm

Width

10 mm

Minimum Supply Voltage

3.3V

Automotive Standard

No

The Microchip LAN9252 series is a 2/3-port EtherCAT device controller with dual integrated Ethernet PHYs which each contain a full-duplex 100BASE-TX transceiver and support 100Mbps operation. The LAN9252 supports HP Auto-MDIX, allowing the use of direct connect or cross-over LAN cables. 100BASE-FX is supported via an external Fibre transceiver. This device provides system developers a cost-effective solution for realizing EtherCAT device solutions.

Dual Integrated Ethernet PHYs with HP Auto-MDIX

Cable diagnostic support

100 Base FX support via external transceiver

1.8V to 3.3V variable voltage I/O

Integrated 1.2V core regulator for single 3.3V operation

Low pin count, high integration and small body size package
