Microchip, 128-Pin PQFP, Switch IC, 3.3 V 100 Mbps 3.3V KSZ8895MQXI

Name: Microchip, 128-Pin PQFP, Switch IC, 3.3 V 100 Mbps 3.3V KSZ8895MQXI
Brand: Microchip
SKU: 177-3544
Availability: InStock

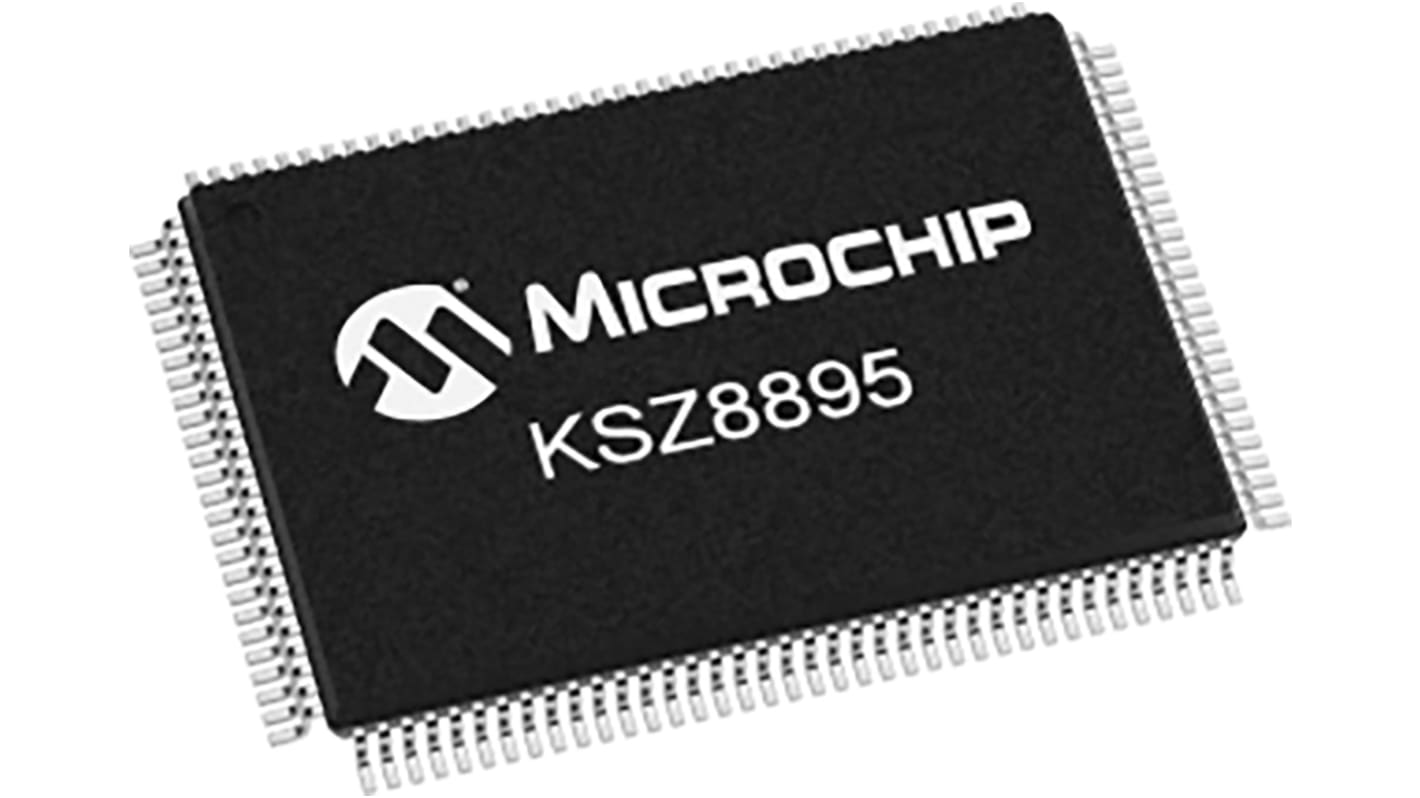

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 tray of 66 units)*

₩861,300.00

재고있음

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	Per Tray*
66 - 264	₩13,050.00	₩861,300.00
330 +	₩12,790.00	₩844,100.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Microchip
	Maximum Data Rate	100Mbps
	Product Type	Switch IC
	Sub Type	Switch
	Number of Ports	5
	Standard Supported	IEEE 802.1Q
	Mount Type	Surface
	Package Type	PQFP
	Maximum Supply Voltage	3.3V
	Pin Count	128
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Length	20mm
	Height	3.4mm
	Standards/Approvals	No
	Width	14mm
	Minimum Supply Voltage	3.3V
	Automotive Standard	No

	모두 선택
	브랜드 Microchip
	Maximum Data Rate 100Mbps
	Product Type Switch IC
	Sub Type Switch
	Number of Ports 5
	Standard Supported IEEE 802.1Q
	Mount Type Surface
	Package Type PQFP
	Maximum Supply Voltage 3.3V
	Pin Count 128
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Length 20mm
	Height 3.4mm
	Standards/Approvals No
	Width 14mm
	Minimum Supply Voltage 3.3V
	Automotive Standard No

The KSZ8895MQX/RQX/FQX/ML is a highly-integrated, Layer 2 managed, five-port switch with numerous features designed to reduce system cost.

Advanced Switch Features

VLAN support for up to 128 active VLAN groups (full-range 4096 of VLAN IDs)

Static MAC table supports up to 32 entries

VLAN ID tag/untag options, per port basis

Comprehensive Configuration Register Access

Serial management interface (MDC/MDIO) to all PHYs registers and SMI interface (MDC/MDIO) to all registers

High-speed SPI (up to 25MHz) and I2C master Interface to all internal registers

I/0 pins strapping and EEPROM to program selective registers in unmanaged switch mode

QoS/CoS Packet Prioritization Support

Per port, 802.1p and DiffServ-based

1/2/4-queue QoS prioritization selection

Programmable weighted fair queuing for ratio control

Integrated 5-Port 10/100 Ethernet Switch

New generation switch with five MACs and five PHYs

PHYs designed with patented enhanced mixed-signal technology
