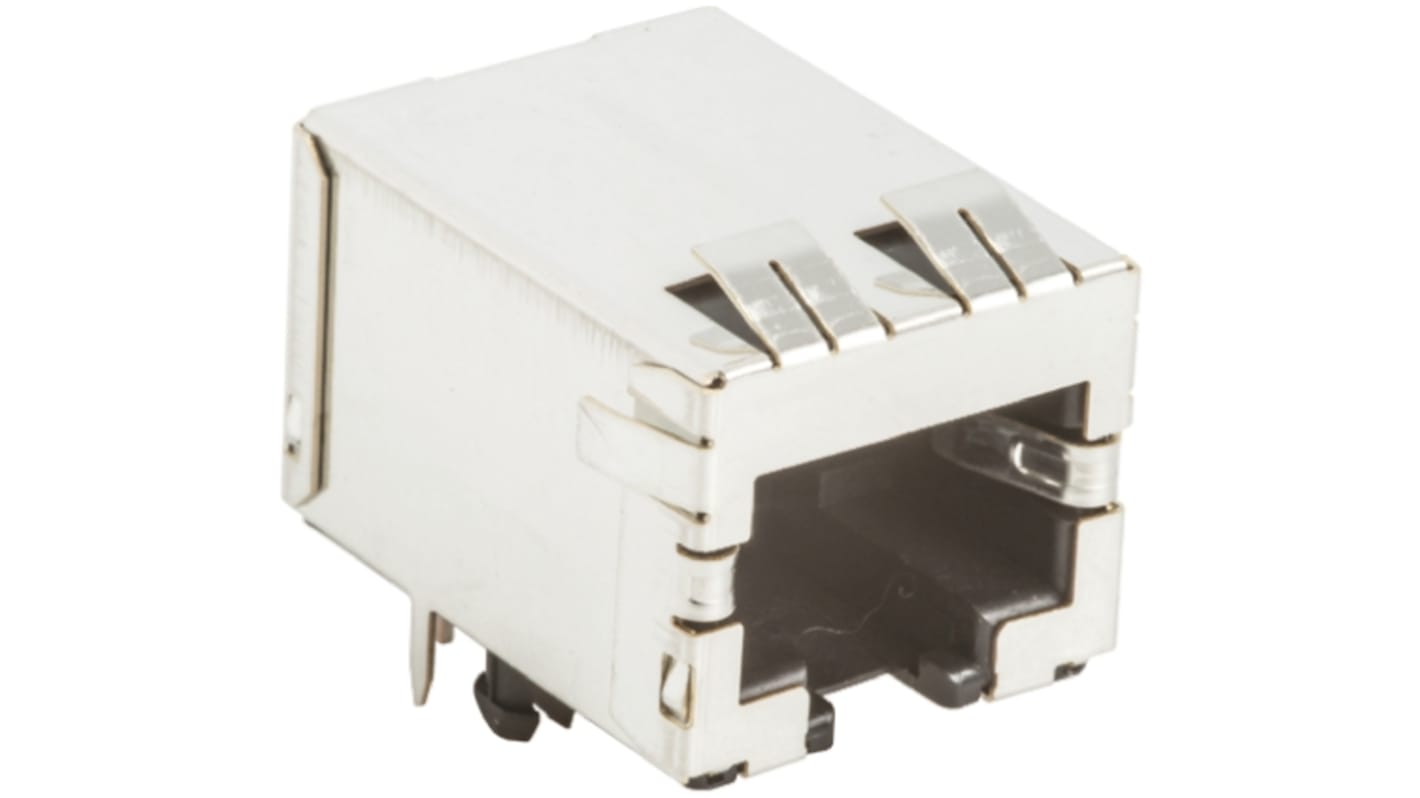

Hirose TM11R Series RJ45 Connector Female, Through Hole, Cat5 STP Shield Right Angle 1 Port 8 Way
- RS 제품 번호:
- 764-4795
- 제조사 부품 번호:
- TM11R-5N2-88(50)
- 제조업체:
- Hirose
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩8,911.50
일시적 품절
- 2026년 9월 28일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩8,911.50 |
| 10 - 24 | ₩8,638.50 |
| 25 - 49 | ₩8,365.50 |
| 50 - 99 | ₩8,268.00 |
| 100 + | ₩8,073.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 764-4795
- 제조사 부품 번호:
- TM11R-5N2-88(50)
- 제조업체:
- Hirose
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Hirose | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat5 | |
| Mount Type | Through Hole | |
| Number of Ports | 1 | |
| Number of Ways | 8 | |
| Connector Gender | Female | |
| Connector Type | Modular Jack | |
| Shield Type | STP | |
| Orientation | Right Angle | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 85°C | |
| Series | TM11R | |
| Width | 16.15mm | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| Length | 21.35mm | |
| Depth | 17.25mm | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| 모두 선택 | ||
|---|---|---|
브랜드 Hirose | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat5 | ||
Mount Type Through Hole | ||
Number of Ports 1 | ||
Number of Ways 8 | ||
Connector Gender Female | ||
Connector Type Modular Jack | ||
Shield Type STP | ||
Orientation Right Angle | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 85°C | ||
Series TM11R | ||
Width 16.15mm | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
Length 21.35mm | ||
Depth 17.25mm | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- JP
Hirose Modular Jack Connectors TM Series
A wide range of right angle, straight and sub miniature modular RJ jack connectors. Suitable for many applications such as network interfaces, High-speed LAN, Ethernet and telecommunications purposes. These jacks provide a versatile solution for the increasing demand of information flow and increasing bandwidth requirements. All available Hirose RJ jack connectors are durable and hard wearing and available as modules or individual PCB mount connectors. All models are highly reliable and excellent quality.
Features and Benefits
Quick effective Ethernet support;EMI Protected;Environmental requirements considered;FCC Standards;Optical indicators built in
