Bel-Stewart 940-SP Series RJ45 Connector Male, Cable Shielded Straight 1 Port 8 Way
- RS 제품 번호:
- 342-2087
- 제조사 부품 번호:
- 940-SP360808-A161
- 제조업체:
- Bel-Stewart
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 pack of 5 units)*
₩13,840.00
재고있음
- 945 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 - 70 | ₩2,768.00 | ₩13,840.00 |
| 75 - 120 | ₩2,684.00 | ₩13,420.00 |
| 125 + | ₩2,632.00 | ₩13,160.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 342-2087
- 제조사 부품 번호:
- 940-SP360808-A161
- 제조업체:
- Bel-Stewart
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Bel-Stewart | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| Number of Ports | 1 | |
| Mount Type | Cable | |
| Number of Ways | 8 | |
| Connector Gender | Male | |
| Connector Type | Modular Jack | |
| Shield Type | Shielded | |
| Orientation | Straight | |
| Termination Type | Solder | |
| Hazardous Area Certification | No | |
| Depth | 26.57mm | |
| Series | 940-SP | |
| Width | 26.57mm | |
| Standards/Approvals | No | |
| Length | 13.72mm | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| 모두 선택 | ||
|---|---|---|
브랜드 Bel-Stewart | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
Number of Ports 1 | ||
Mount Type Cable | ||
Number of Ways 8 | ||
Connector Gender Male | ||
Connector Type Modular Jack | ||
Shield Type Shielded | ||
Orientation Straight | ||
Termination Type Solder | ||
Hazardous Area Certification No | ||
Depth 26.57mm | ||
Series 940-SP | ||
Width 26.57mm | ||
Standards/Approvals No | ||
Length 13.72mm | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- US

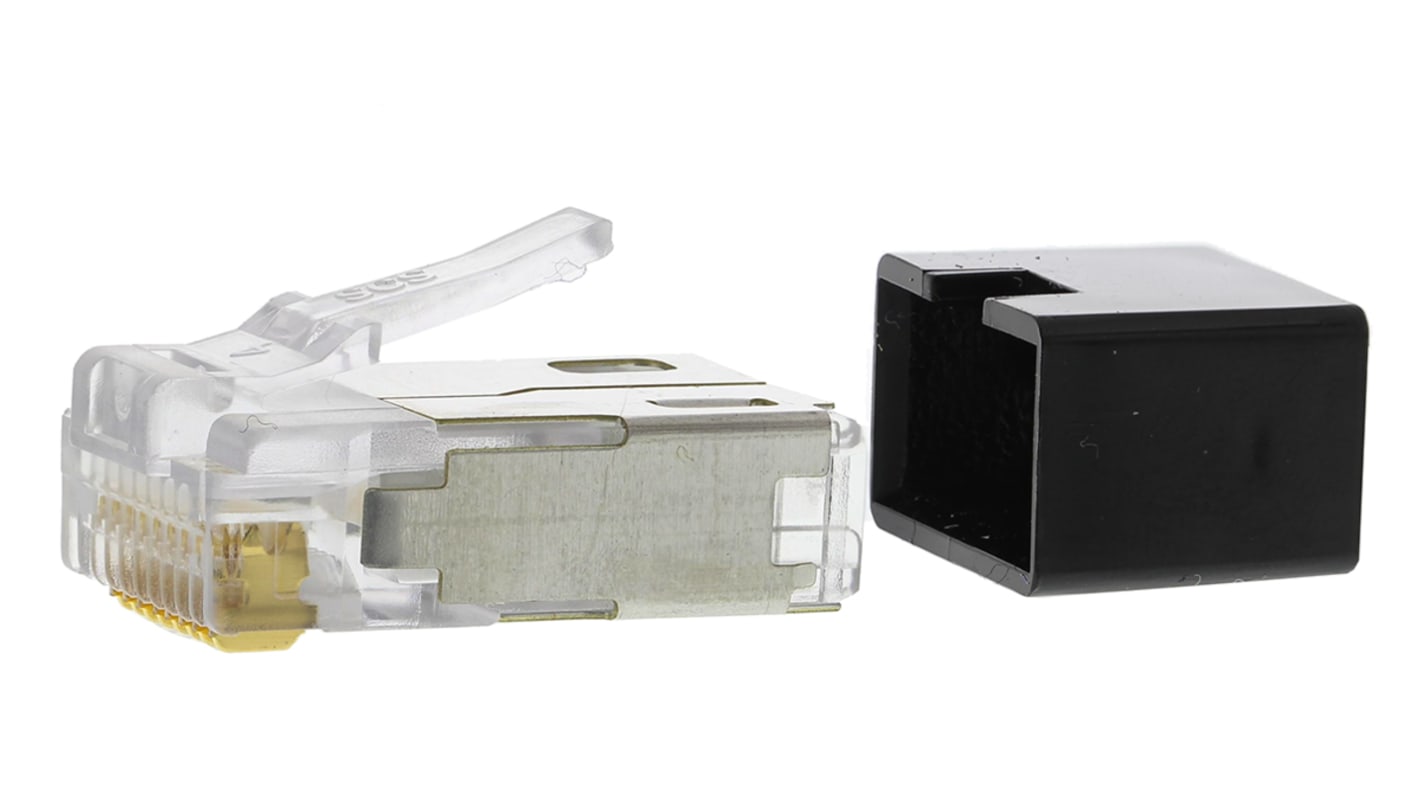

Bel-Stewart RJ45 Modular Plug
The Bel-Stewart male RJ45 modular plug is shielded flat oval cable mount connector. It is designed for easy assembly and termination to FTP (foil/shielded) cabling. This connector has a 1-port 8P/8C and modular plug connector type. It has an electrical rating of 150V and 1.5A. It includes a management bar to facilitate wire insertion and strain relief.
Features and Benefits
Polycarbonate is housing material
Contact material is phosphor bronze with gold plating
Shield material is tin plated brass
Termination style is IDC
Cable length is 6.6mm
Certifications
UL 94 V-0 approved
