Bel-Stewart 940-SP Series RJ45 Connector Male, Cable Unshielded Straight 1 Port 8 Way
- RS 제품 번호:
- 477-321
- 제조사 부품 번호:
- 940SP3088R-A133
- 제조업체:
- Bel-Stewart
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 pack of 10 units)*
₩13,640.00
재고있음
- 추가로 2026년 7월 01일 부터 3,470 개 단위 배송
- 추가로 2026년 11월 04일 부터 3,000 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 10 - 140 | ₩1,364.00 | ₩13,640.00 |
| 150 - 740 | ₩1,326.00 | ₩13,260.00 |
| 750 + | ₩1,300.00 | ₩13,000.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 477-321
- 제조사 부품 번호:
- 940SP3088R-A133
- 제조업체:
- Bel-Stewart
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Bel-Stewart | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| Mount Type | Cable | |
| Number of Ports | 1 | |
| Number of Ways | 8 | |
| Connector Gender | Male | |
| Connector Type | Modular Jack | |
| Shield Type | Unshielded | |
| Orientation | Straight | |
| Hazardous Area Certification | No | |
| Standards/Approvals | No | |
| Length | 11.68mm | |
| Width | 22.48mm | |
| Series | 940-SP | |
| Depth | 22.48mm | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| 모두 선택 | ||
|---|---|---|
브랜드 Bel-Stewart | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
Mount Type Cable | ||
Number of Ports 1 | ||
Number of Ways 8 | ||
Connector Gender Male | ||
Connector Type Modular Jack | ||
Shield Type Unshielded | ||
Orientation Straight | ||
Hazardous Area Certification No | ||
Standards/Approvals No | ||
Length 11.68mm | ||
Width 22.48mm | ||
Series 940-SP | ||
Depth 22.48mm | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||

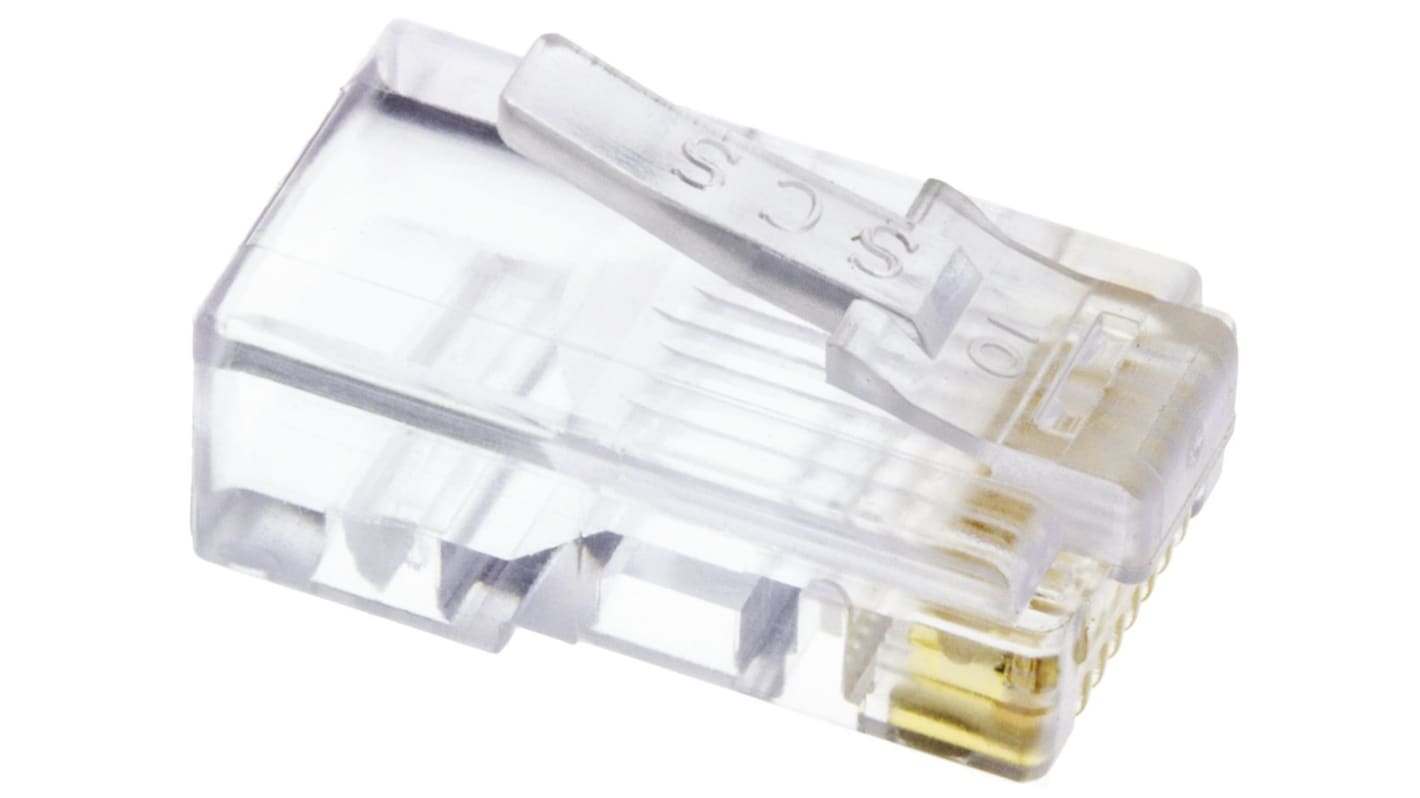

Bel-Stewart RJ45 Modular Plug
The Bel-Stewart male RJ45 modular plug is unshielded 8-position cable mount connector and is used to accept a wide range of data and communication cables for both solid and stranded wires ranging between 28AWG to 24AWG. This connector has a 1-port 8P/8C and modular plug connector type. It has an electrical rating of 150V and 1.5A.
Features and Benefits
Polycarbonate is housing material
Contact material is phosphor bronze with gold plating
Termination type is IDC
Certifications
UL 94 V-0 approved
