모두 선택	제품 정보	값
	브랜드	Nexperia
	Mounting Type	Surface Mount
	Package Type	TSSOP
	Pin Count	16
	Dimensions	5.1 x 4.5 x 0.95mm
	Maximum Operating Supply Voltage	11 V
	Maximum Operating Temperature	+125 °C
	Automotive Standard	AEC-Q100
	Minimum Operating Supply Voltage	-0.5 V
	Minimum Operating Temperature	-40 °C

	모두 선택
	브랜드 Nexperia
	Mounting Type Surface Mount
	Package Type TSSOP
	Pin Count 16
	Dimensions 5.1 x 4.5 x 0.95mm
	Maximum Operating Supply Voltage 11 V
	Maximum Operating Temperature +125 °C
	Automotive Standard AEC-Q100
	Minimum Operating Supply Voltage -0.5 V
	Minimum Operating Temperature -40 °C

Dual 4-channel analog multiplexer/demultiplexer, The 74HC4052-Q100, 74HCT4052-Q100 is a high-speed Si-gate CMOS device and is pin compatible with Low-power Schottky TTL (LSTTL). The device is specified in compliance with JEDEC standard no. 7A. The 74HC4052-Q100, 74HCT4052-Q100 is a dual 4-channel analog multiplexer/demultiplexer with common select logic. Each multiplexer has four independent inputs/outputs (pins nY0 to nY3) and a common input/output (pin nZ).

Automotive product qualification in accordance with AEC-Q100 (Grade 1)
Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Wide analog input voltage range from -5 V to +5 V
Low ON resistance:
Typical ’break before make’ built-in
Analog multiplexing and demultiplexing
Digital multiplexing and demultiplexing
Signal gating

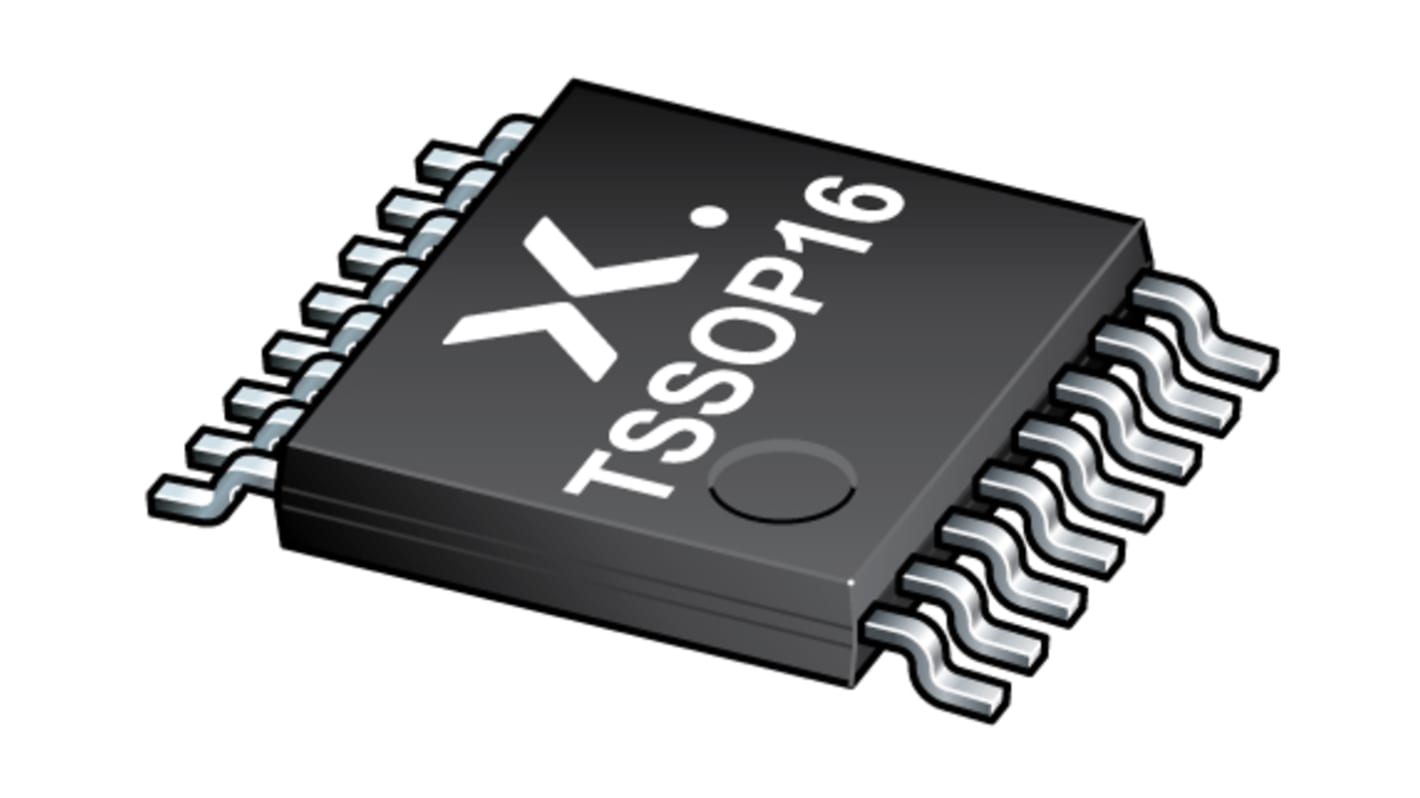

Nexperia 74HC4052PW-Q100,11, Decoder, 16-Pin TSSOP

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
