BACO BACO Series Turn to Reset Emergency Stop Push Button, 22 mm Cutout, IP66
- RS 제품 번호:
- 769-3678
- Distrelec 제품 번호:
- 136-05-079
- 제조사 부품 번호:
- L22ER01
- 제조업체:
- BACO
Subtotal (1 unit)*
₩75,260.00
일시적 품절
- 2026년 9월 03일 부터 473 개 단위 배송
- 추가로 2026년 10월 22일 부터 160 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩75,260.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 769-3678
- Distrelec 제품 번호:
- 136-05-079
- 제조사 부품 번호:
- L22ER01
- 제조업체:
- BACO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | BACO | |
| Product Type | Emergency Stop Push Button | |
| Cutout Diameter | 22mm | |
| Push Button Actuation | Turn to Reset | |
| Series | BACO | |
| Illuminated | No | |
| IP Rating | IP66 | |
| Colour | Red | |
| Head Style | Mushroom | |
| Head Diameter | 22mm | |
| Hazardous Area Certification | No | |
| Standards/Approvals | NEMA ICS-5, UL 508, EN 60947-5-1, EN 60947-5-5, EN 418, CSA, EN 60947-1, EN 60947-5-4, UR/UL, IEC 60947-1, CE, CCC | |
| Push Button Material | Plastic | |
| 모두 선택 | ||
|---|---|---|
브랜드 BACO | ||
Product Type Emergency Stop Push Button | ||
Cutout Diameter 22mm | ||
Push Button Actuation Turn to Reset | ||
Series BACO | ||
Illuminated No | ||
IP Rating IP66 | ||
Colour Red | ||
Head Style Mushroom | ||
Head Diameter 22mm | ||
Hazardous Area Certification No | ||
Standards/Approvals NEMA ICS-5, UL 508, EN 60947-5-1, EN 60947-5-5, EN 418, CSA, EN 60947-1, EN 60947-5-4, UR/UL, IEC 60947-1, CE, CCC | ||
Push Button Material Plastic | ||
- COO (Country of Origin):
- FR

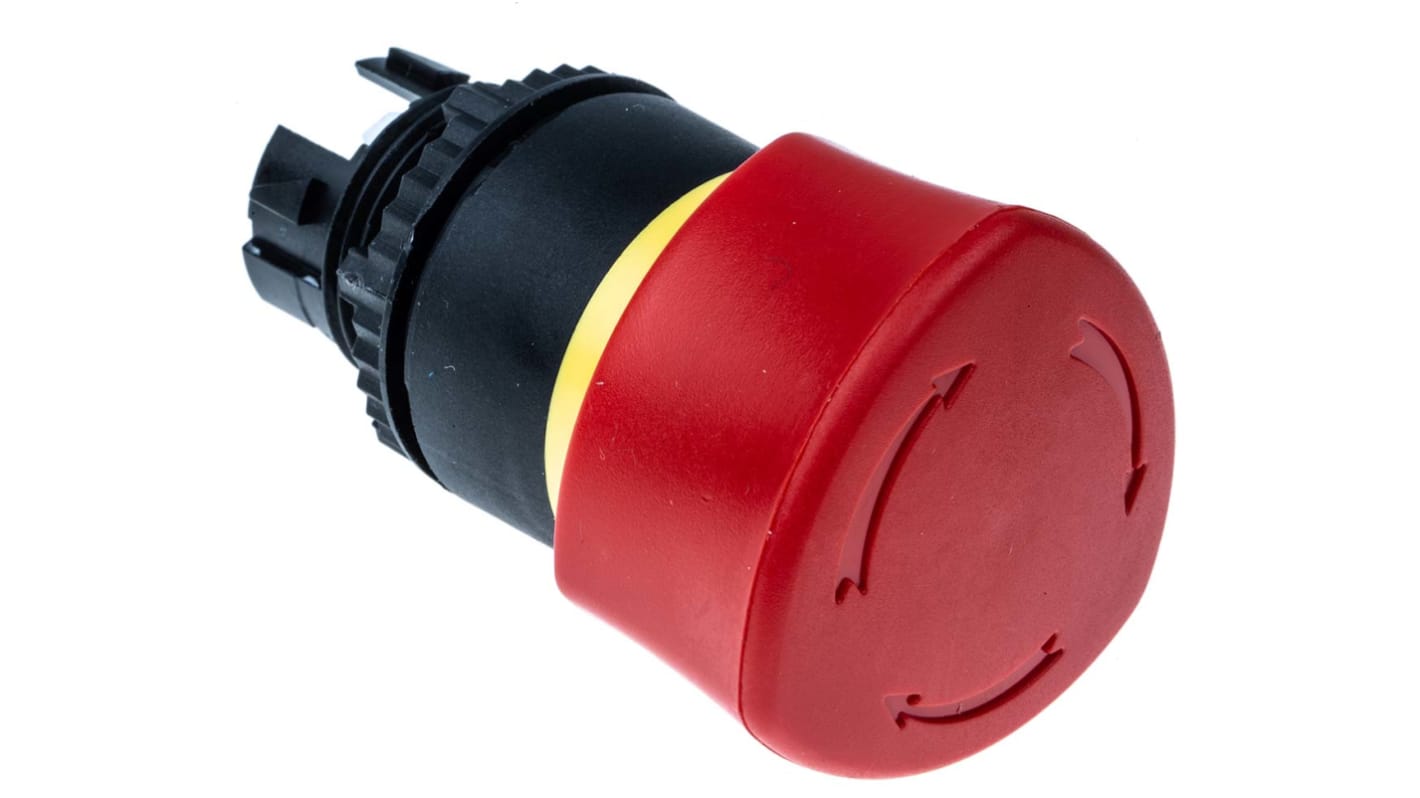

Emergency Stop Push Button Heads
Non illuminated emergency stop push button heads that conform to emergency stop standards IEC 609947-5 / ISO 13850. The head position of the push button is visible from the side with the yellow collar.
To be used with a clip and electrical contact blocks
Push turn to reset
Stay put
Plastic black bezel
Equipped with locking ring
IP66 ingress protection
Baco Push Buttons
All actuators have matt chromed bezels and ingress protection to IP65 as standard. Contact blocks, LED modules and transformers can all be purchased separately.
