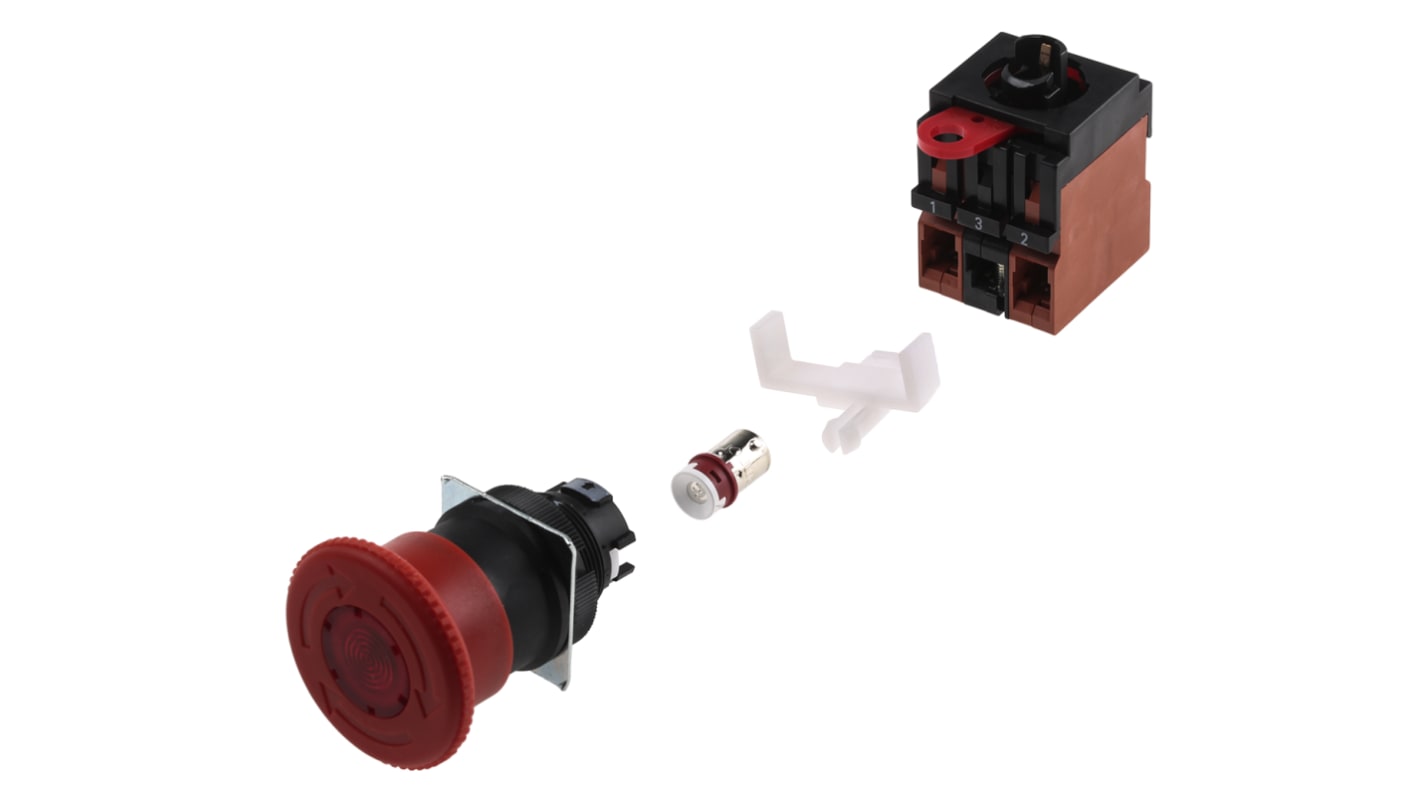

Omron A22E Series Twist Release Illuminated Emergency Stop Push Button, Panel Mount, 2NC, IP65
- RS 제품 번호:
- 757-9095
- 제조사 부품 번호:
- A22EL-M-24A-02
- 제조업체:
- Omron
Subtotal (1 unit)*
₩146,376.80
재고있음
- 추가로 2025년 12월 08일 부터 24 개 단위 배송
- 추가로 2025년 12월 15일 부터 15 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩146,376.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 757-9095
- 제조사 부품 번호:
- A22EL-M-24A-02
- 제조업체:
- Omron
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Omron | |
| Mounting Type | Panel Mount | |
| Contact Configuration | 2NC | |
| Push Button Actuation | Twist Release | |
| Illuminated | Yes | |
| Series | A22E | |
| IP Rating | IP65 | |
| Colour | Red | |
| Auxiliary Contacts | NO | |
| Pole and Throw Configuration | DPST | |
| Push Button Material | Plastic | |
| 모두 선택 | ||
|---|---|---|
브랜드 Omron | ||
Mounting Type Panel Mount | ||
Contact Configuration 2NC | ||
Push Button Actuation Twist Release | ||
Illuminated Yes | ||
Series A22E | ||
IP Rating IP65 | ||
Colour Red | ||
Auxiliary Contacts NO | ||
Pole and Throw Configuration DPST | ||
Push Button Material Plastic | ||
- COO (Country of Origin):
- JP
A22E Series Emergency Stop Switch
The A22E series emergency stop switch is supplied as a complete or sub-assembled unit and can be installed in a 22mm or 25mm diameter hole. The switch unit can easily be mounted without the use of tools.
Direct opening mechanism to open the circuit when the contact welds
Safety lock mechanism prevents operating errors
Easy mounting and removal of Switch Blocks using a lever
Mount three Switch Units in series to improve wiring efficiency (with non-lighted Switch Units, three Units can be mounted for multiple contacts)
Finger protection mechanism on Switch Unit provided as a standard feature
Install using either round, or forked crimp terminals
Non-lighted models IP65 (oil-resistant), lighted models IP65
A lock plate is provided as a standard feature to ensure that the control box and switch are not easily separated
Safety lock mechanism prevents operating errors
Easy mounting and removal of Switch Blocks using a lever
Mount three Switch Units in series to improve wiring efficiency (with non-lighted Switch Units, three Units can be mounted for multiple contacts)
Finger protection mechanism on Switch Unit provided as a standard feature
Install using either round, or forked crimp terminals
Non-lighted models IP65 (oil-resistant), lighted models IP65
A lock plate is provided as a standard feature to ensure that the control box and switch are not easily separated
Completely Assembled Models
Switch with Integrated Control Box
Operation Units only
Switch Units only
Accessories
Standards
UL508 C22.2 No.14, EN60947-5-1 & EN60947-5-5 (certified direct opening mechanism), GB14048.5, EN60947-5-1.
Approvals
UL, cUL, TUV, CCC.
Emergency Stop Pushbutton
