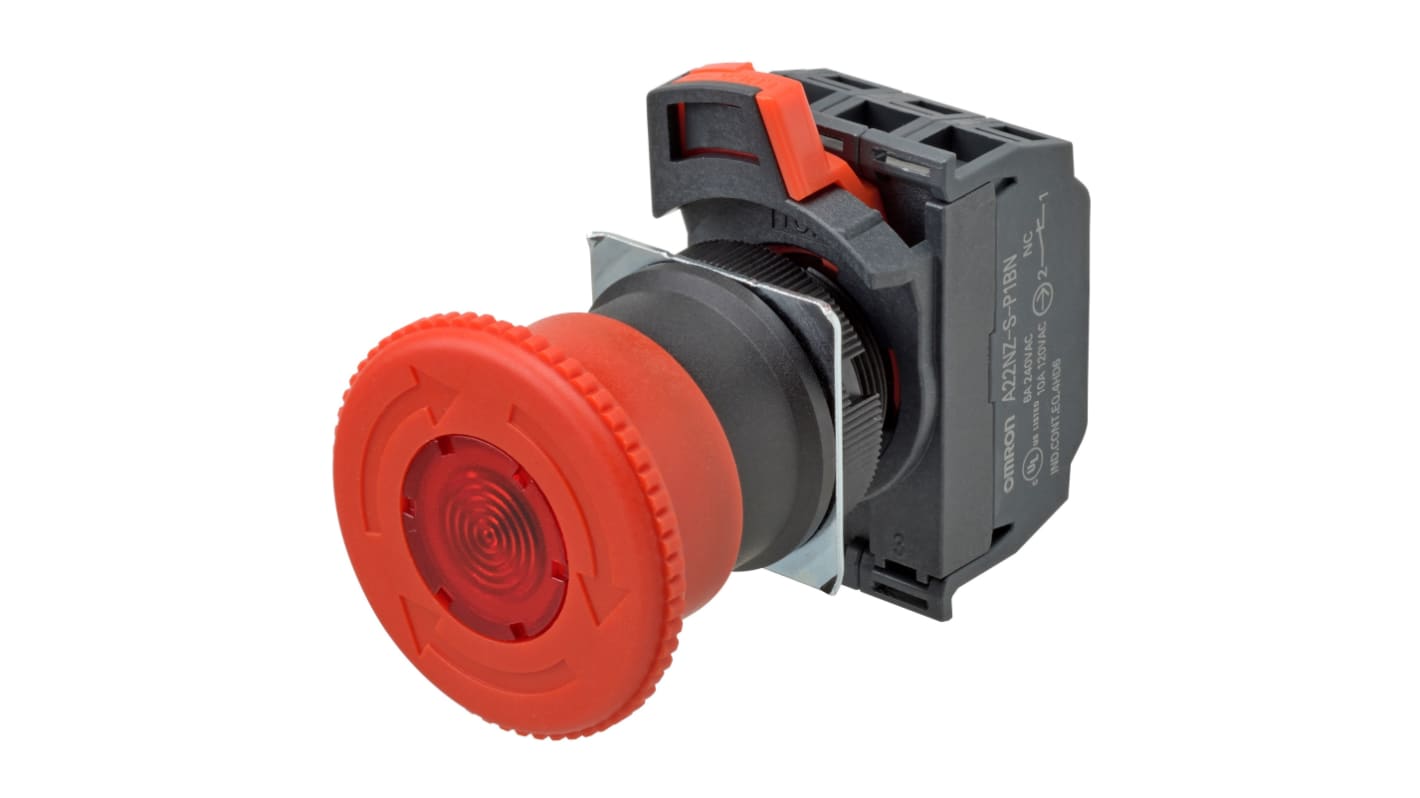

Omron A22NE Series Turn to Reset Illuminated Emergency Stop Push Button, Built-In, 22 mm Cutout, 1 NO/1 NC, IP65

RS 제품 번호:: 268-8379
제조사 부품 번호:: A22NE-M-P102-C
제조업체:: Omron

Omron A22NE Series Turn to Reset Illuminated Emergency Stop Push Button, Built-In, 22 mm Cutout, 1 NO/1 NC, IP65

Subtotal (1 unit)*

₩149,980.00

2 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩149,980.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 268-8379
제조사 부품 번호:: A22NE-M-P102-C
제조업체:: Omron

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Omron
	Product Type	Emergency Stop Push Button
	Mount Type	Built-In
	Cutout Diameter	22mm
	Contact Configuration	1 NO/1 NC
	Push Button Actuation	Turn to Reset
	Illuminated	Yes
	Series	A22NE
	IP Rating	IP65
	Colour	Red
	Terminal Type	Push-in
	Contact Current	10A
	Contact AC Voltage	24V ac
	Contact DC Voltage	240V
	Number of Auxiliary Contacts	2
	Switch Configuration	1 NO/1 NC
	Standards/Approvals	RoHS, REACH, CE, TUV, cULus, CCC
	Head Diameter	40mm
	Width	40mm

	모두 선택
	브랜드 Omron
	Product Type Emergency Stop Push Button
	Mount Type Built-In
	Cutout Diameter 22mm
	Contact Configuration 1 NO/1 NC
	Push Button Actuation Turn to Reset
	Illuminated Yes
	Series A22NE
	IP Rating IP65
	Colour Red
	Terminal Type Push-in
	Contact Current 10A
	Contact AC Voltage 24V ac
	Contact DC Voltage 240V
	Number of Auxiliary Contacts 2
	Switch Configuration 1 NO/1 NC
	Standards/Approvals RoHS, REACH, CE, TUV, cULus, CCC
	Head Diameter 40mm
	Width 40mm

COO (Country of Origin):: JP

Omron A22NE Series Emergency Stop Push Button, Red, 22mm Cutout Diameter - A22NE-M-P102-C

This emergency stop push button provides a means to halt machinery and processes quickly via a panel-mounted actuator. It is designed for control panels where an illuminated, tamper-resistant stop is required and where a reset by twist action is standard. The device suits industrial automation and electrical control environments that need a robust, visible manual shut-off.

Features & Benefits

• 1NO/1NC contact arrangement provides both make and break signalling
• 10A contact rating supports moderate load switching requirements
• Turn-to-reset actuation prevents accidental restart after activation
• IP65 ingress protection allows use in dusty or water-spray conditions
• Push-In Plus terminals simplify wiring and reduce installation time
• Illuminated 40mm head enhances visibility in low light

Applications

• Suitable for machine tool emergency stop circuits in workshops
• Ideal for conveyor system safety shutdowns in manufacturing
• Used with control panels requiring illuminated status indicators
• Can be used for assembly-line isolation where quick reset control is needed
• Suitable for retrofit safety upgrades in electrical enclosures

What voltages can be switched when integrating this device into control circuits?

It can switch AC control voltages at 24V and DC circuits up to 240V within its contact ratings.

How are electrical connections MADE and secured in panel installations?

Connections use Push-In Plus terminals, allowing conductor insertion without screws for a firm electrical contact.

How does the operator reset the device after an emergency stop?

The actuator requires a deliberate turn-to-reset action to return to the normal operating position.

What head size is required for panel cut-out compatibility?

The unit has a 40mm head diameter and fits into a 22mm panel cut-out preparation.
