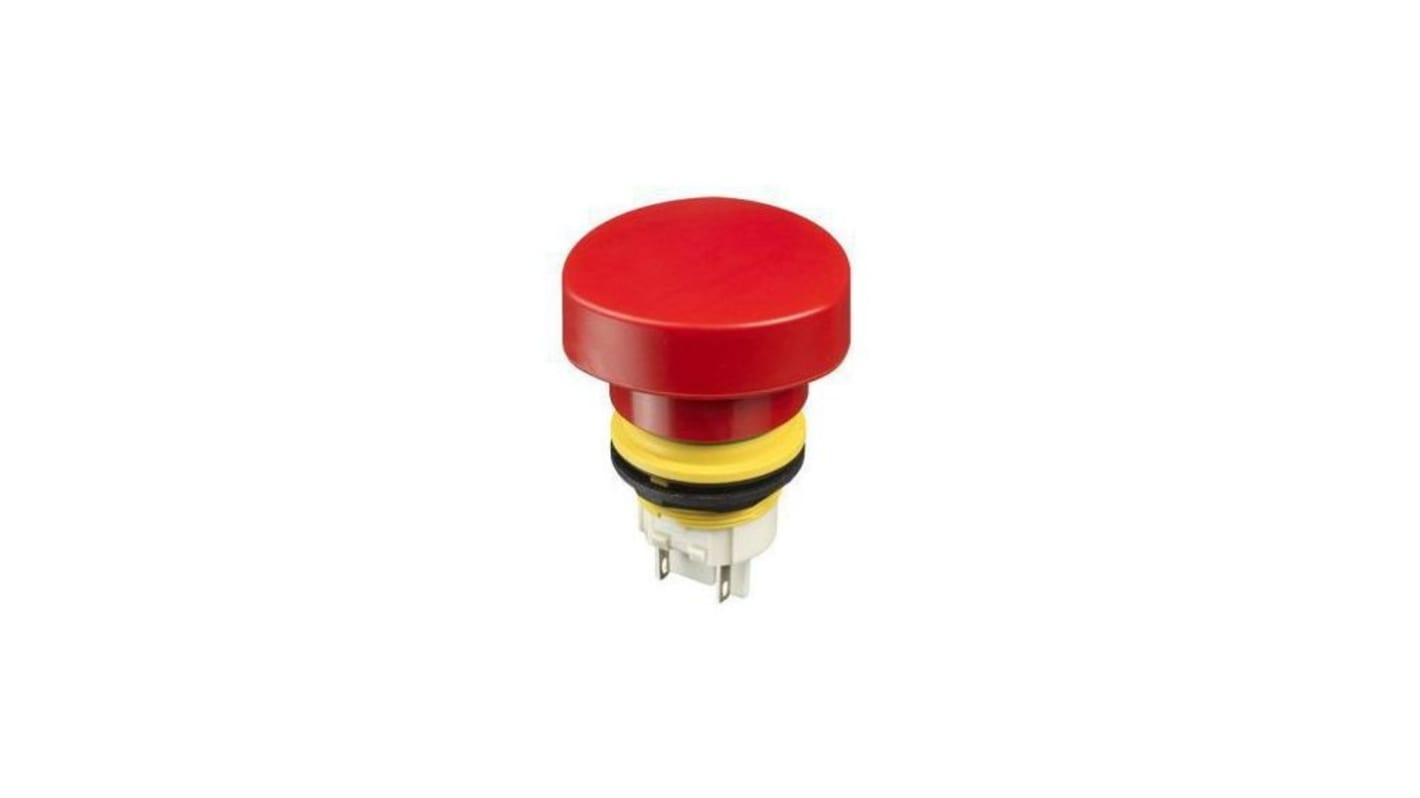

APEM EC Series Emergency Stop Push Button, 22 mm Cutout, SPNC, IP65
- RS 제품 번호:
- 287-3687
- 제조사 부품 번호:
- EC-BTT-F-002-A
- 제조업체:
- APEM
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩50,660.00
재고있음
- 206 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩50,660.00 |
| 10 - 24 | ₩48,640.00 |
| 25 - 49 | ₩46,760.00 |
| 50 - 99 | ₩45,020.00 |
| 100 + | ₩43,440.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 287-3687
- 제조사 부품 번호:
- EC-BTT-F-002-A
- 제조업체:
- APEM
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | APEM | |
| Product Type | Emergency Stop Push Button | |
| Cutout Diameter | 22mm | |
| Contact Configuration | SPNC | |
| Housing Material | Polyamide 66 | |
| Illuminated | No | |
| Series | EC | |
| IP Rating | IP65 | |
| Terminal Type | Tab | |
| Contact Current | 3A | |
| Contact DC Voltage | 250V dc | |
| Contact AC Voltage | 250V ac | |
| Switch Configuration | 1P | |
| Standards/Approvals | EN 60947-5-1, EN 60947-5-5 | |
| Hazardous Area Certification | No | |
| Push Button Material | Polyamide 66 | |
| 모두 선택 | ||
|---|---|---|
브랜드 APEM | ||
Product Type Emergency Stop Push Button | ||
Cutout Diameter 22mm | ||
Contact Configuration SPNC | ||
Housing Material Polyamide 66 | ||
Illuminated No | ||
Series EC | ||
IP Rating IP65 | ||
Terminal Type Tab | ||
Contact Current 3A | ||
Contact DC Voltage 250V dc | ||
Contact AC Voltage 250V ac | ||
Switch Configuration 1P | ||
Standards/Approvals EN 60947-5-1, EN 60947-5-5 | ||
Hazardous Area Certification No | ||
Push Button Material Polyamide 66 | ||
- COO (Country of Origin):
- FR
The APEM compact emergency switch features a panel cut-out of Ø22 mm, making it suitable for various applications that require a reliable and easy-to-mount emergency stop switch. With its distinctive features such as the integrated connector and front sealing for IP65 protection, this switch is approved according to EN 60947-5-1 and EN 60947-5-5 standards, ensuring high quality and performance.
Compact emergency stop switch with Ø22 mm bushing
Integrated connector for easy mounting
Front sealing for IP65 protection
Approved according to EN 60947-5-1 and EN 60947-5-5 standards
Electrical life of 6,050 cycles
Dielectric strength of 2,500 Vrms 50 Hz min. between terminals
Operating temperature -35 °C to +70 °C (-31 °F to +158 °F)
