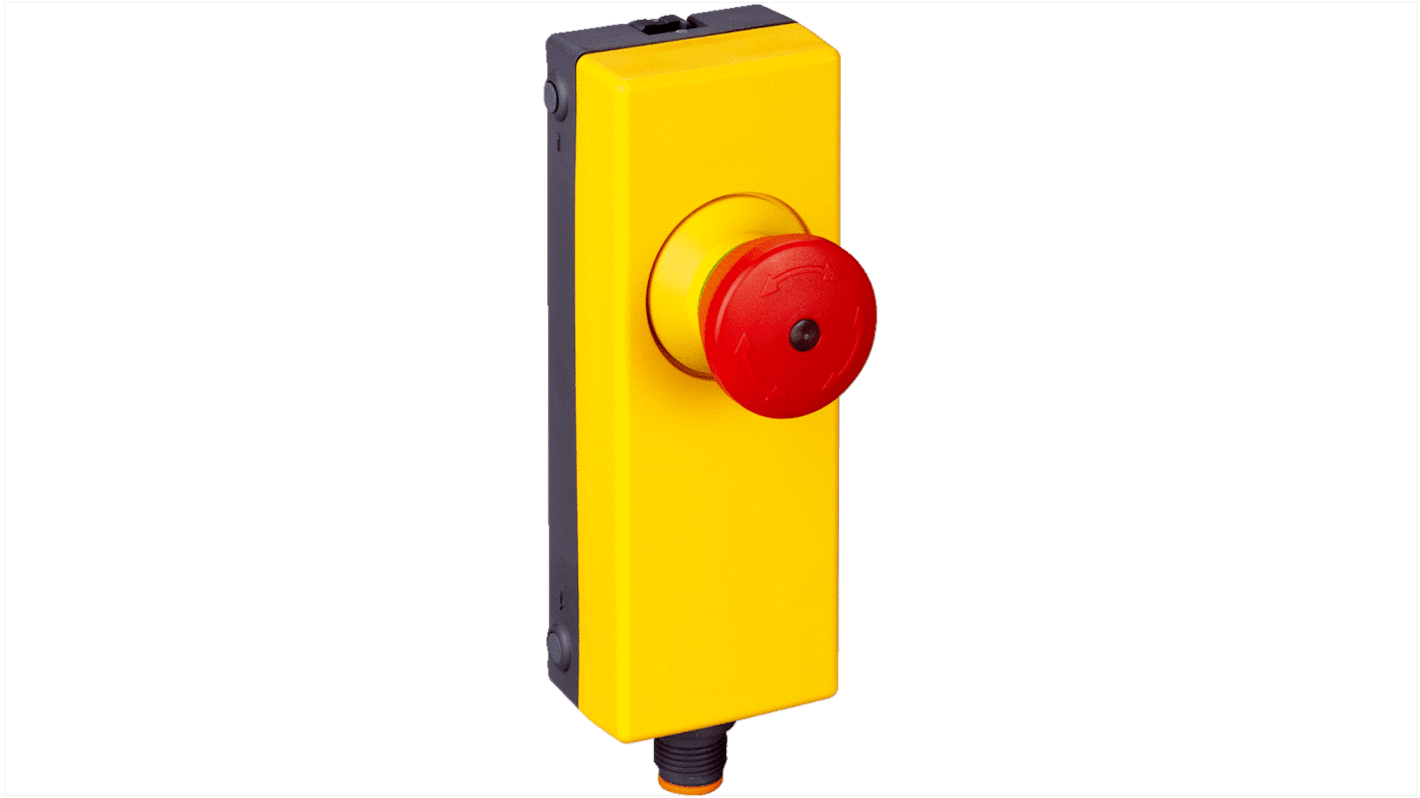

SICK ES21 Series Emergency Stop Push Button, 2 NC, IP65
- RS 제품 번호:
- 285-1293
- 제조사 부품 번호:
- ES11-SA2B8 / 6051328
- 제조업체:
- SICK
Subtotal (1 unit)*
₩281,304.40
재고있음
- 6 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩281,304.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 285-1293
- 제조사 부품 번호:
- ES11-SA2B8 / 6051328
- 제조업체:
- SICK
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SICK | |
| Product Type | Emergency Stop Push Button | |
| Contact Configuration | 2 NC | |
| Housing Material | Polybutylene Terephthalate | |
| Series | ES21 | |
| Illuminated | No | |
| IP Rating | IP65 | |
| Colour | Red | |
| Contact AC Voltage | 30V ac | |
| Contact DC Voltage | 30V dc | |
| Contact Current | 100mA | |
| Depth | 52mm | |
| Switch Configuration | Slow Action | |
| Length | 52mm | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| Width | 40 mm | |
| Push Button Material | Polybutylene Terephthalate | |
| Safety Contacts | 2 NC | |
| 모두 선택 | ||
|---|---|---|
브랜드 SICK | ||
Product Type Emergency Stop Push Button | ||
Contact Configuration 2 NC | ||
Housing Material Polybutylene Terephthalate | ||
Series ES21 | ||
Illuminated No | ||
IP Rating IP65 | ||
Colour Red | ||
Contact AC Voltage 30V ac | ||
Contact DC Voltage 30V dc | ||
Contact Current 100mA | ||
Depth 52mm | ||
Switch Configuration Slow Action | ||
Length 52mm | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
Width 40 mm | ||
Push Button Material Polybutylene Terephthalate | ||
Safety Contacts 2 NC | ||
- COO (Country of Origin):
- DE
Overview
ES11 emergency stop pushbuttons are essential in automated machines and plants. They make it possible for someone to stop a machine or a system immediately in case of an emergency. Depending on the variant, the emergency stop pushbuttons are also equipped with reset pushbuttons.
Reset pushbuttons are used to manually reset the protective device and thus restore the machine to a safe state for restart.
At a glance
Slim plastic housing with quick disconnect mounting clip
Available as an emergency stop pushbutton or as a combined emergency stop/reset unit
Emergency stop pushbutton with optional LED illumination
Illuminated reset pushbutton
Flexi Loop-compatible M12 plug connector
Your Benefit
Easy mounting with snap-in connection
Quick commissioning and rapid replacement thanks to M12 plug connector
User friendly status display
With Flexi Loop: safe series connection including diagnostics with easier wiring
Applications
Fields of applications
Safe stop function for machinery and systems
For machines where people are present in the hazardous area without triggering the protective device (for variants with reset pushbutton)
Prevention of unexpected machine start (for varia
