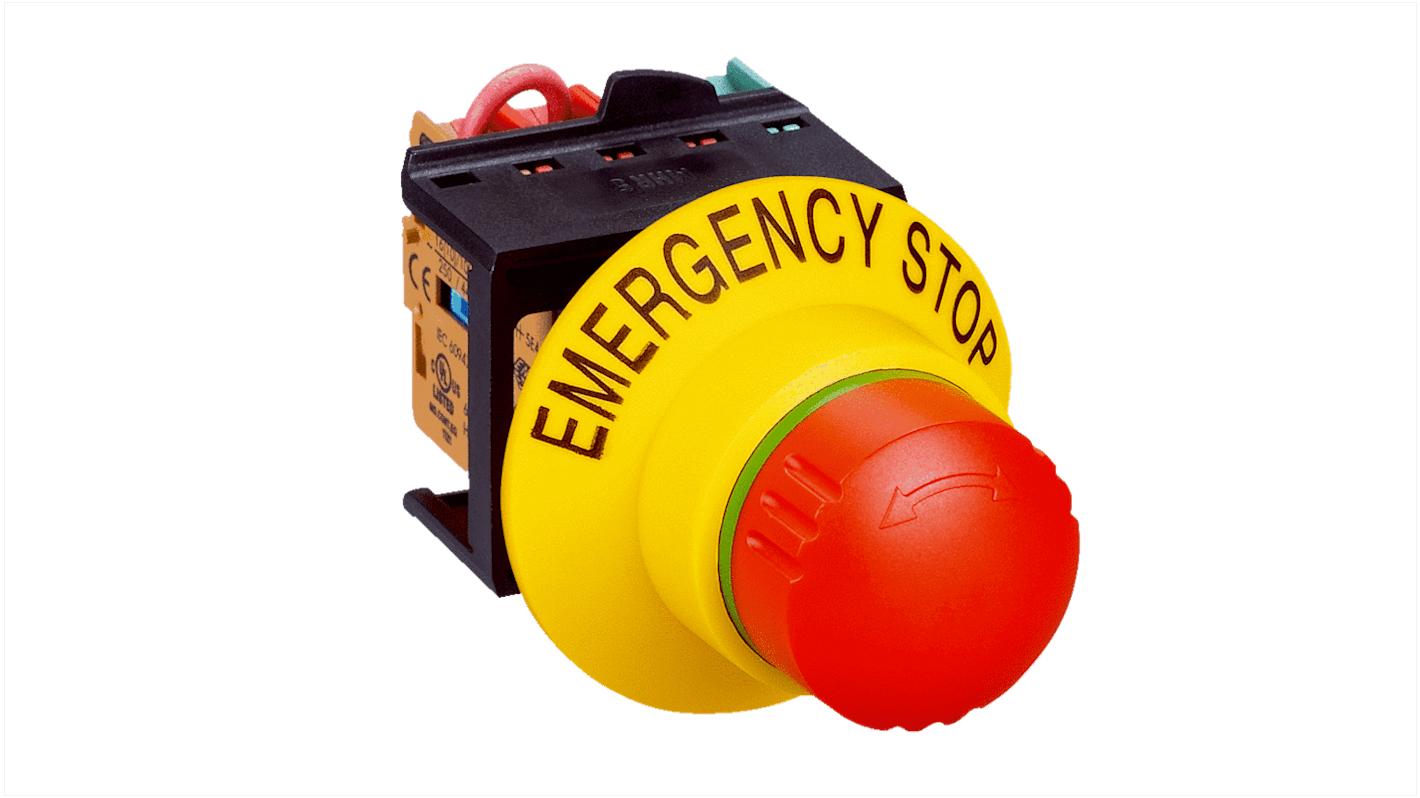

SICK ES21 Series Emergency Stop Push Button, Panel Mount, 1 NO/2 NC, IP65

RS 제품 번호:: 285-1308
제조사 부품 번호:: ES21-SB14G1 / 6053944
제조업체:: SICK

Subtotal (1 unit)*

₩121,340.00

제조사가 재고 비축중

2027년 1월 07일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩121,340.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 285-1308
제조사 부품 번호:: ES21-SB14G1 / 6053944
제조업체:: SICK

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	SICK
	Product Type	Emergency Stop Push Button
	Mount Type	Panel Mount
	Contact Configuration	1 NO/2 NC
	Housing Material	Plastic
	Series	ES21
	Illuminated	No
	IP Rating	IP65
	Colour	Red
	Terminal Type	Strip
	Contact AC Voltage	250V ac
	Contact Current	3A
	Contact DC Voltage	24V dc
	Depth	31.5mm
	Switch Configuration	Slow Action
	Standards/Approvals	China RoHS, cULus, EN, EU DoC, IEC, TPC, UKCA
	Hazardous Area Certification	No
	Length	31.5mm
	Width	55mm
	Push Button Material	Plastic

	모두 선택
	브랜드 SICK
	Product Type Emergency Stop Push Button
	Mount Type Panel Mount
	Contact Configuration 1 NO/2 NC
	Housing Material Plastic
	Series ES21
	Illuminated No
	IP Rating IP65
	Colour Red
	Terminal Type Strip
	Contact AC Voltage 250V ac
	Contact Current 3A
	Contact DC Voltage 24V dc
	Depth 31.5mm
	Switch Configuration Slow Action
	Standards/Approvals China RoHS, cULus, EN, EU DoC, IEC, TPC, UKCA
	Hazardous Area Certification No
	Length 31.5mm
	Width 55mm
	Push Button Material Plastic

COO (Country of Origin):: DE

SICK ES21 Series Emergency Stop Push Button, 3A Contact Current, IP65 - ES21-SB14G1 / 6053944

This emergency stop push button provides a manually operated safety command for industrial panels, designed to interrupt machine operation when required. It is a panel-mount device with a plastic housing and a non-illuminated actuator. The unit offers positive-action contacts configured to support one normally open and two normally closed circuits, and is suitable for applications requiring a slow-action switching element and individual wiring diagnostics.

Features and Benefits:

• 3A contact current for robust switching capacity
• IP65 enclosure rating for protection against dust and jets
• Slow-action switching element for controlled circuit interruption
• 1NO/2NC contact configuration for safety circuit monitoring
• Strip Terminal connection for up to 2.5mm² conductor cross-section

Applications

• Suitable for panel-mount emergency stop push button installations
• Ideal for machinery requiring series wiring diagnostics avoidance
• Used with control panels needing non-illuminated emergency signalling
• Can be used for AC-15/DC-13 utilisation category switching operations
• Used for environments needing protection class II electrical separation

What type of release mechanism does it use?

It features a rotary release enabling deliberate reset after actuation.

What temperature range can it operate within?

The device functions between -30°C and +70°C.

What connection method is provided for wiring?

It uses screw contact Terminals on a Terminal strip for conductor attachment.

What certifications support its regulatory acceptance?

It holds China RoHS, cULus, EN, EU and UK declarations of conformity.

How many mechanical operations is the switching element rated for?

The B10d rating corresponds to 2.5x10^5 switching cycles.
