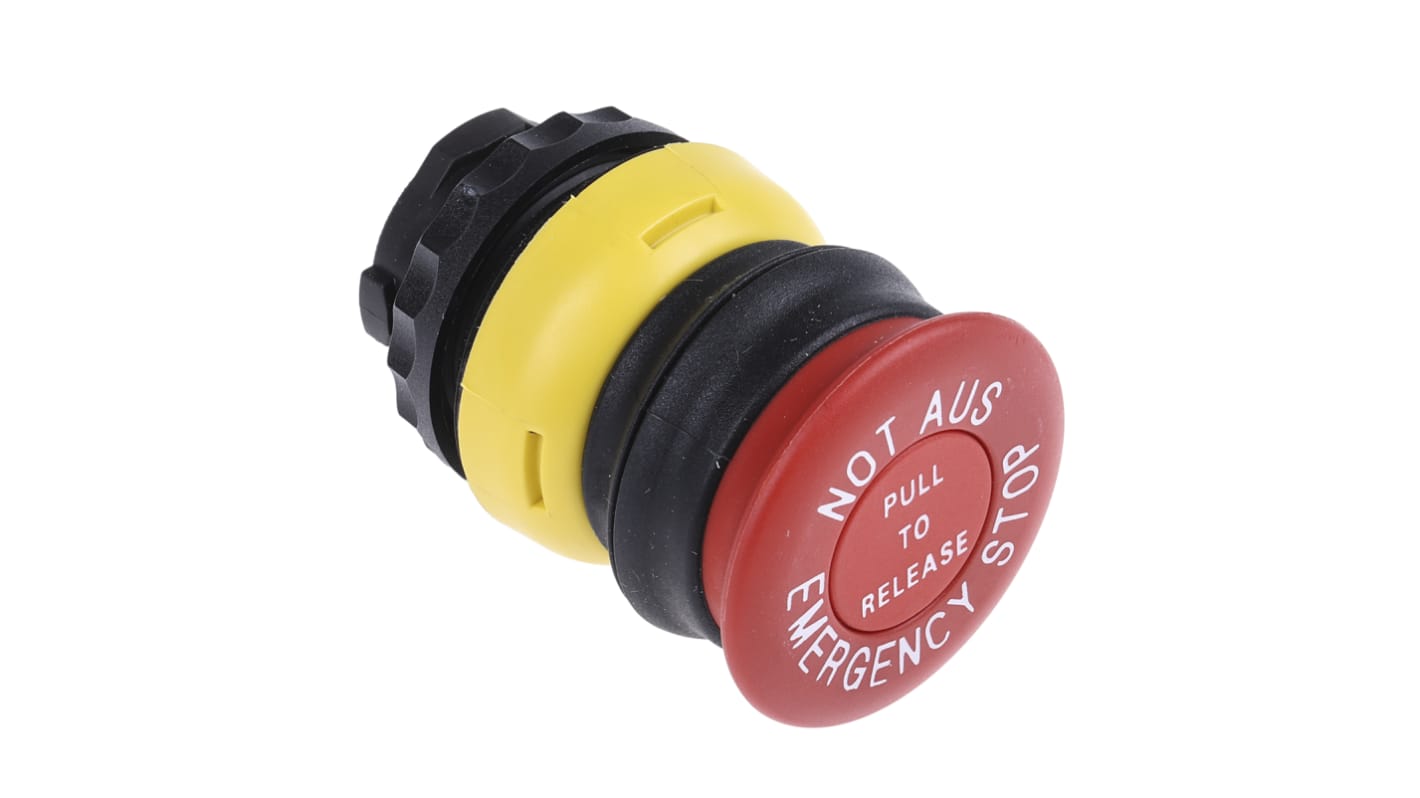

Bartec ComEx Series Momentary Emergency Stop Push Button, 30 mm Cutout, IP67, IP66
- RS 제품 번호:
- 244-3421
- 제조사 부품 번호:
- 05-0003-000800
- 제조업체:
- Bartec
Subtotal (1 unit)*
₩91,845.00
재고있음
- 76 개 단위 배송 준비 완료
- 추가로 2026년 6월 18일 부터 24 개 단위 배송
- 추가로 2026년 7월 02일 부터 12 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩91,845.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 244-3421
- 제조사 부품 번호:
- 05-0003-000800
- 제조업체:
- Bartec
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Bartec | |
| Product Type | Emergency Stop Push Button | |
| Cutout Diameter | 30mm | |
| Push Button Actuation | Momentary | |
| Housing Material | Thermoplastic | |
| Series | ComEx | |
| IP Rating | IP67, IP66 | |
| Colour | Red, Green, Blue, Yellow, White | |
| Terminal Type | Screw | |
| Head Style | Mushroom Push Button | |
| Head Diameter | 30mm | |
| Hazardous Area Certification | ATEX | |
| Standards/Approvals | DIN EN 60204-1: 2007, DIN EN 60947-5-1: 2005, CML 13 ATEX 3010 U, EN IEC 60079-0, IECEx CML 14.0005 U | |
| Push Button Material | Thermoplastic | |
| 모두 선택 | ||
|---|---|---|
브랜드 Bartec | ||
Product Type Emergency Stop Push Button | ||
Cutout Diameter 30mm | ||
Push Button Actuation Momentary | ||
Housing Material Thermoplastic | ||
Series ComEx | ||
IP Rating IP67, IP66 | ||
Colour Red, Green, Blue, Yellow, White | ||
Terminal Type Screw | ||
Head Style Mushroom Push Button | ||
Head Diameter 30mm | ||
Hazardous Area Certification ATEX | ||
Standards/Approvals DIN EN 60204-1: 2007, DIN EN 60947-5-1: 2005, CML 13 ATEX 3010 U, EN IEC 60079-0, IECEx CML 14.0005 U | ||
Push Button Material Thermoplastic | ||
제외
Switch Actuators
Hazardous Area Actuators & Contact Blocks
Panel mounting, with a wide range of switch contact arrangements and elements including; selector switches, key switches, standard pushbuttons and an emergency stop pushbutton. The actuators and lens units require a 30.5mm mounting hole. Ingress protection is to IP66 and they are component-approved in their own right. Switch and lamp modules include three metres of encapsulated cable. Switch modules include a wipe clean action and are rated up to 230Vac/16A (circuit type AC-12). The N/C contact has a positive break action.,The electronic circuitry of each lamp module self configures to allow the lamps to be used over a wide range of ac and dc voltages.,A simple cam arrangement on the modules provides a rapid method for the fitting of the actuators.
Note
Selection of coloured discs are included with stock no. 244-3415; red, yellow, white, green and blue
2443421 is a pull to release latching emergency stop push button
2443421 is a pull to release latching emergency stop push button
Group and Category
II 2GD EEx e II
Certificate No.
PTB 00 ATEX 3114U
