EAO Twist Release Emergency Stop Push Button, Panel Mount, 22.3 mm Cutout, DPST, IP67, IP66, IP65
- RS 제품 번호:
- 333-939
- 제조사 부품 번호:
- 84-6240.0040
- 제조업체:
- EAO
Subtotal (1 unit)*
₩60,976.50
재고있음
- 8 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩60,976.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 333-939
- 제조사 부품 번호:
- 84-6240.0040
- 제조업체:
- EAO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | EAO | |
| Product Type | Emergency Stop Push Button | |
| Mount Type | Panel Mount | |
| Cutout Diameter | 22.3mm | |
| Contact Configuration | DPST | |
| Housing Material | Plastic | |
| Push Button Actuation | Twist Release | |
| Illuminated | No | |
| IP Rating | IP67, IP66, IP65 | |
| Colour | Grey | |
| Terminal Type | 300 mm Flat Ribbon Cable | |
| Contact AC Voltage | 250V ac | |
| Head Style | Mushroom Shaped | |
| Contact DC Voltage | 250V dc | |
| Contact Current | 315A | |
| Switch Configuration | DPST | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | EN IEC 60947-1, EN IEC 60947-5 | |
| Head Diameter | 32mm | |
| Push Button Material | Plastic | |
| 모두 선택 | ||
|---|---|---|
브랜드 EAO | ||
Product Type Emergency Stop Push Button | ||
Mount Type Panel Mount | ||
Cutout Diameter 22.3mm | ||
Contact Configuration DPST | ||
Housing Material Plastic | ||
Push Button Actuation Twist Release | ||
Illuminated No | ||
IP Rating IP67, IP66, IP65 | ||
Colour Grey | ||
Terminal Type 300 mm Flat Ribbon Cable | ||
Contact AC Voltage 250V ac | ||
Head Style Mushroom Shaped | ||
Contact DC Voltage 250V dc | ||
Contact Current 315A | ||
Switch Configuration DPST | ||
Hazardous Area Certification NO | ||
Standards/Approvals EN IEC 60947-1, EN IEC 60947-5 | ||
Head Diameter 32mm | ||
Push Button Material Plastic | ||
제외

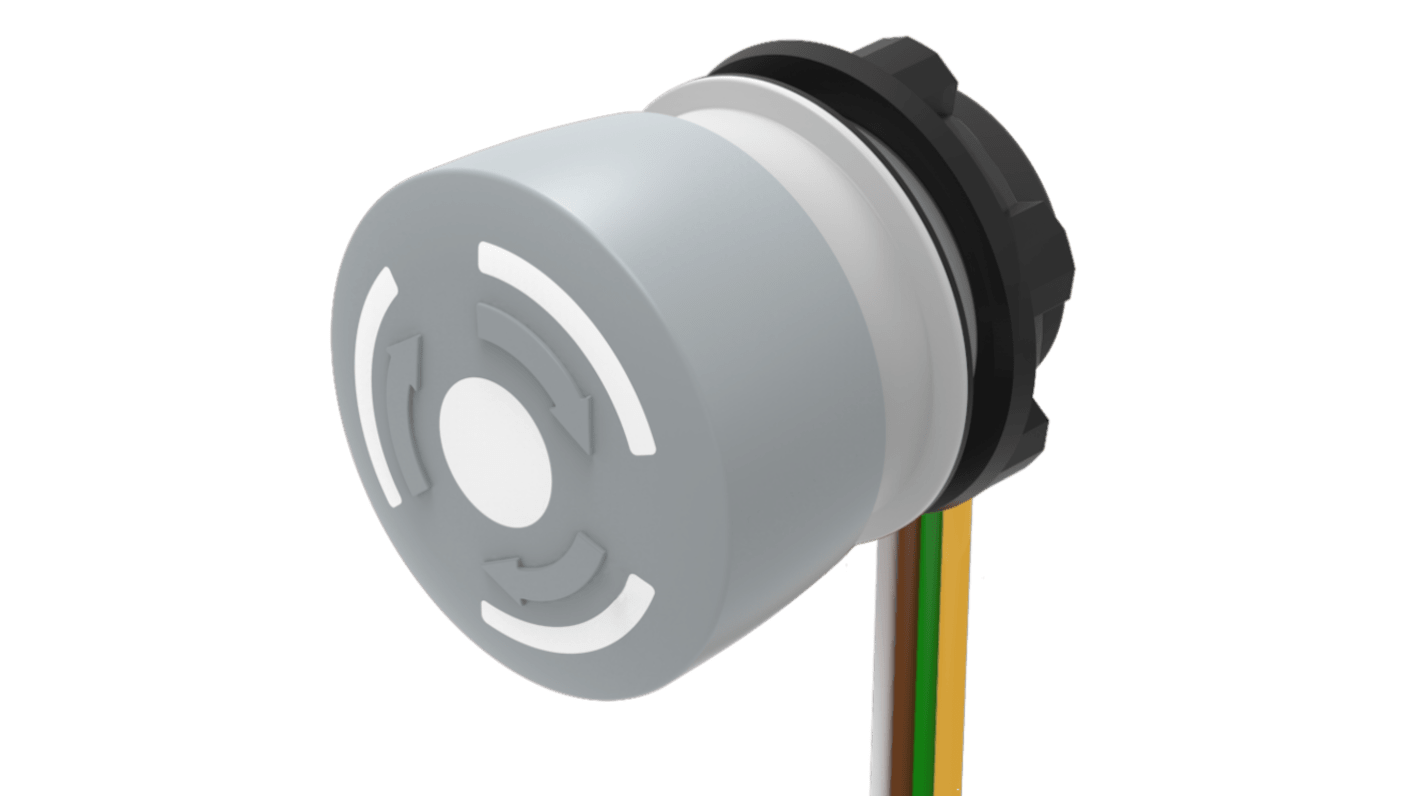

The EAO stop switch features a 22.3 mm mounting diameter and a 32 mm mushroom-head design. It is non-illuminative with a grey plastic construction and an opaque, round design. The switch includes 2 NC contacts in a maintained configuration. It comes with a 300 mm flat ribbon cable and offers IP65, IP66, and IP67 protection according to DIN EN 60529. Designed for safety, it features a twist-to-unlock mechanism.
Terminal Flat ribbon cable 300 mm
Contact material Gold
Switching action Maintained
Switching system Slow-make switching element
