EAO Twist Release Emergency Stop Push Button, Panel Mount, 22.3mm Cutout, DPST, IP65, IP66, IP67

모든 Emergency Stop Push Buttons 열람하기

Subtotal (1 unit)*

₩65,008.52

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보
수량
한팩당
1 +₩65,008.52

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
333-927
제조사 부품 번호:
84-5240.0040
제조업체:
EAO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

EAO

Mounting Type

Panel Mount

Cutout Diameter

22.3mm

Contact Configuration

DPST

Voltage Rating

250V

Push Button Actuation

Twist Release

Illuminated

No

IP Rating

IP65, IP66, IP67

제외

COO (Country of Origin):
CH

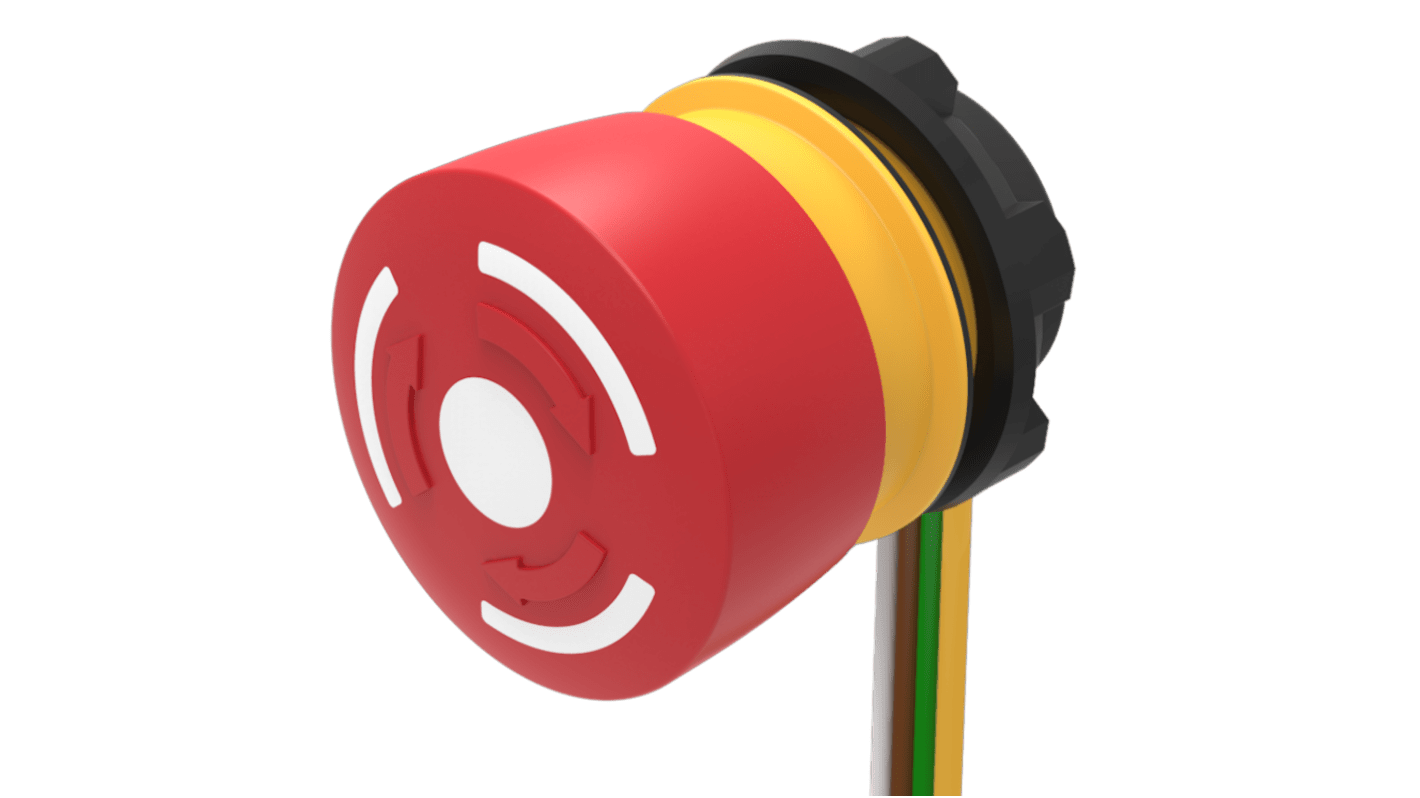

The EAO emergency stop switch features a 22.3 mm mounting diameter and a 32 mm mushroom-head design. It is non-illuminative with a red-white plastic construction that meets UL 94 V0 standards. The switch is opaque and round with 2 NC contacts in a maintained configuration. It includes a 300 mm flat ribbon cable and offers IP65, IP66, and IP67 protection according to DIN EN 60529. Designed for safety, it features a twist-to-unlock mechanism.

Terminal Flat ribbon cable 300 mm
Contact material Gold
Switching action Maintained
Switching system Slow-make switching element
