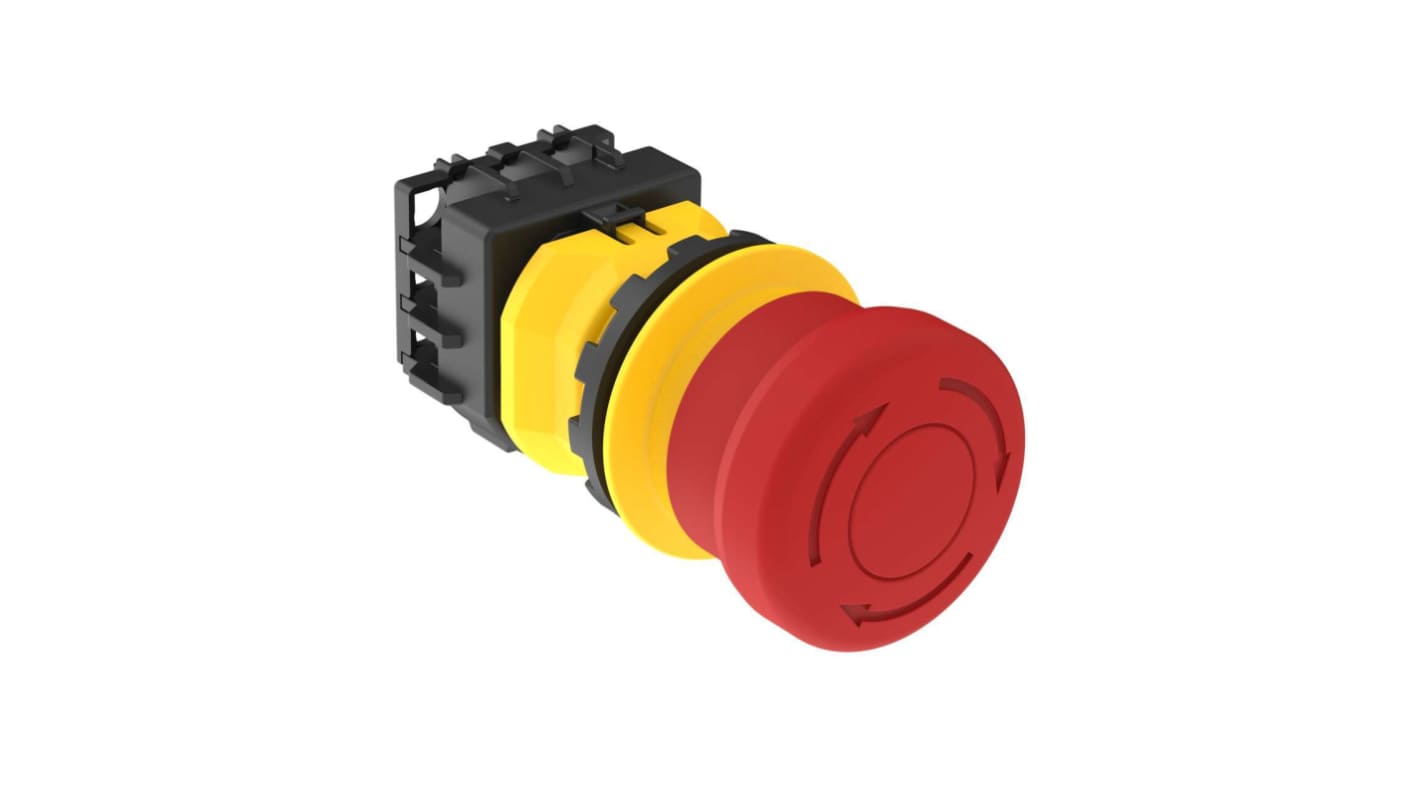

Banner SSA-EB Series Illuminated Emergency Stop Push Button, Panel Mount, 30 mm Cutout, IP65
- RS 제품 번호:
- 293-676
- 제조사 부품 번호:
- SSA-EB1PL2-12
- 제조업체:
- Banner
Subtotal (1 unit)*
₩148,137.60
제조사가 재고 비축중
- 2026년 12월 08일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩148,137.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 293-676
- 제조사 부품 번호:
- SSA-EB1PL2-12
- 제조업체:
- Banner
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Banner | |
| Mount Type | Panel Mount | |
| Product Type | Emergency Stop Push Button | |
| Cutout Diameter | 30mm | |
| Housing Material | Polyamide, Aluminium | |
| Series | SSA-EB | |
| Illuminated | Yes | |
| IP Rating | IP65 | |
| Terminal Type | M3 Screw Terminal | |
| Head Style | Mushroom Shaped | |
| Contact Current | 1A | |
| Contact DC Voltage | 30V dc | |
| Standards/Approvals | UL 508, CSA C22.2 No.14, EN/IEC 60497-5-1, EN/IEC 60947-5-5 | |
| Hazardous Area Certification | NO | |
| Head Diameter | 30mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Banner | ||
Mount Type Panel Mount | ||
Product Type Emergency Stop Push Button | ||
Cutout Diameter 30mm | ||
Housing Material Polyamide, Aluminium | ||
Series SSA-EB | ||
Illuminated Yes | ||
IP Rating IP65 | ||
Terminal Type M3 Screw Terminal | ||
Head Style Mushroom Shaped | ||
Contact Current 1A | ||
Contact DC Voltage 30V dc | ||
Standards/Approvals UL 508, CSA C22.2 No.14, EN/IEC 60497-5-1, EN/IEC 60947-5-5 | ||
Hazardous Area Certification NO | ||
Head Diameter 30mm | ||
- COO (Country of Origin):
- JP
The Banner SSA-EB Series models are mushroom style electro mechanical emergency stop push buttons. These buttons mount through a 30 mm hole in an enclosure. When the button is armed, the switch's safety contacts normally closed/NC are closed and its monitoring contacts normally open/NO, if present, are open. When the button is pushed, the switch's safety contacts open, and the monitoring contacts close. The contacts remain in this condition until they are manual rearmed.
Latching design complies with ISO 13850
Direct opening operation per EN 60947-5-1
Compliant with ANSI B11.19 and NFPA 79
Emergency Stop legend optional
