ABB 1SFA Series Pull Release Emergency Stop Push Button, Surface Mount, 2 NC, IP66, IP67, IP69K
- RS 제품 번호:
- 185-485
- 제조사 부품 번호:
- CEPY1-2002
- 제조업체:
- ABB
Subtotal (1 unit)*
₩89,901.60
재고있음
- 49 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩89,901.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 185-485
- 제조사 부품 번호:
- CEPY1-2002
- 제조업체:
- ABB
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ABB | |
| Product Type | Emergency Stop Push Button | |
| Mount Type | Surface Mount | |
| Contact Configuration | 2 NC | |
| Push Button Actuation | Pull Release | |
| Housing Material | Plastic | |
| Series | 1SFA | |
| Illuminated | No | |
| IP Rating | IP66, IP67, IP69K | |
| Colour | Yellow, Red | |
| Depth | 65mm | |
| Length | 65mm | |
| Hazardous Area Certification | No | |
| Standards/Approvals | CE | |
| Width | 0.065 m | |
| Push Button Material | Plastic | |
| 모두 선택 | ||
|---|---|---|
브랜드 ABB | ||
Product Type Emergency Stop Push Button | ||
Mount Type Surface Mount | ||
Contact Configuration 2 NC | ||
Push Button Actuation Pull Release | ||
Housing Material Plastic | ||
Series 1SFA | ||
Illuminated No | ||
IP Rating IP66, IP67, IP69K | ||
Colour Yellow, Red | ||
Depth 65mm | ||
Length 65mm | ||
Hazardous Area Certification No | ||
Standards/Approvals CE | ||
Width 0.065 m | ||
Push Button Material Plastic | ||
- COO (Country of Origin):
- CN

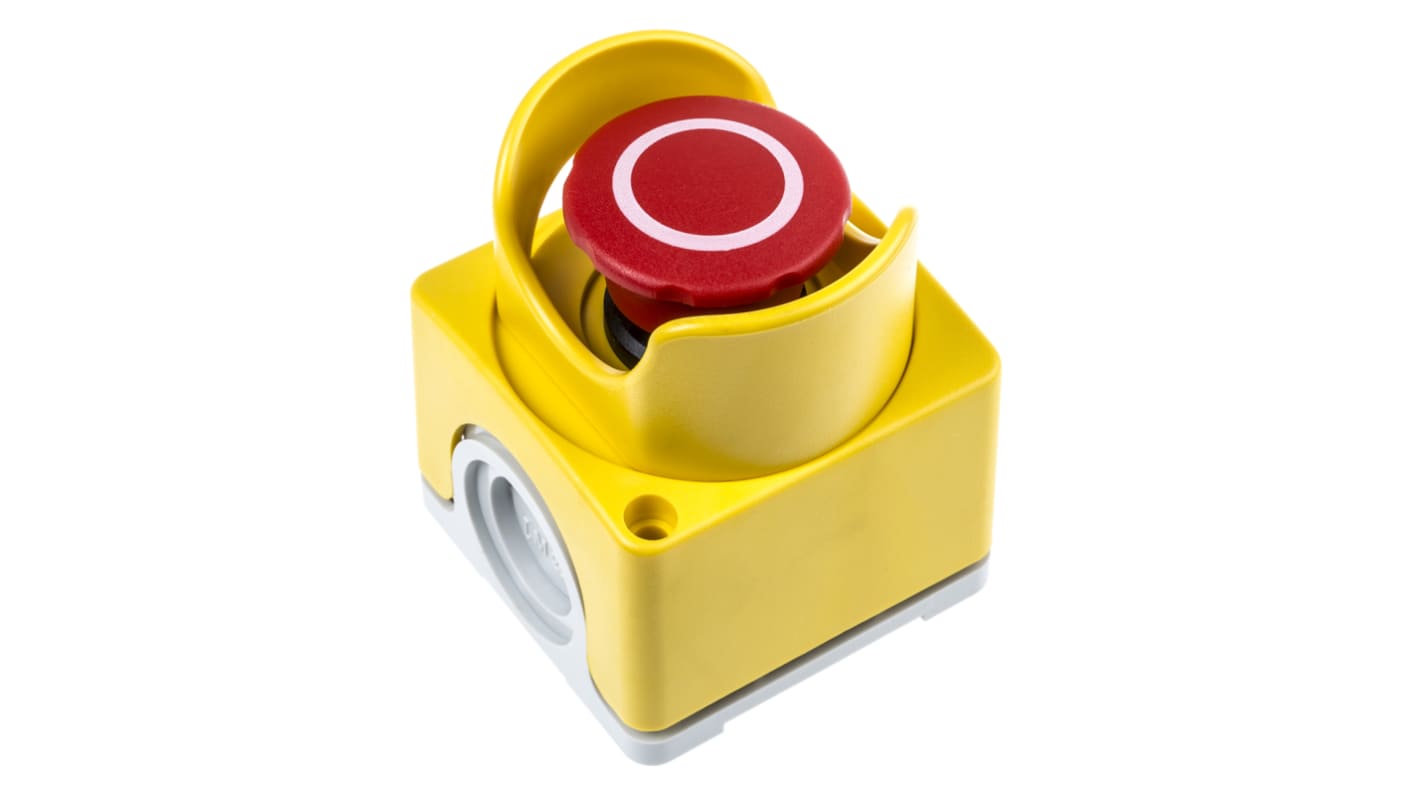

ABB Emergency Stop Push Button, Plastic Housing, Pull-Release Design - 1SFA Series - CEPY1-2002
To prevent injuries in hazardous settings, bring a halt to proceedings with this ABB emergency stop push button. Pressing on its flat surface causes connected equipment to shut down immediately, limiting exposure to dangerous machine parts. The bright red actuator is set in a yellow surround to easily catch the eye, meaning you won't waste precious time in an emergency. Thanks to neat dimensions of 65 (W) x 80 (D) x 65mm (H), this is a space-saver that fits comfortably on a busy control panel.
Features & Benefits
• 24 to 300V operating voltage range indicates it's suitable for use in powerful electrical systems
• 124g weight shows it's light and avoids putting pressure on your setup
• 40mm-wide head offers a good amount of contact surface area
• Holds up in harsh environments thanks to its broad operating temperature range between -25°C and +70°C
• Moulded housing protects the button to prevent accidental activation
Applications
• Assembly lines
• Industrial automation
• Food and beverage production
Is this button waterproof?
Yes. The IP66 rating on this unit indicates the assembly withstands high-pressure water jets from any direction in addition to being fully dust-protected.
