ABB, Key Release, Emergency Stop Push Button Head 30 mm Diameter

RS 제품 번호:: 237-5039
제조사 부품 번호:: 1SFA611522R1301
제조업체:: ABB

ABB, Key Release, Emergency Stop Push Button Head 30 mm Diameter

본 제품군 열람하기

Subtotal (1 unit)*

₩90,900.00

제조사가 재고 비축중

2026년 9월 30일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩90,900.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 237-5039
제조사 부품 번호:: 1SFA611522R1301
제조업체:: ABB

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	ABB
	Product Type	Emergency Stop Push Button Head
	Cutout Diameter	22.5mm
	Push Button Colour	Red
	Push Button Actuation	Key Release
	Push Button Style	Mushroom
	Push Button Material	Plastic
	IP Rating	IP66, IP20
	Illuminated	No
	Push Button Diameter	30mm
	Hazardous Area Certification	No

	모두 선택
	브랜드 ABB
	Product Type Emergency Stop Push Button Head
	Cutout Diameter 22.5mm
	Push Button Colour Red
	Push Button Actuation Key Release
	Push Button Style Mushroom
	Push Button Material Plastic
	IP Rating IP66, IP20
	Illuminated No
	Push Button Diameter 30mm
	Hazardous Area Certification No

Datasheet - 1SFA611522R1301

COO (Country of Origin):: CN

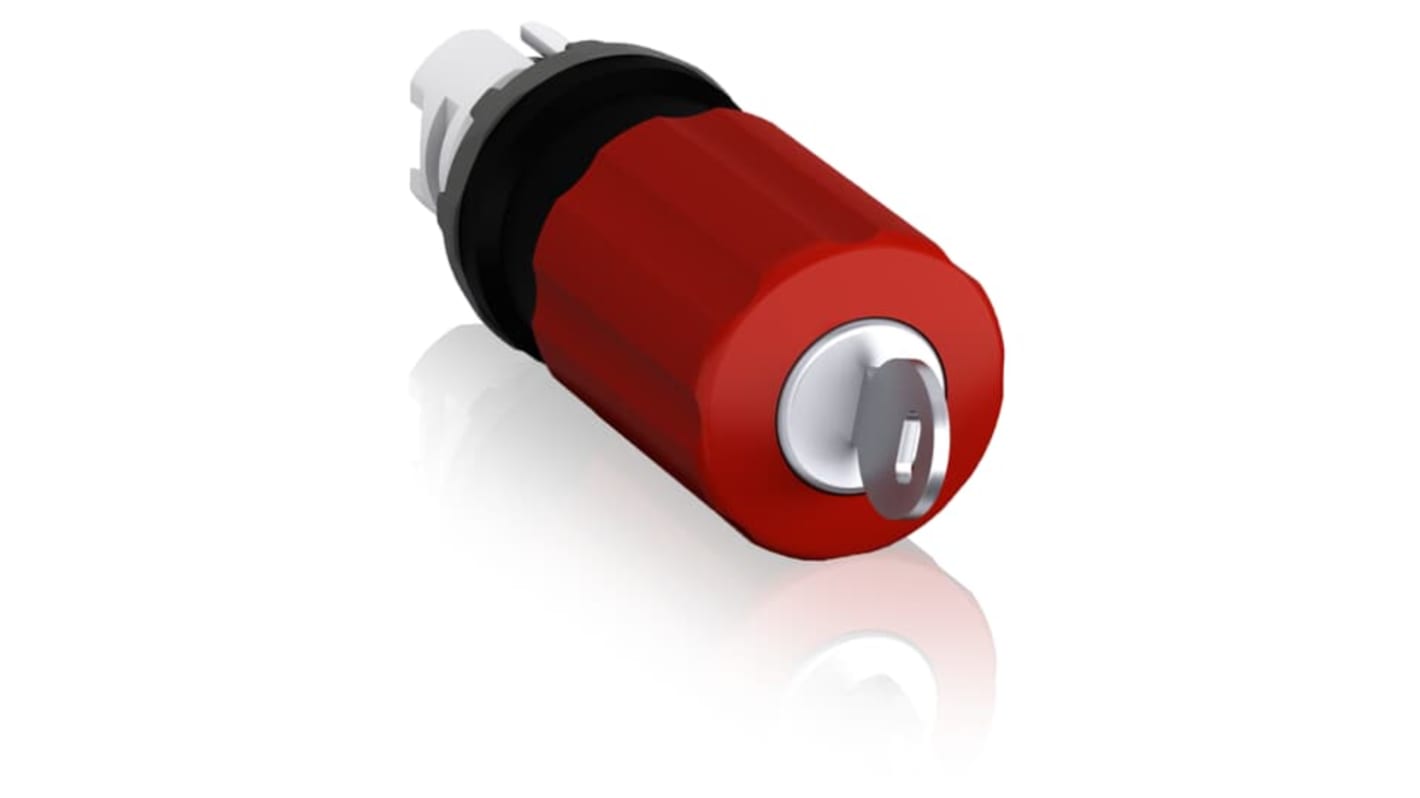

ABB Emergency Stop Push Button Head, 30mm Button Diameter, 22.5mm Cut-out Diameter - 1SFA611522R1301

This emergency stop push button head provides a manual shutdown Interface for industrial control systems, designed for use where Rapid human intervention is required. It offers a non-illuminated, plastic mushroom actuator in a high-visibility red finish, configured for key release operation and intended for panel mounting in control enclosures.

Features and Benefits:

• Key release actuation prevents accidental reset while allowing deliberate restart
• IP66 protection against jetting water and dust ingress
• IP20 protection for internal, unassembled components
• 30mm diameter mushroom gives rapid, unambiguous actuation
• Plastic construction reduces weight and resists corrosion
• 22.5mm cut-out compatibility simplifies panel installation

Applications

• Suitable for emergency stop interfaces on production machinery
• Ideal for control panels in automated assembly lines
• Used with safety circuits requiring positive manual interruption
• Can be used for machinery where Visual emergency indication is unnecessary

Is this head suitable for use in hazardous atmospheres?

It is not certified for hazardous-area use and should not be installed where intrinsic-safety or explosion-protection certification is required.

How does key release operation affect reset procedures?

The actuator remains latched until a key is used to release it, allowing controlled reset only by authorised personnel.

What mounting provision does it require?

The unit is designed to fit a 22.5mm panel aperture for straightforward replacement or retrofit.

Does the head include illumination or lamps?

No illumination is provided

the design is a plain, non-illuminated manual actuator.

Can this be used as a replacement component in existing assemblies?

It is suitable as a replacement head for compatible emergency stop assemblies that accept 22.5mm cut-out mushroom actuators.
