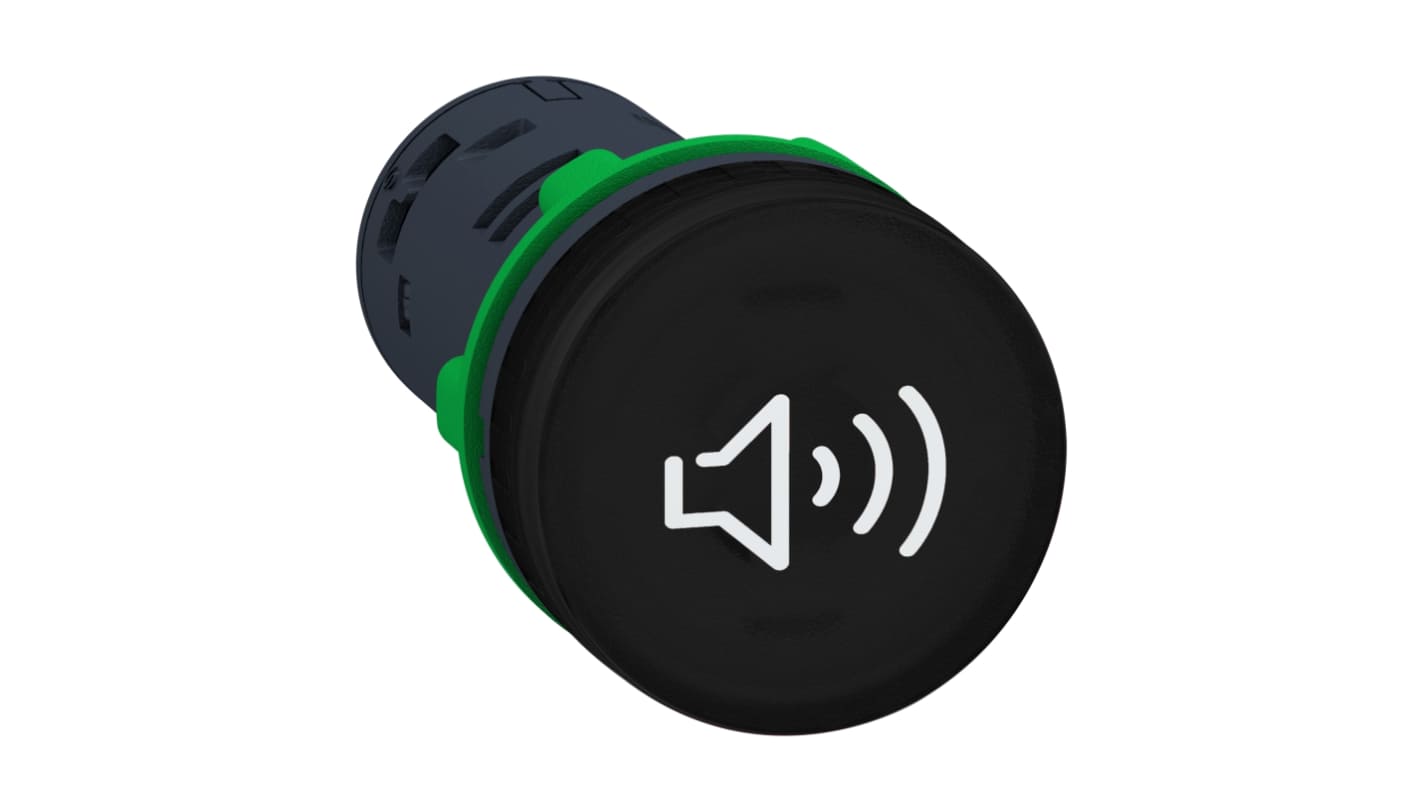

Schneider Electric Harmony XB5 Series Buzzer Panel 230V ac, IP40 85 dB @ 1m, AC

RS 제품 번호:: 167-9010
Distrelec 제품 번호:: 302-37-530
제조사 부품 번호:: XB5KSM
제조업체:: Schneider Electric

Schneider Electric Harmony XB5 Series Buzzer Panel 230V ac, IP40 85 dB @ 1m, AC

Subtotal (1 unit)*

₩90,420.00

6 개 단위 배송 준비 완료
추가로 2026년 9월 25일 부터 7 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩90,420.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

Our Better World range features products that make it easy for you to make a greener product choice you can trust.

Learn more about RS Better World products

RS 제품 번호:: 167-9010
Distrelec 제품 번호:: 302-37-530
제조사 부품 번호:: XB5KSM
제조업체:: Schneider Electric

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Schneider Electric
	Product Type	Buzzer
	IP Rating	IP40
	Current Type	AC
	Mount Type	Panel
	Colour	Black
	Maximum Supply Voltage	230V ac
	Sound Level at 1m	85dB
	Maximum Sound Level	90dB
	Maximum Operating Temperature	70°C
	Series	Harmony XB5
	Hazardous Area Certification	No
	Base Length	22mm
	Better World Claim	Repairable by the End User
	Better World Product	Yes
	Tone Type	Continuous, Intermittent
	Base Width	30mm
	Housing Material	Plastic
	Standards/Approvals	CSA, UL

	모두 선택
	브랜드 Schneider Electric
	Product Type Buzzer
	IP Rating IP40
	Current Type AC
	Mount Type Panel
	Colour Black
	Maximum Supply Voltage 230V ac
	Sound Level at 1m 85dB
	Maximum Sound Level 90dB
	Maximum Operating Temperature 70°C
	Series Harmony XB5
	Hazardous Area Certification No
	Base Length 22mm
	Better World Claim Repairable by the End User
	Better World Product Yes
	Tone Type Continuous, Intermittent
	Base Width 30mm
	Housing Material Plastic
	Standards/Approvals CSA, UL

Schneider Electric Harmony XB5 Series Buzzer, Panel Mount Mounting Style, 90dB Maximum Decibel - XB5KSM

This buzzer from Schneider Electric's Harmony XB5 series is designed to provide clear audible alerts in industrial environments. It serves as an effective warning device, helping to ensure safety during operations. Built to withstand demanding conditions, it is ideal for electrical and automation applications where reliable signaling is essential.

Features & Benefits

• Emits a sound level of 90dB for clear and effective notifications

• Operates at a supply voltage of 230V AC with a 50Hz frequency for versatile applications

• Durable plastic housing with a 22mm mounting diameter for easy installation

• Capable of withstanding temperatures ranging from -40°C to +70°C

• Available in a standard head type for consistent performance

• Meets CSA and UL standards, ensuring high safety and reliability

Applications

• Used in manufacturing plants to signal machine status or alert personnel

• Applied in control panels for indicating alarms or fault conditions

• Utilised in industrial automation systems for operational alerts

• Employed in process industries to notify of equipment malfunctions or safety concerns

What is the installation process for connecting this device?

Installation is simple with a panel mount design that accommodates a 22mm diameter hole. Connect the device to a 230Vac power source, ensuring proper wiring and safety compliance according to local standards.

What environments can this buzzer be used in?

This buzzer is built to withstand harsh conditions with an operating temperature range of -40°C to +70°C, making it suitable for both indoor and outdoor environments.

Can the buzzer operate continuously, or is it intermittent?

The buzzer offers both continuous and intermittent tone options, providing flexibility for different notification needs.
