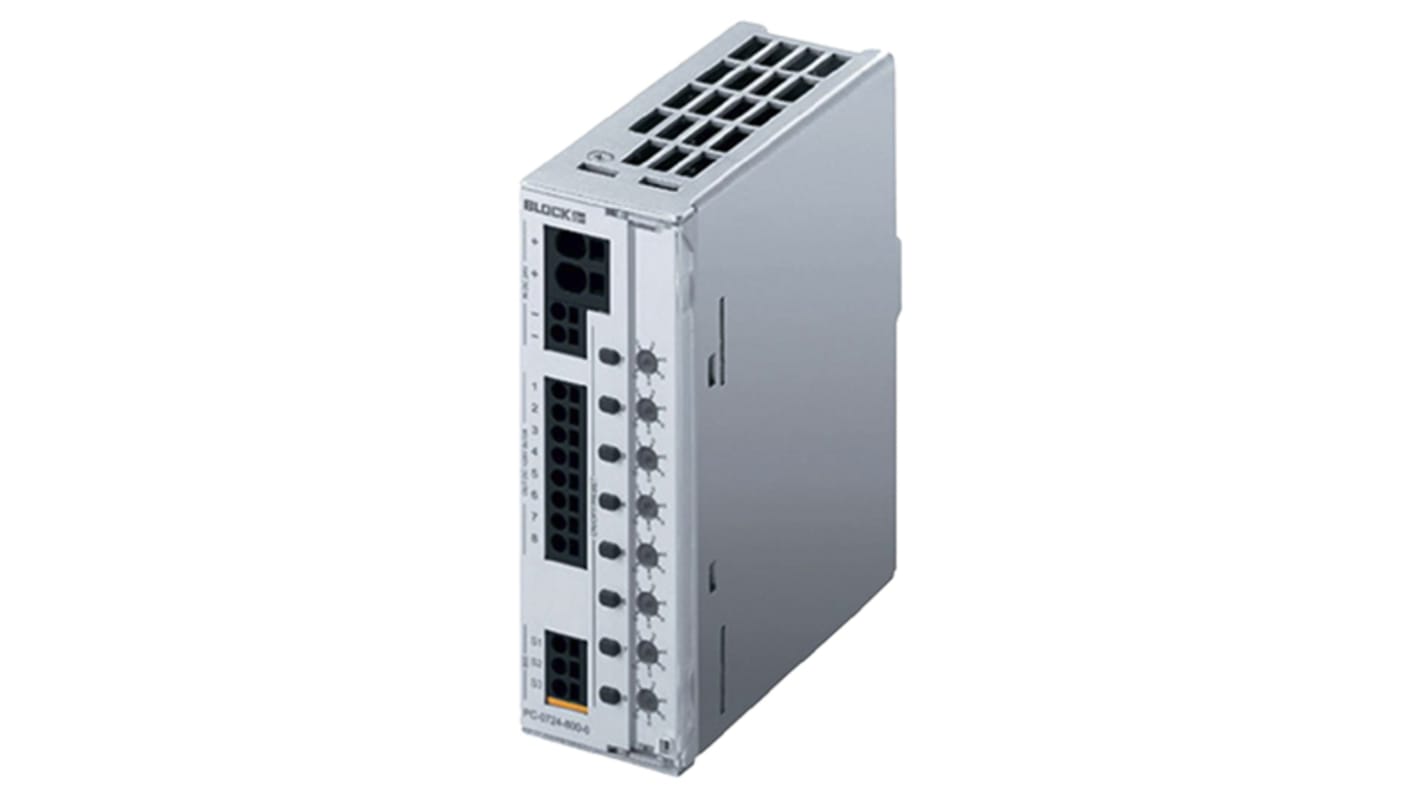

Block Circuit Breaker 10 A 24V
- RS 제품 번호:
- 890-2901
- Distrelec 제품 번호:
- 301-25-446
- 제조사 부품 번호:
- PC-0724-800-0
- 제조업체:
- Block
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 890-2901
- Distrelec 제품 번호:
- 301-25-446
- 제조사 부품 번호:
- PC-0724-800-0
- 제조업체:
- Block
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Block | |
| Product Type | Circuit Breaker | |
| Current Rating | 10 A | |
| Voltage | 24V | |
| Standards/Approvals | cURus, cULus, GL | |
| 모두 선택 | ||
|---|---|---|
브랜드 Block | ||
Product Type Circuit Breaker | ||
Current Rating 10 A | ||
Voltage 24V | ||
Standards/Approvals cURus, cULus, GL | ||
제외
- COO (Country of Origin):
- DE
BLOCK Electronic Circuit Breakers
These new electronic circuit breakers from Block provide innovative advantages for optimised current.
Power Compact range features a module with a width of just 42mm,which has eight electronically protected 24V output channels, each with a maximum rated current of 10A.
Power Mini has 4 channels with identical functionality in a compact plastic housing.
Benefits
Each Channels can be individually adjusted
Different current per channel
Remote restart of tripped channels possible
Reliable tripping for high cable impedances
LED operational On/Off/Tripped warning lights
Alarm signal for tripped channel
Remote switch-on / off of any channel
Inrush current of system is distributed through sequential power-up of the channels
Reduced width of the units
Saves Din Rail space
Cage Clamp connections
2, 4 or 8 channel versions available
Applications
Panel and Machine Builders
Electrical Installations
HVAC Installations
Ship Building
BLOCK Circuit Breakers
Approvals
GL (Lloyds Registered) cURus, cULus
