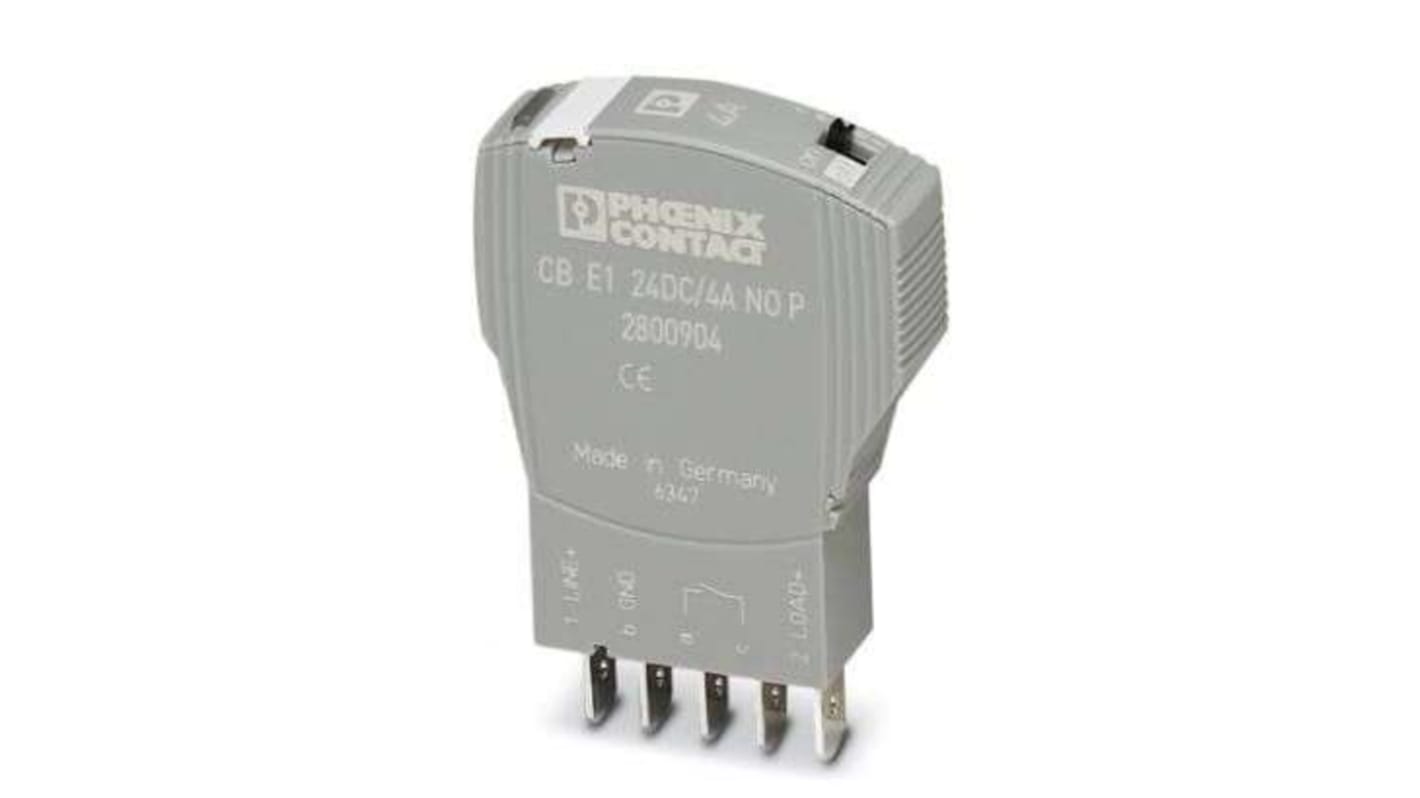

Phoenix Contact CB CB E1 Electronic Circuit Breaker 4A 24V, DIN Rail
- RS 제품 번호:
- 217-6384
- 제조사 부품 번호:
- 2800904
- 제조업체:
- Phoenix Contact
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 217-6384
- 제조사 부품 번호:
- 2800904
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Range | CB | |
| Product Type | Electronic Circuit Breaker | |
| Series | CB E1 | |
| Current Rating | 4A | |
| Voltage | 24V | |
| Mount Type | DIN Rail | |
| Length | 80mm | |
| Terminal Type | Screw | |
| Width | 12.5mm | |
| Depth | 52mm | |
| Standards/Approvals | cUL, cULus, EN 61000-6-3, UL, RoHS | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Range CB | ||
Product Type Electronic Circuit Breaker | ||
Series CB E1 | ||
Current Rating 4A | ||
Voltage 24V | ||
Mount Type DIN Rail | ||
Length 80mm | ||
Terminal Type Screw | ||
Width 12.5mm | ||
Depth 52mm | ||
Standards/Approvals cUL, cULus, EN 61000-6-3, UL, RoHS | ||
- COO (Country of Origin):
- DE
The Phoenix Contact CB E1 series have electronic device circuit breaker with 1 NO contact. This device have on base element mounting and it required 24 V dc operating voltage with 4 A nominal current.
Compact design with precise nominal current levels
IP degree of protection is IP30
Ambient temperature for operation is -25 °C to 50 °C
