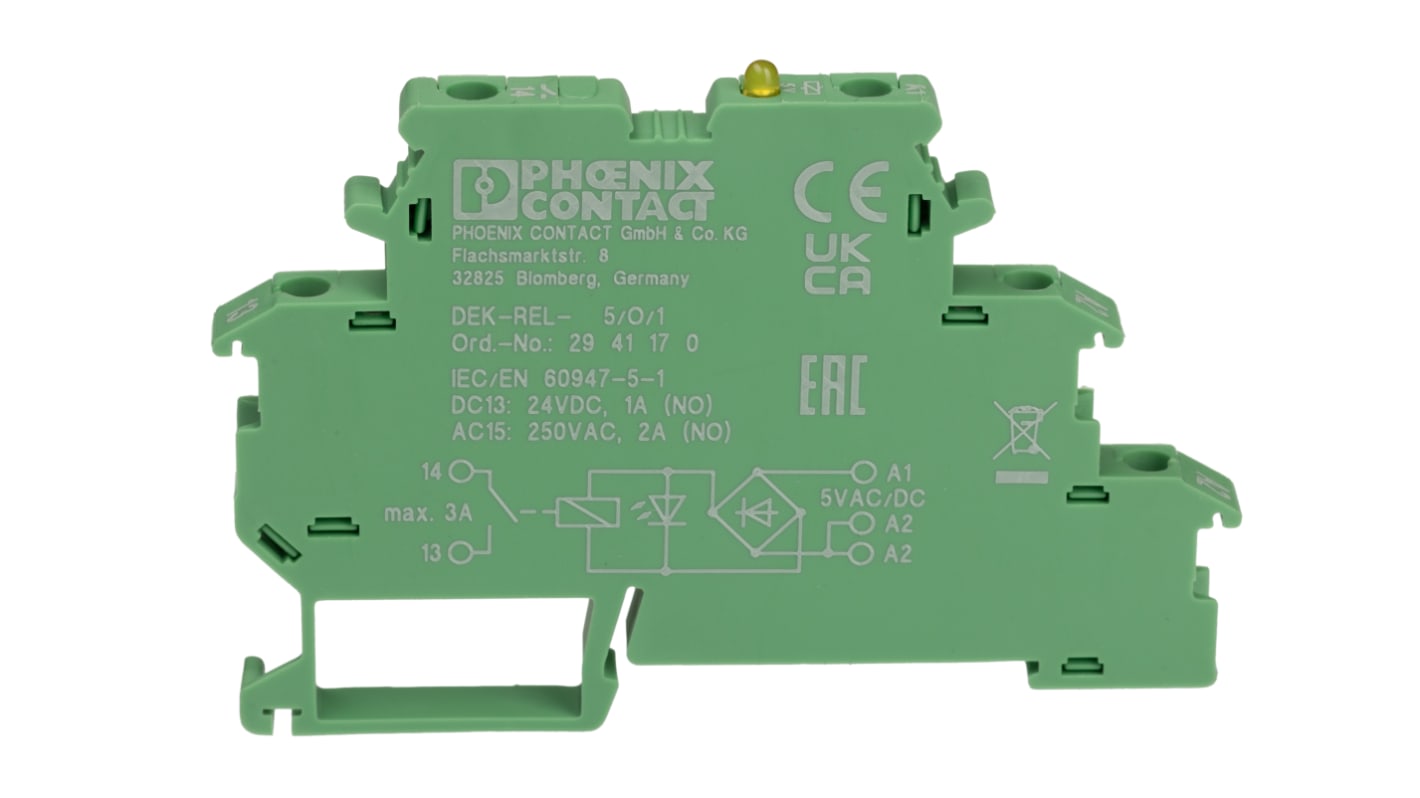

Phoenix Contact DEK-REL-5/O/1 Series Interface Relay, DIN Rail, 5V ac/dc Coil, SPST, 23mA
- RS 제품 번호:
- 801-8573
- 제조사 부품 번호:
- 2941170
- 제조업체:
- Phoenix Contact
Subtotal (1 unit)*
₩128,602.50
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 + | ₩128,602.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 801-8573
- 제조사 부품 번호:
- 2941170
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Coil Voltage | 5V ac/dc | |
| Product Type | Interface Relay | |
| Contact Configuration | SPST | |
| Mount Type | DIN Rail | |
| Series | DEK-REL-5/O/1 | |
| Terminal Type | Screw | |
| Switching Current | 5A | |
| Switching DC Voltage | 125V dc | |
| Coil Current | 23mA | |
| Minimum Operating Temperature | -20°C | |
| Switching AC Voltage | 250V ac | |
| Contact Material | Gold Plated | |
| Maximum Operating Temperature | 50°C | |
| Length | 56mm | |
| Height | 80mm | |
| Width | 6.2mm | |
| Standards/Approvals | EAC | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Coil Voltage 5V ac/dc | ||
Product Type Interface Relay | ||
Contact Configuration SPST | ||
Mount Type DIN Rail | ||
Series DEK-REL-5/O/1 | ||
Terminal Type Screw | ||
Switching Current 5A | ||
Switching DC Voltage 125V dc | ||
Coil Current 23mA | ||
Minimum Operating Temperature -20°C | ||
Switching AC Voltage 250V ac | ||
Contact Material Gold Plated | ||
Maximum Operating Temperature 50°C | ||
Length 56mm | ||
Height 80mm | ||
Width 6.2mm | ||
Standards/Approvals EAC | ||
- COO (Country of Origin):
- CN
Phoenix Contact DEK-REL-5/O/1 Series Interface Relay, 5V AC/DC Coil Voltage, SPST - 2941170
This compact interface relay is designed for efficiency in electrical applications. Featuring a 5V AC/DC coil voltage and a single SPST (Single Pole Single Throw) configuration, it is ideal for small to medium load switching tasks. The relay has a mechanical lifespan of 20 million cycles and is suitable for space-constrained environments with its DIN rail mounting style.
Features & Benefits
• Gold-plated contacts ensure conductivity
• Supports 250V AC switching
• Low input current of 23 mA minimises energy consumption
• 2kV isolation between input and output enhances safety
• Wide operating temperature range of -20°C to +50°C
• Screw connection for straightforward installation
Applications
• Automation systems for control
• Building management and electrical distribution
• Electronic circuit and device interfacing
• Machinery control and signal processing
Can it handle different input voltage ranges?
Yes, it operates within an input range of 4.5V to 5.5V AC/DC.
What is the typical response time of this relay module?
It has a typical response time of 8 ms.
