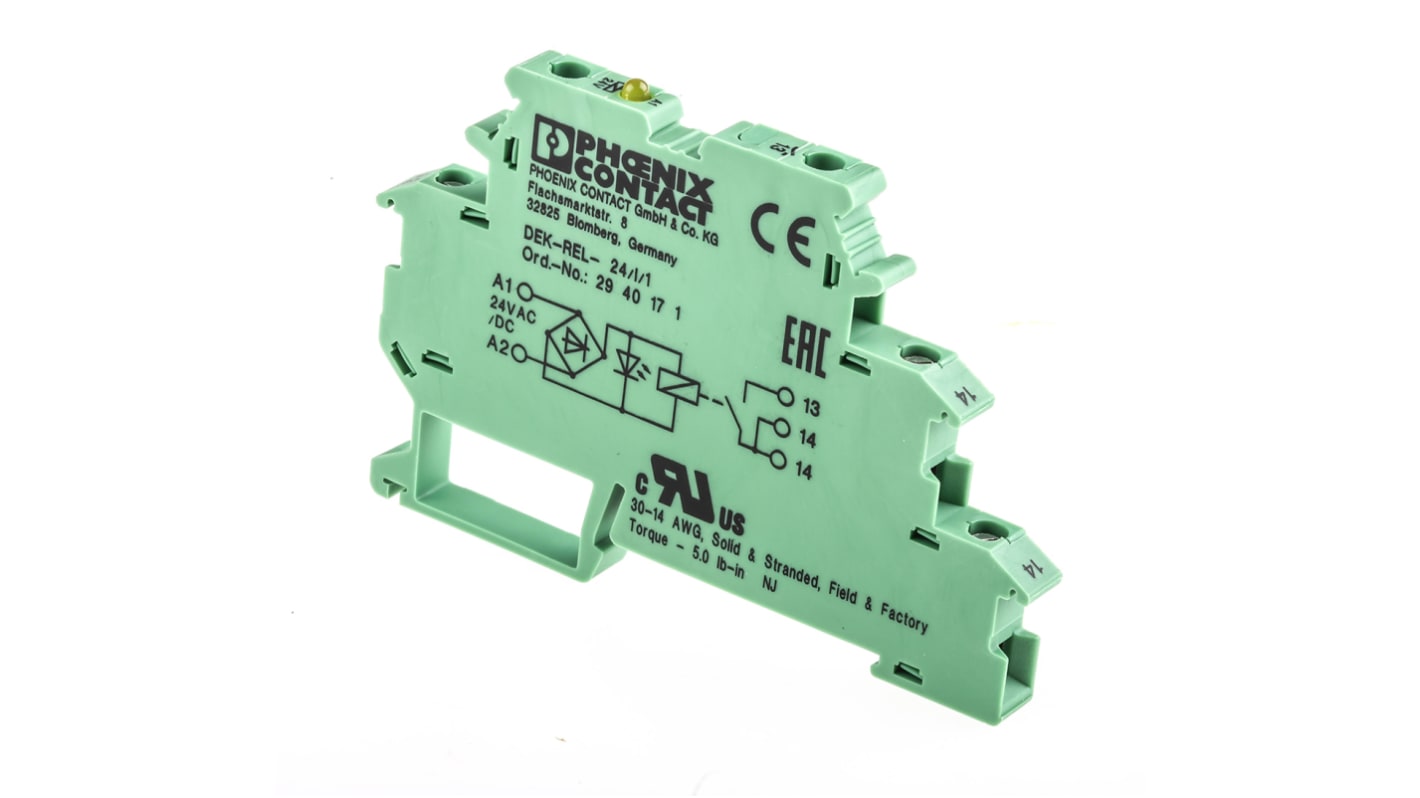

Phoenix Contact DEK-REL- 24/I/1 Series Interface Relay, DIN Rail, 24 V ac/dc Coil, SPST, 6.5 mA

본 제품군 열람하기

Subtotal (1 unit)*

₩59,351.60

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 3월 30일 부터 17 개 단위 배송
  • 추가로 2026년 4월 08일 부터 40 개 단위 배송
  • 추가로 2026년 5월 01일 부터 40 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩59,351.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
801-8563
제조사 부품 번호:
2940171
제조업체:
Phoenix Contact
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Phoenix Contact

Product Type

Interface Relay

Contact Configuration

SPST

Mount Type

DIN Rail

Series

DEK-REL- 24/I/1

Terminal Type

Screw

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

50°C

Contact Material

Gold Plated

Height

80mm

Length

56mm

Standards/Approvals

UL, EAC

COO (Country of Origin):
CN

DEK-REL- 24/I/1 2940171


Phoenix Contact DEK-REL Series of Relay Terminal Blocks


A series of interface relay blocks containing soldered in miniature relays, for small to medium loads. Designed to be mountable on DIN rail NS 35/7.5, they are 6.2mm wide providing up to 73% more space on the rail as N terminal blocks are no longer needed. Input voltage in this series ranges from 5 V ac/dc to 24 V ac/dc, with a 2-layer contact with hard gold plating for universal applications from 1 mA to 5 A continuous current.

The range of DEK-REL preassembled relay units from Phoenix Contact give you a great choice of easy connection technology. The solid-state relays act as the interface between your automation equipment and system peripherals.

Features and Benefits:


• Wiring reduced

• Integrated input circuit

• 2 kVrms electrical isolation between input and output

• Up to 73% more space

• Yellow LED operating voltage display

• AgNi, hard gold-plated contact

Applications:


DEK relay terminal blocks are used in many different applications not limited to power amplification, electrical isolation or for using for voltage adjustment of frequency varying voltage levels.
