Phoenix Contact EMG REL Series Interface Relay, DIN Rail, 24V dc Coil, SPDT, 21mA
- RS 제품 번호:
- 308-1311
- 제조사 부품 번호:
- 2942153
- 제조업체:
- Phoenix Contact
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩98,494.50
재고있음
- 87 개 단위 배송 준비 완료
- 추가로 2026년 6월 12일 부터 30 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩98,494.50 |
| 5 + | ₩81,081.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 308-1311
- 제조사 부품 번호:
- 2942153
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Product Type | Interface Relay | |
| Coil Resistance | 1.143kΩ | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Series | EMG REL | |
| Terminal Type | Screw | |
| Switching Current | 8A | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 250V dc | |
| Coil Current | 21mA | |
| Minimum Operating Temperature | -20°C | |
| Contact Material | Silver Alloy | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | EAC | |
| Width | 10.6mm | |
| Length | 75mm | |
| Height | 62.5mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Product Type Interface Relay | ||
Coil Resistance 1.143kΩ | ||
Coil Voltage 24V dc | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Series EMG REL | ||
Terminal Type Screw | ||
Switching Current 8A | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 250V dc | ||
Coil Current 21mA | ||
Minimum Operating Temperature -20°C | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals EAC | ||
Width 10.6mm | ||
Length 75mm | ||
Height 62.5mm | ||
- COO (Country of Origin):
- DE

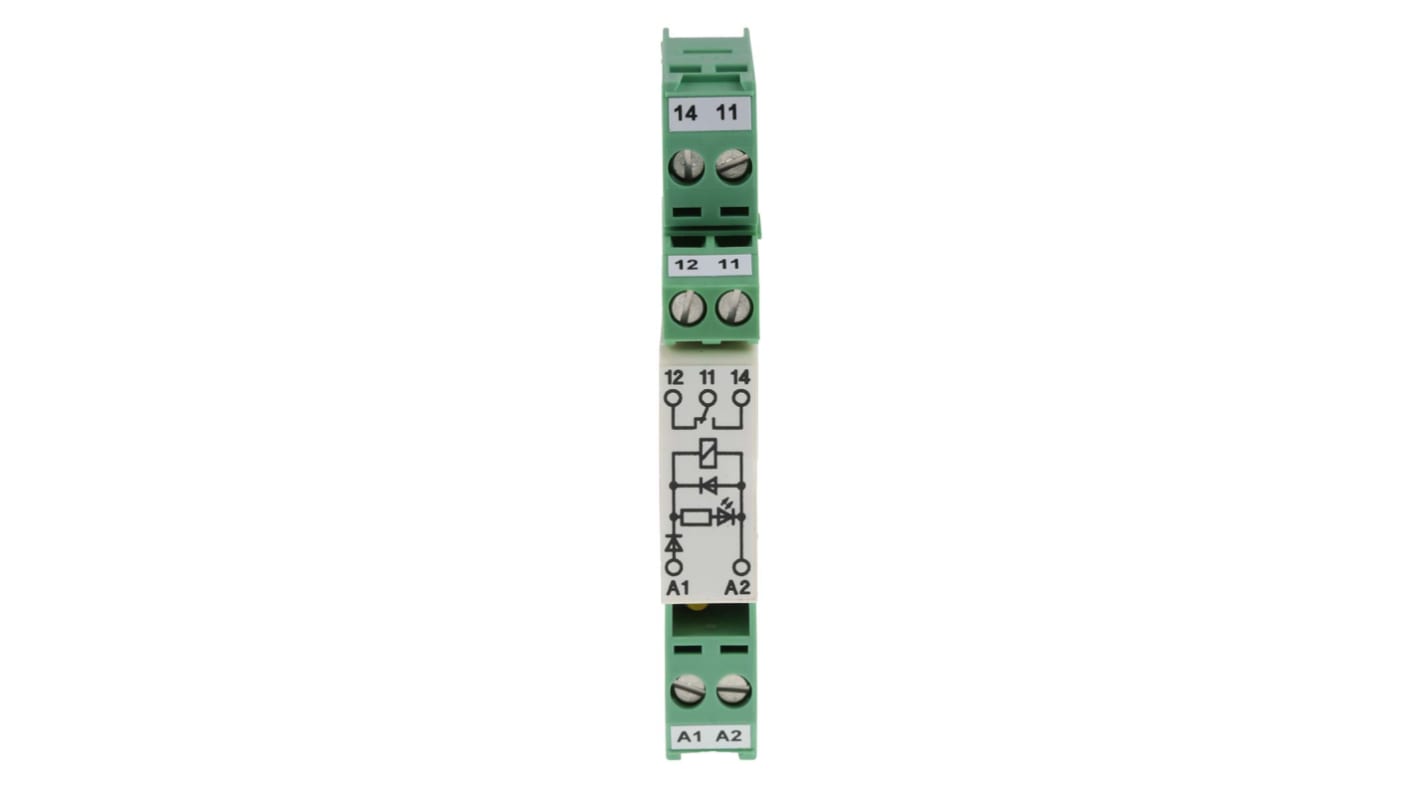

Phoenix Contact Interface Relay, M3 Screw Connection Type, 8mm Stripping Length - EMG 10-REL/KSR-G 24/21-LC - 2942153
Controlling large circuits is a breeze with this Phoenix Contact interface relay. When supplied with 24V DC, it makes or breaks a connected circuit with a rating of up to 250V AC/DC. For crystal-clear signalling, it has built-in galvanic isolation, which separates the input and output to protect against EMI. The unit withstands temperatures between -20°C and +40°C, so it's just the thing for harsh work areas. It's also highly reliable, as shown by its service life of 20 million cycles.
For versatility, this unit accepts wires in a broad cross-section range of 24 to 12AWG. A test voltage of 4kV AC assures you it holds its own against sudden electrical surges. Relays like this one are found everywhere from fuel pumps to motor control and automotive applications.
Features & Benefits
• Typical input current of 21mA, so it doesn't guzzle electricity
• Yellow LED display for easy status monitoring
• Slim size of 10.6 (W) x 75 (H) 62.5mm (D) means it squeezes into tight setups
• EN 50178 compliance shows it meets the minimum requirements for the safe design of electrical equipment in power installations in Europe
• Mountable in any position for flexibility
