Festo 50 mm, 2135N, 8083802 24V dc 190mm/s

모든 Electric Linear Actuators 열람하기

Subtotal (1 unit)*

₩2,231,346.00

Add to Basket
수량 선택 또는 입력
제조사가 재고 비축중
  • 2026년 7월 08일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩2,231,346.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
203-9768
Distrelec 제품 번호:
301-86-860
제조사 부품 번호:
EGSS-BS-KF-32-50-8P-ST-M-H1-PLK-AA
제조업체:
Festo
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Festo

Product Type

Electrical Linear Actuator

Stroke Length

50mm

Maximum Load

2135N

Maximum Speed

190mm/s

Voltage

24V dc

Series

EGSS

Motor Technology

Stepper Motor

Duty Cycle

100%

Maximum Force

991N

IP Rating

IP40

Spindle Type

Ball Screw

Minimum Operating Temperature

0°C

Overall Length Closed

32mm

Maximum Operating Temperature

50°C

Weight

1074g

Standards/Approvals

CE mark, RCM mark, KC mark, EU RoHS

COO (Country of Origin):
DE

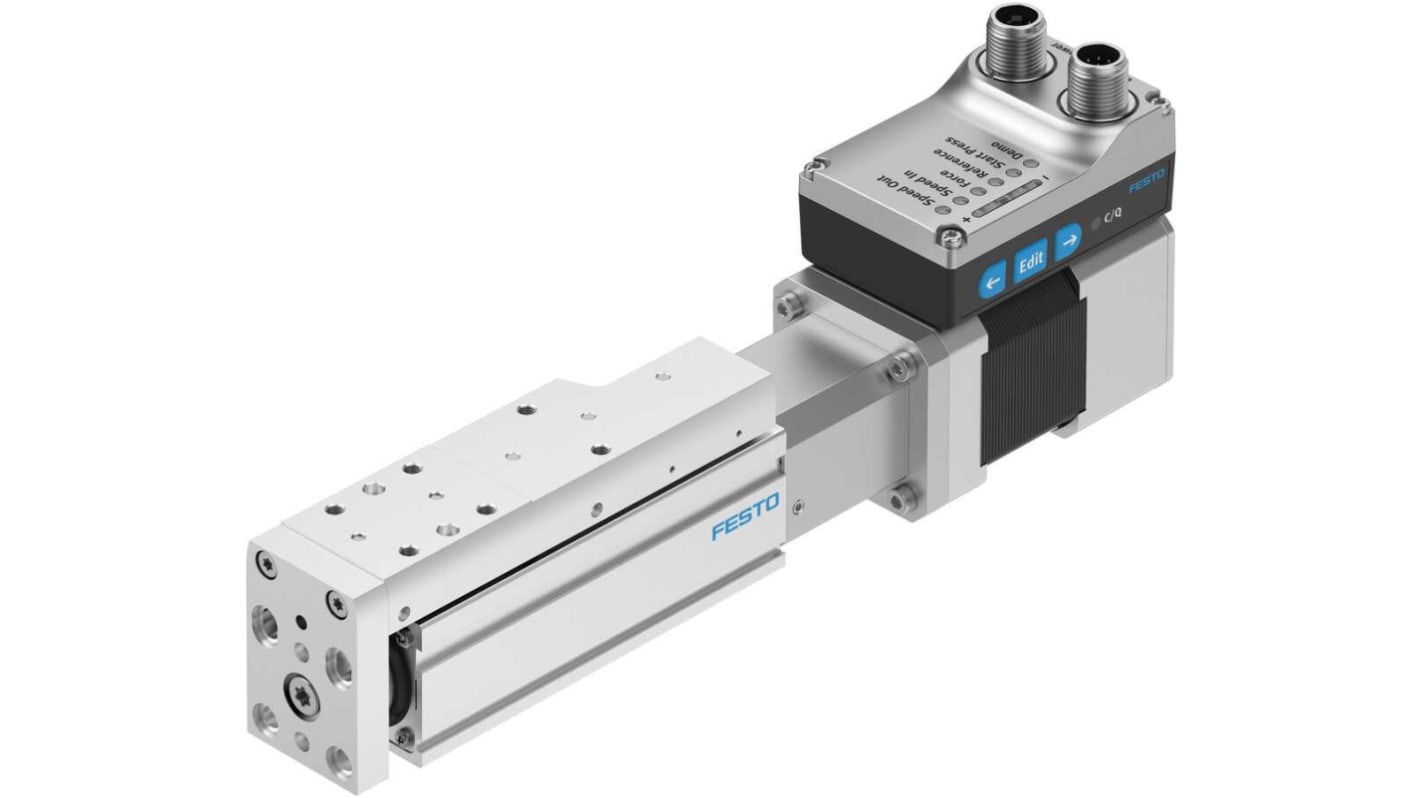

Festo EGSS Series Electric Linear Actuator, 50mm Maximum Stroke Length, 190mm/s Maximum Speed - EGSS-BS-KF-32-50-8P-ST-M-H1-PLK-AA, Numeric Part Number:8083802


This electric linear actuator is a micro linear motion solution designed for compact spaces. With a maximum stroke length of 50mm and a robust load capacity of up to 2kg, it operates efficiently on a 24V DC input. Engineered with a high-performance stepper motor, this actuator combines precise movement with dependable strength, making it an ideal choice for various applications requiring compact integration.

Features & Benefits


• Compact design integrates easily into tight spaces

• High load capacity supports substantial weights of up to 2kg

• Stepper motor technology ensures precise and repeatable positioning

• Maximum speed of 190mm/s enhances operational efficiency

• Duty cycle of 100% allows continuous operation without downtime

• Integrated position detection increases operational reliability and safety

Applications


• Ideal for automation systems requiring precise linear movement

• Suitable for electronic equipment assembly where space is limited

• Utilised in material handling that need consistent load management

• Implemented in medical devices for precise adjustments and movements

What are the typical environmental conditions this actuator can operate in?


The actuator functions optimally within a temperature range of 0 °C to 50 °C and can withstand relative humidity of 0% to 90%. It is also designed for IP40 protection, making it suitable for clean and controlled environments.

How does temperature affect the performance of this actuator?


For ambient temperatures above 30 °C, the power must be reduced by 2% for each additional degree Celsius to maintain performance and prevent overheating, ensuring efficient operation under varying conditions.

What are the expected maintenance needs for longevity?


This actuator features lifetime lubrication, which minimises maintenance requirements and enhances durability over time. Regular checks of its positioning and load handling capabilities are recommended to ensure optimal performance.

How can this device's position detection aid in automation?


The actuator incorporates a motor encoder and rotor position sensor that provides accurate feedback on its position. This feature is crucial for automation as it allows for precise control and adjustments in various applications, ensuring operational accuracy.

What types of connections are available for power supply?


It supports M12x1, T-coded plugs for power supply connections, allowing for easy integration into existing systems while ensuring a secure and robust connection.
