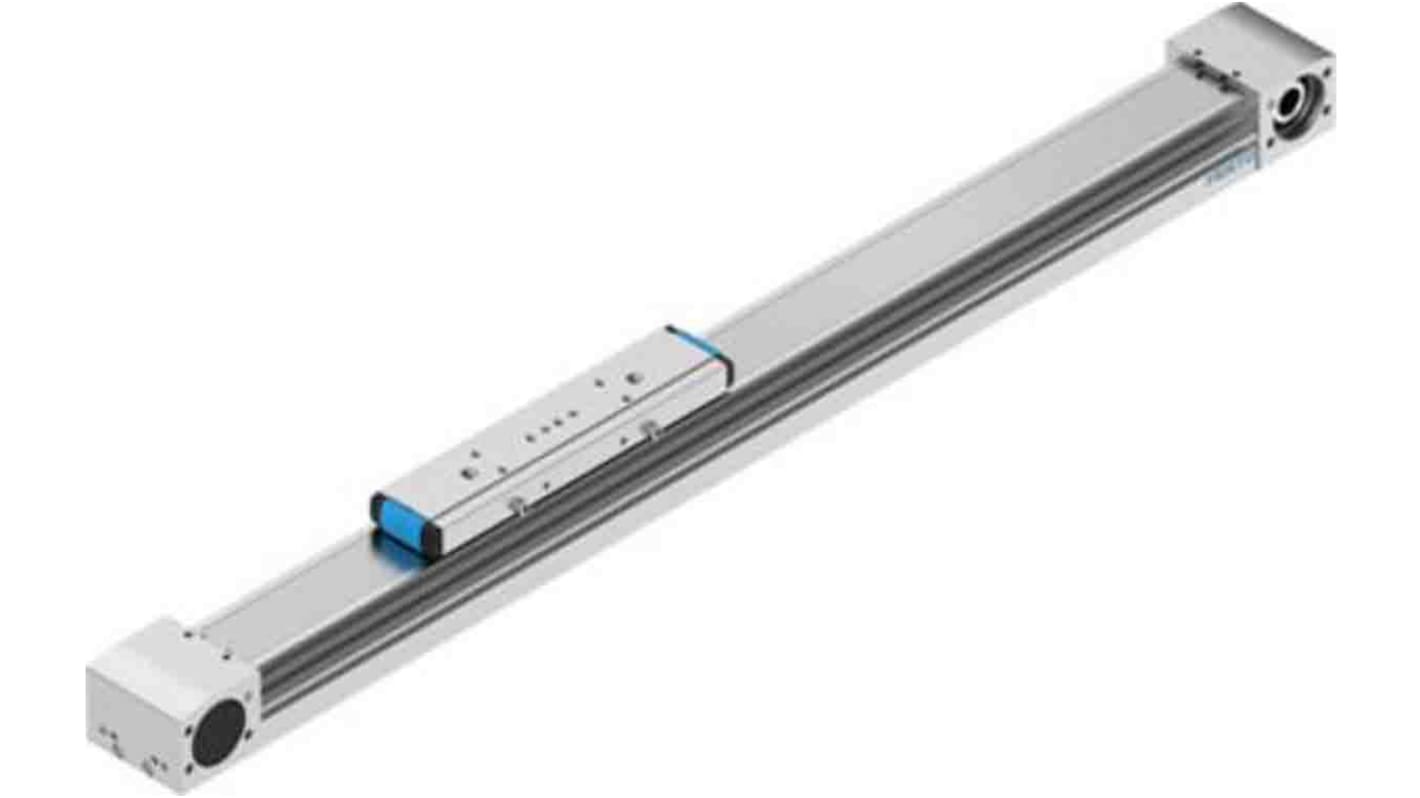

Festo ELGA-TB, 8041853 Electrical Linear Actuator, 5000mm/s, 500 mm
- RS 제품 번호:
- 203-6981
- Distrelec 제품 번호:
- 301-70-280
- 제조사 부품 번호:
- ELGA-TB-KF-70-500-0H
- 제조업체:
- Festo
Subtotal (1 unit)*
₩3,551,474.55
제조사가 재고 비축중
- 2026년 5월 28일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩3,551,474.55 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 203-6981
- Distrelec 제품 번호:
- 301-70-280
- 제조사 부품 번호:
- ELGA-TB-KF-70-500-0H
- 제조업체:
- Festo
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Festo | |
| Product Type | Electrical Linear Actuator | |
| Stroke Length | 500mm | |
| Maximum Speed | 5000mm/s | |
| Series | ELGA-TB | |
| Motor Technology | Servo Motor, Stepper Motor | |
| Duty Cycle | 100% | |
| IP Rating | IP40 | |
| Guide Type | Ball Bearing | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| 모두 선택 | ||
|---|---|---|
브랜드 Festo | ||
Product Type Electrical Linear Actuator | ||
Stroke Length 500mm | ||
Maximum Speed 5000mm/s | ||
Series ELGA-TB | ||
Motor Technology Servo Motor, Stepper Motor | ||
Duty Cycle 100% | ||
IP Rating IP40 | ||
Guide Type Ball Bearing | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- DE
Festo ELGA-TB Series Electric Linear Actuator, 500mm Maximum Stroke Length, 1500N Maximum Load - ELGA-TB-KF-70-500-0H, Numeric Part Number:8041853
This electric linear actuator represents a versatile solution for various applications, showcasing its efficiency as a belt-driven linear actuator. With a maximum stroke length of 500mm and the capability of supporting loads up to 1500N, this actuator is suitable for high-performance tasks. Designed with robust materials, including a wrought aluminium alloy and stainless steel components, it operates seamlessly across a temperature range of -10 °C to 60 °C.
Features & Benefits
• Achieves speeds of up to 5000mm/s for rapid operations
• Maintains precision with a repetition accuracy of ±0.08mm
• Utilises both servo and stepper motor technology for flexibility
• IP40 rating protects from dust and solid particles
• Supports a duty cycle of 100% for continuous use
• Incorporates a recirculating ball bearing guide for smooth motion
Applications
• Used for precise positioning in automation systems
• Employed in assembly lines to enhance productivity
• Suitable for material handling in industrial settings
• Utilised in robotics for accurate movements and control
What is the significance of the maximum load capacity?
The maximum load capacity of 1500N indicates that the actuator is capable of handling substantial weights, making it suitable for industrial applications where heavy components need to be moved. This ensures reliability in demanding environments.
How does the actuator achieve high speeds without compromising on accuracy?
The actuator's design, featuring a high-speed servo or stepper motor and a precise toothed belt, enables it to reach top speeds while maintaining a repetition accuracy of ±0.08mm. This balance is crucial for tasks requiring both speed and precision.
What are the benefits of the IP40 rating?
An IP40 rating indicates that the actuator offers protection against the intrusion of dust, which ensures its reliable operation in various environments, particularly in industrial settings. This feature significantly enhances longevity and reduces maintenance needs.
