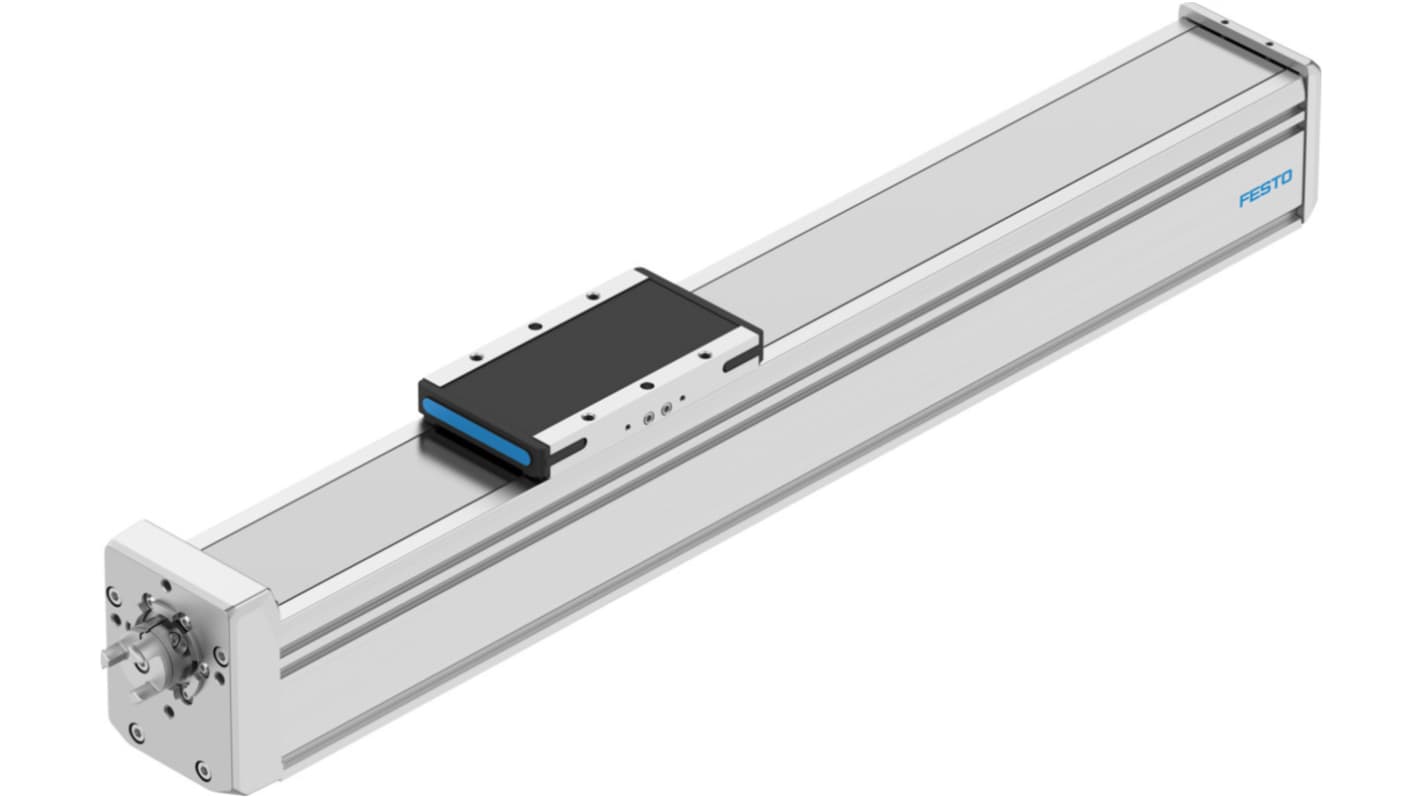

Festo ELGD, ELGD-BS-KF-80-300-0H-10P Electrical Linear Actuator, 830mm/s, 300 mm

모든 Electric Linear Actuators 열람하기

Subtotal (1 unit)*

₩2,168,458.50

Add to Basket
수량 선택 또는 입력
제조사가 재고 비축중
  • 2026년 6월 10일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩2,168,458.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
342-195
제조사 부품 번호:
ELGD-BS-KF-80-300-0H-10P
제조업체:
Festo
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Festo

Product Type

Electrical Linear Actuator

Stroke Length

300mm

Maximum Speed

830mm/s

Series

ELGD

Motor Technology

Servo Motor, Stepper Motor

Duty Cycle

100%

IP Rating

IP40

Guide Type

Ball Bearing

Maximum Operating Temperature

60°C

Standards/Approvals

RoHS, VDMA24364 zone III

COO (Country of Origin):
DE

Festo ELGD Series Electrical Linear Actuator, 300mm Stroke Length, IP40 - ELGD-BS-KF-80-300-0H-10P, Numeric Part Number:8192277


This electrical linear actuator provides precise linear motion for automation and mechanical systems. Designed for continuous-operation tasks, it combines guided travel with selectable motor types to convert rotary drive into controlled axial movement. It is intended for installation where moderate environmental protection is acceptable and thermal loads reach typical industrial values.

Features and Benefits:


• 100% duty cycle enabling continuous operation without downtime
• Ball-bearing guide reducing lateral play and improving positional accuracy
• 300mm stroke enabling substantial travel within a Compact envelope
• Servo or stepper motor options allowing flexible control strategies
• Peak speed up to 830 mm/s supporting high-speed indexing
• Rated for operation up to 60°C for elevated-temperature environments

Applications


• Suitable for pick-and-place in automated assembly lines
• Ideal for linear positioning on inspection stations
• Used with robotic end-effectors for tool-change routines
• Can be used for conveyor metering and product sorting
• Used for laboratory automation requiring repeatable travel

What level of ingress protection does the unit provide?


The actuator has IP40 protection, which shields against large solid objects but does not offer significant resistance to dust or water ingress.

Which standards or approvals apply to its use in industrial settings?


It conforms to RoHS requirements and meets VDMA24364 zone III criteria for specified industrial applications.

How does the guide system affect lifecycle and maintenance?


The ball-bearing guide reduces wear from side loads and maintains alignment, which can extend service intervals compared with plain-bearing solutions.

What motor technologies are compatible and how does that affect control?


Both servo and stepper motor technologies are supported, allowing closed-loop position control or open-loop microstepping depending on control system choice.

Can it sustain continuous Rapid operation without thermal issues?


With a 100% duty rating and a maximum operating temperature of 60°C, it is designed for sustained Rapid cycles within those thermal limits.
