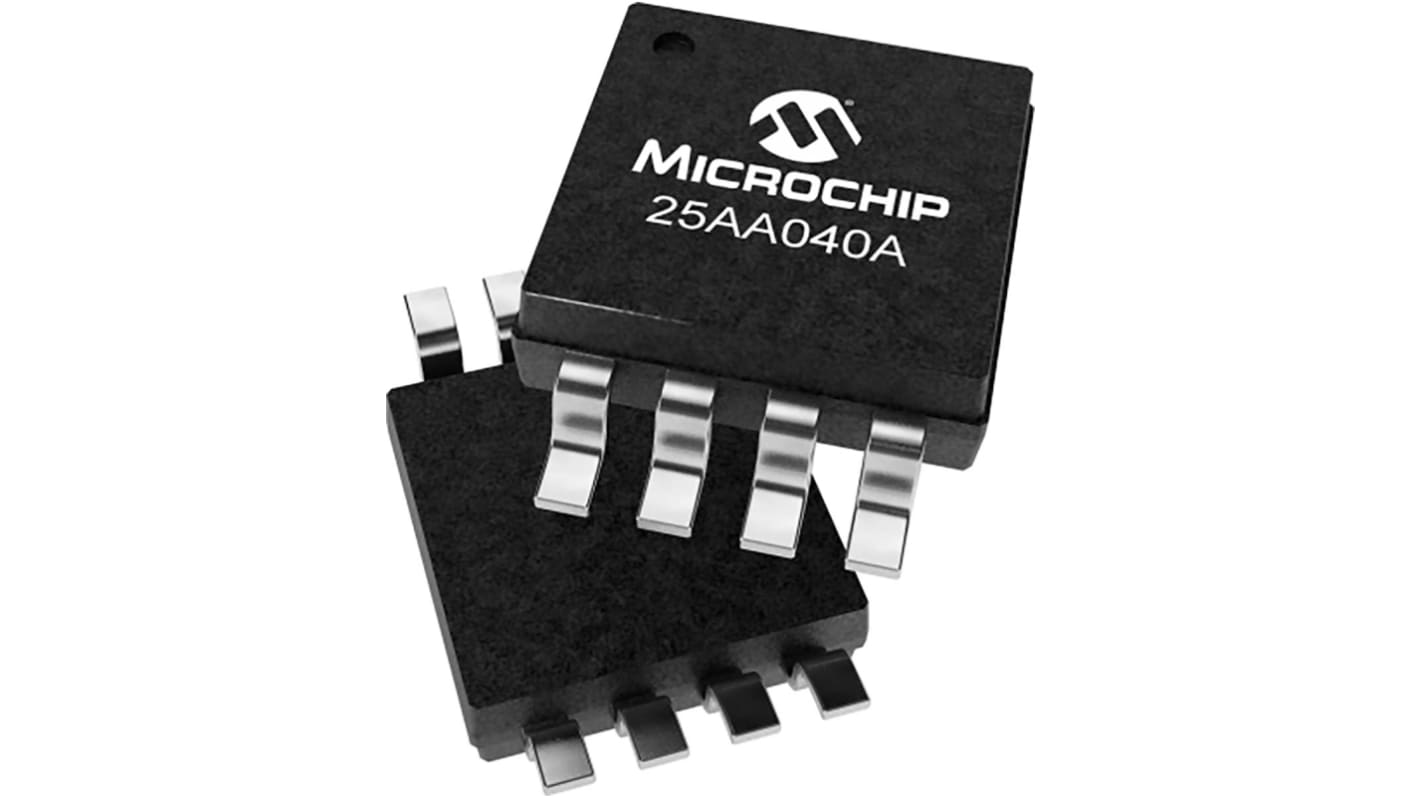

Microchip, 4 kB Serial EEPROM, 50 ns 8-Pin MSOP Serial-SPI
- RS 제품 번호:
- 197-6048P
- 제조사 부품 번호:
- 25AA040A-I/MS
- 제조업체:
- Microchip
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal 125 units (supplied in a tube)*
₩120,412.50
일시적 품절
- 2026년 5월 25일 부터 350 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 125 + | ₩963.30 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 197-6048P
- 제조사 부품 번호:
- 25AA040A-I/MS
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Product Type | Serial EEPROM | |
| Memory Size | 4kB | |
| Interface Type | Serial-SPI | |
| Package Type | MSOP | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Clock Frequency | 10MHz | |
| Minimum Supply Voltage | 1.8V | |
| Maximum Supply Voltage | 5.5V | |
| Number of Bits per Word | 8 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 1.1mm | |
| Series | 25AA040A | |
| Length | 3mm | |
| Standards/Approvals | No | |
| Maximum Random Access Time | 50ns | |
| Number of Words | 512 | |
| Data Retention | 200year | |
| Supply Current | 5mA | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Product Type Serial EEPROM | ||
Memory Size 4kB | ||
Interface Type Serial-SPI | ||
Package Type MSOP | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Clock Frequency 10MHz | ||
Minimum Supply Voltage 1.8V | ||
Maximum Supply Voltage 5.5V | ||
Number of Bits per Word 8 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 1.1mm | ||
Series 25AA040A | ||
Length 3mm | ||
Standards/Approvals No | ||
Maximum Random Access Time 50ns | ||
Number of Words 512 | ||
Data Retention 200year | ||
Supply Current 5mA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TH
Microchip 25AA040A-I/MS is a 4 Kbit Serial Electrically Erasable Programmable Read-Only Memory (EEPROM). The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The bus signals required are a clock input (SCK) plus separate data in (SI) and data out (SO) lines. Access to the device is controlled through a Chip Select (CS) input. Communication to the device can be paused via the hold pin (HOLD).
Max. Clock 10 MHz
Low-Power CMOS Technology: Max. Write Current: 5 mA at 5.5V, 10 MHz, Read Current: 5 mA at 5.5V, 10 MHz, Standby Current: 5 μA at 5.5V
Sequential Read
Self-timed Erase and Write Cycles (5 ms max.)
Built-in Write Protection: Power-on/off data protection circuitry, Write enable latch, Write-protect pin
High Reliability: Endurance: 1,000,000 Erase/Write cycles, Data retention: >200 years, ESD protection: >4000V
Temperature Ranges Supported: Industrial (I): -40°C to +85°C, Automotive (E): -40°C to +125°C
Pb-Free and RoHS Compliant
