4D Systems MOTG AC2 Interface Board with 2 MOTG Slots for gen4 LCD Displays

Utilising a modular concept, the MOTG range provides a simple method for swift hardware expansion, allowing rapid design and maintenance of applications requiring a display. WiFi, Bluetooth, RS-232, RS-485 and enhanced audio can easily be added to an LCD display through simply plugging in the appropriate module into an installed MOTG interface board.

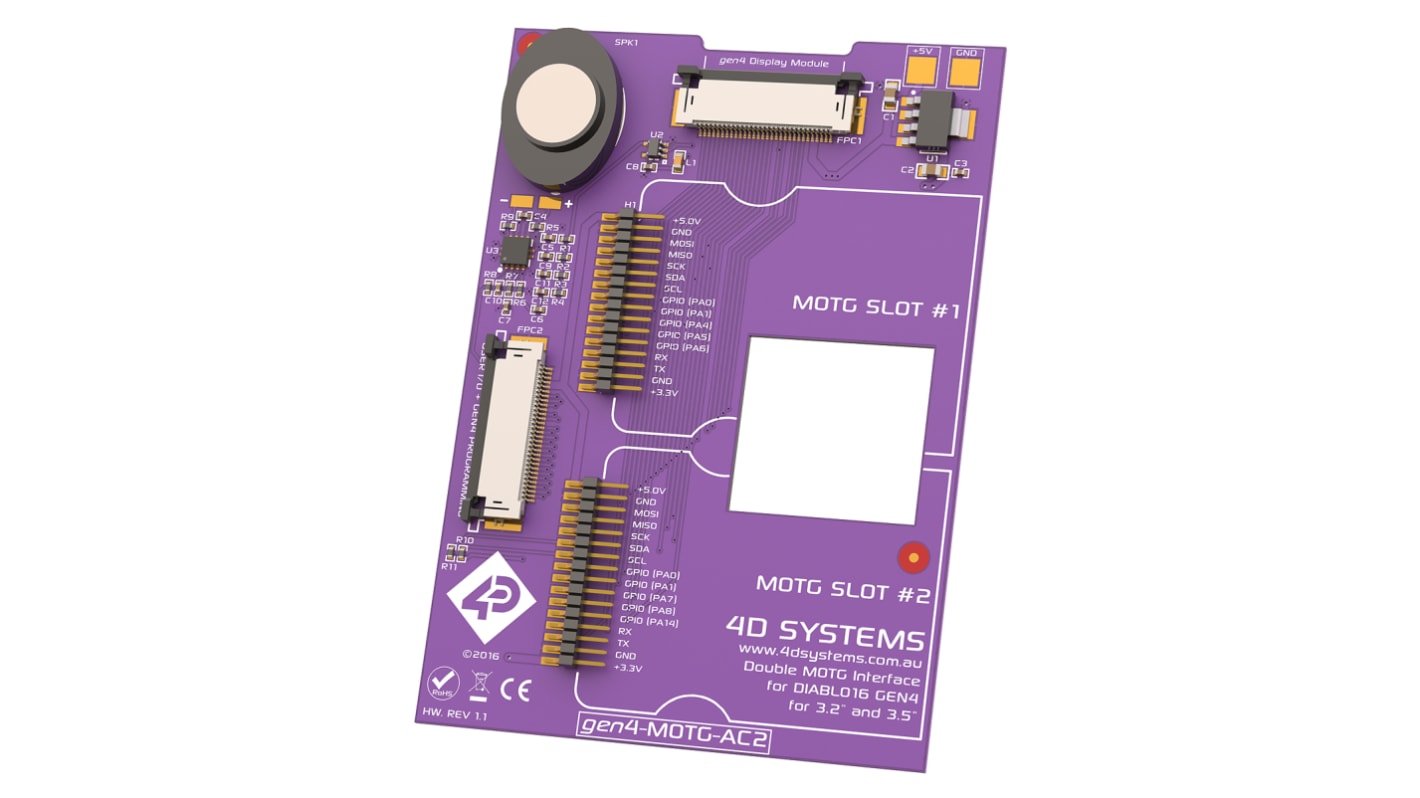

This MOTG AC2 Interface Board provides the link between a Diablo16 based gen4 LCD Display and up to 2 MOTG Add-On Modules. The MOTG Interface Board sits flush on the back of a 3.2” or 3.5” Diablo16 gen4 LCD Display, providing 2 module slots in the Universal MOTG BUS (UMI) format. The board connects to the display via a 30-way FFC Connector.

In addition, the MOTG AC2 Interface Board features an extra 30-pin ZIF socket for easy connection to other application boards and an audio speaker. A cut-out in the PCB is present to provide access to the microSD card of the gen4 LCD Display Module.

Provides 2 MOTG Module slots

Compact – Fitment maintains slim module profile

An extra 30-pin ZIF socket for user I/O

Audio speaker

PCB cut-out for easy access to the LCD microSD
