4D Systems, gen4 7in Arduino Compatible Display

모든 Displays For Arduino 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩286,211.20

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보
수량
한팩당
1 - 49₩286,211.20
50 - 249₩268,370.00
250 +₩262,993.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
175-7766
제조사 부품 번호:
SK-gen4-70DT-AR
제조업체:
4D Systems
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

4D Systems

Diagonal Display Size

7in

For Use With

Arduino

Series

gen4

COO (Country of Origin):
AU

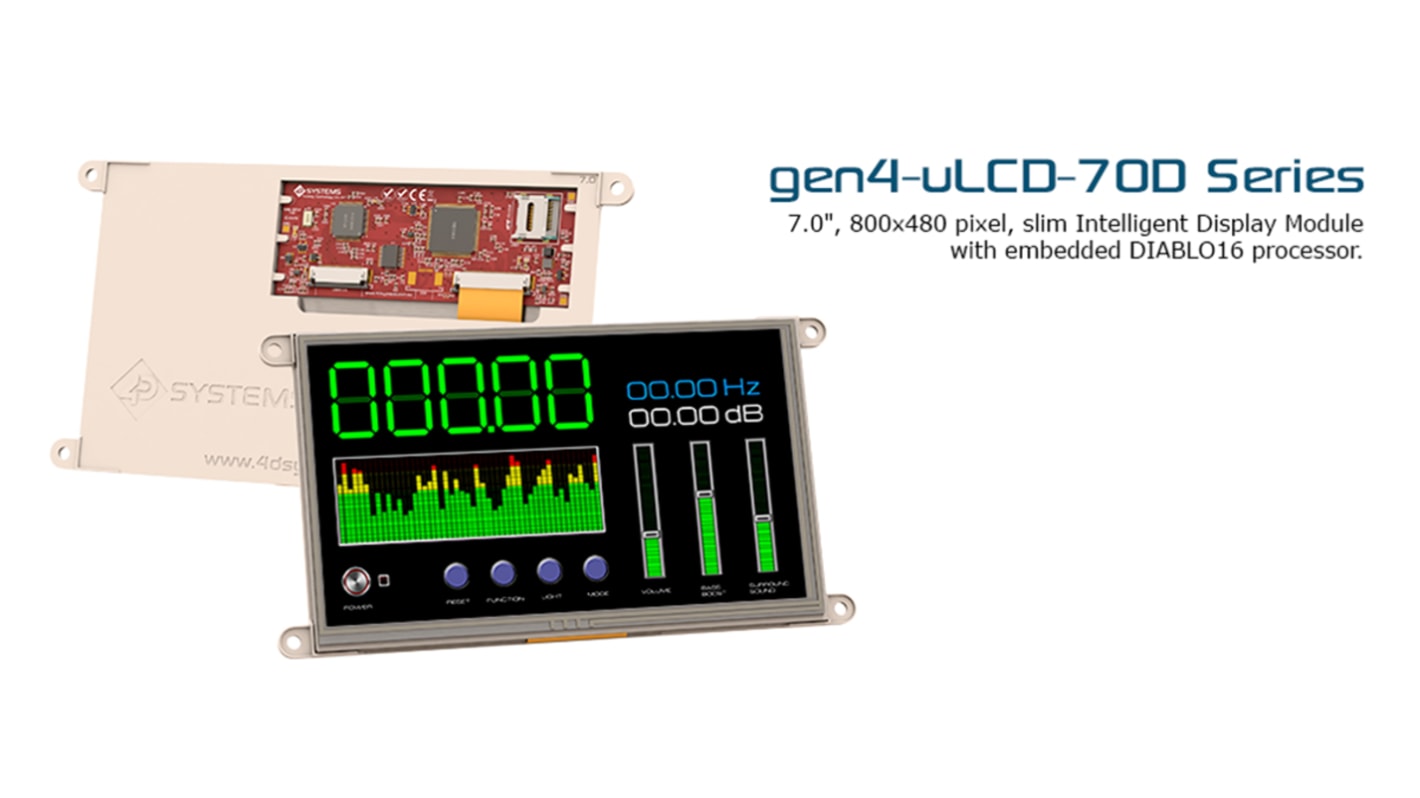

4D Systems Gen4 7in Display Module Starter Kit


The 4D Systems Gen4 display module starter kit is a 7in integrated colour TFT LCD with resistive touch powered by the well-known 4D systems Diablo16 graphics processor, which offers an array of functionality and options for designer users. The operating supply voltage range between 4V and 5.5V. This display module includes Gen4 integrated display module, gen4-IB interface board, Gen4 Programming Adaptor (gen4-PA), 4GB micro-SD Card, 5-way cable for easy connection to a breadboard or host via the gen4-IB and 30-way 150mm FFC cable accessory boards for a range of functionality advancements

Features and Benefits


• 16 General-purpose I/O pins for user interfacing, which include 4 configurable Analog Inputs. This 16 customisable GPIO, capable of PWM, TTL Serial, 3xI2C channel, SPI channels, Pulse Out and Quadrature Input.
• 32kb SRAM memory for user application code and data
• Display full-colour images with 800x480 resolution, RGB 65K true to life colours
• It has PWM audio pin driven by WAV files from micro-SD card and for sound generation for an external amplifier
• On-board latch type micro-SD memory card connector for multimedia storage and data logging purposes
• One SPI dedicated for SD card and 3x configurable SPI channels available.

Applications


• Embedded applications
• Raspberry Pi
