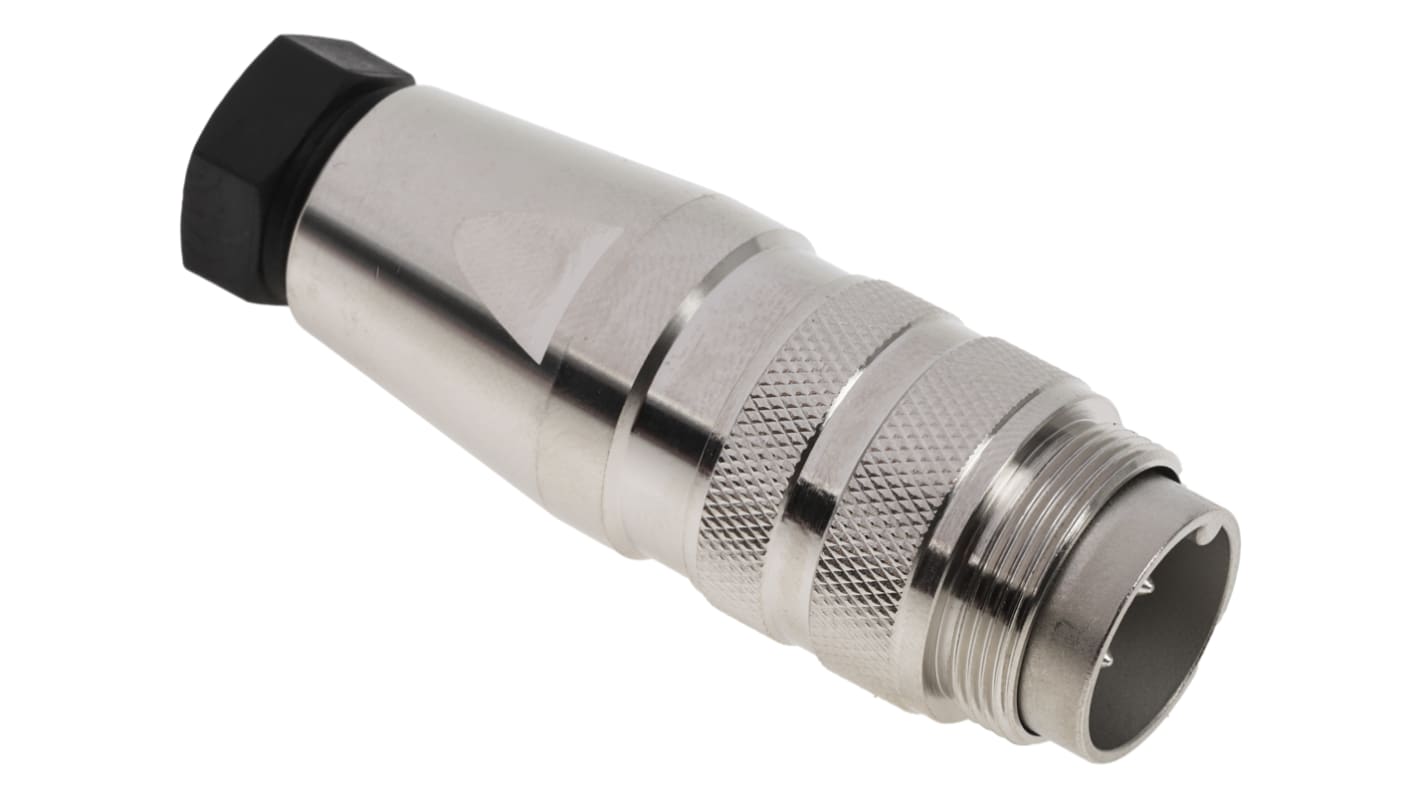

Amphenol Industrial, C 091 D 4 Pole Straight M16 DIN Plug, DIN EN 60130-9, 5A, 300 V ac, 300V dc IP67, Screw-On, Cable
- RS 제품 번호:
- 157-2461
- Distrelec 제품 번호:
- 144-41-663
- 제조사 부품 번호:
- C09131H0041002
- 제조업체:
- Amphenol Industrial
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩27,020.00
재고있음
- 921 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩27,020.00 |
| 5 + | ₩25,660.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 157-2461
- Distrelec 제품 번호:
- 144-41-663
- 제조사 부품 번호:
- C09131H0041002
- 제조업체:
- Amphenol Industrial
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Amphenol Industrial | |
| Number of Contacts | 4 | |
| Product Type | DIN Plug | |
| Current | 5A | |
| Mount Type | Cable | |
| Connector Size | M16 | |
| Mating Type | Screw-On | |
| Connector Gender | Male | |
| Orientation | Straight | |
| Voltage | 300, 300V ac | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 100°C | |
| DIN Number | DIN EN 60130-9 | |
| Contact Gender | Male | |
| Series | C 091 D | |
| Standards/Approvals | No | |
| Pole Format | 4 | |
| Housing Material | Die Cast Nickel | |
| Contact Plating | Silver | |
| 모두 선택 | ||
|---|---|---|
브랜드 Amphenol Industrial | ||
Number of Contacts 4 | ||
Product Type DIN Plug | ||
Current 5A | ||
Mount Type Cable | ||
Connector Size M16 | ||
Mating Type Screw-On | ||
Connector Gender Male | ||
Orientation Straight | ||
Voltage 300, 300V ac | ||
IP Rating IP67 | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 100°C | ||
DIN Number DIN EN 60130-9 | ||
Contact Gender Male | ||
Series C 091 D | ||
Standards/Approvals No | ||
Pole Format 4 | ||
Housing Material Die Cast Nickel | ||
Contact Plating Silver | ||
- COO (Country of Origin):
- CN
Straight Cable Plug
For cable diameter 4-6mm
C091D - Metal
Amphenol C091D robust circular DIN connectors manufactured to the highest standard in brass and die-cast aluminium, nickel-plated to suit the most demanding industrial applications. Ideal for medical, robotic, automotive, instrumentation, CCTV and computer interface applications.
Screw locking
IP67 (in accordance with DIN 40050)
Silver/gold contact plating
Internal strain relief
Note
5-way and 7-way are available in two configurations.
