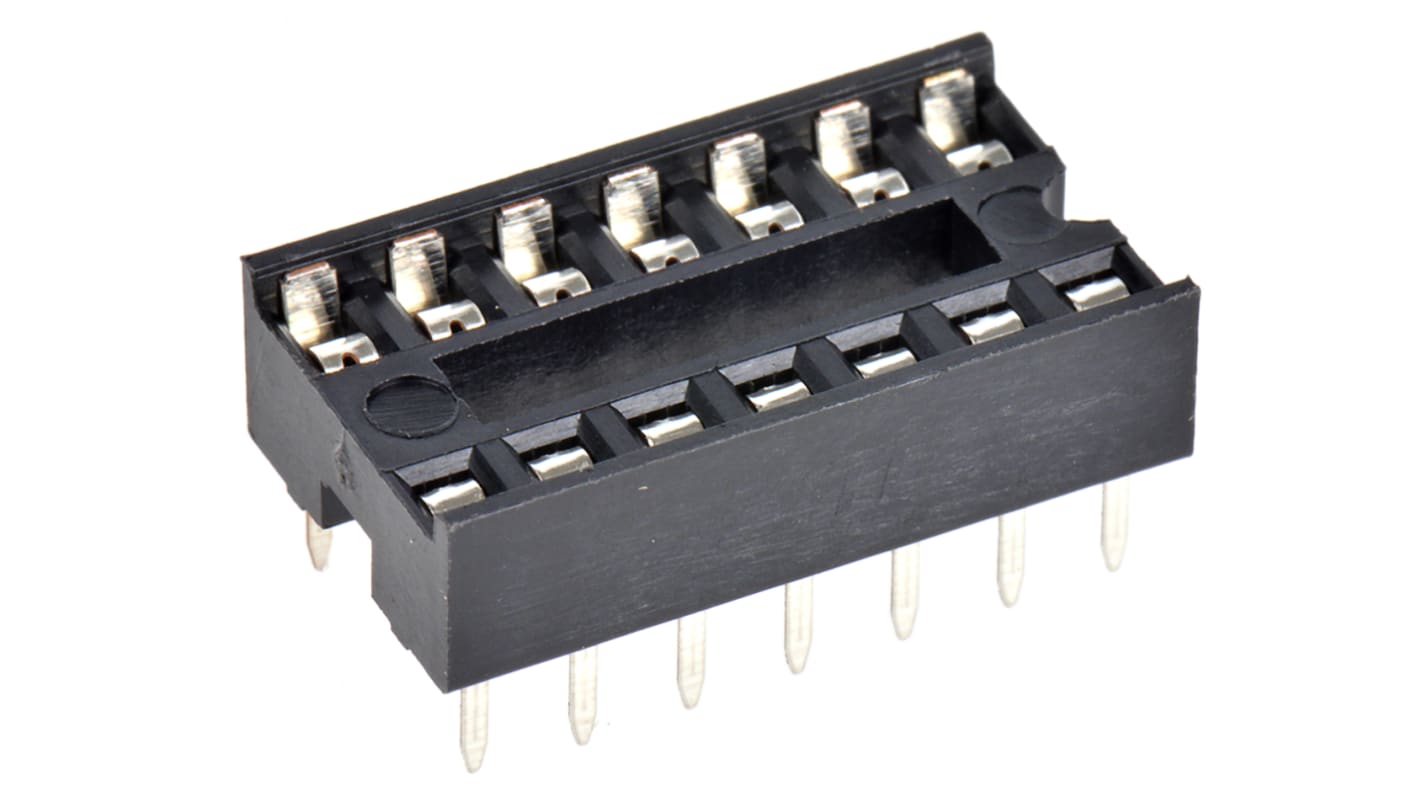

TE Connectivity, 1-2199298 2.54 mm Pitch Straight 14 Way, Through Hole Standard Pin Ladder DIL Socket, 1A
- RS 제품 번호:
- 880-2286
- 제조사 부품 번호:
- 1-2199298-3
- 제조업체:
- TE Connectivity
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 tube of 34 units)*
₩7,862.16
재고있음
- 추가로 2026년 3월 23일 부터 204 개 단위 배송
- 추가로 2026년 3월 30일 부터 2,958 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Tube* |
|---|---|---|
| 34 - 136 | ₩231.24 | ₩7,875.32 |
| 170 - 306 | ₩225.60 | ₩7,670.40 |
| 340 - 646 | ₩219.96 | ₩7,484.28 |
| 680 - 1666 | ₩214.32 | ₩7,254.92 |
| 1700 + | ₩206.80 | ₩7,031.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 880-2286
- 제조사 부품 번호:
- 1-2199298-3
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Number of Contacts | 14 | |
| Product Type | DIL Socket | |
| Mount Type | Through Hole | |
| Current | 1A | |
| Pin Type | Standard | |
| Pitch | 2.54mm | |
| Row Width | 7.62mm | |
| Voltage | 250 V ac/dc | |
| Frame Type | Ladder | |
| Contact Plating | Tin over Nickel | |
| Orientation | Straight | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Width | 10 mm | |
| Standards/Approvals | No | |
| Depth | 5.1mm | |
| Length | 17.78mm | |
| Series | 1-2199298 | |
| Contact Material | Phosphor Bronze | |
| Housing Material | Glass Filled Polybutylene Terephthalate, Thermoplastic | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Number of Contacts 14 | ||
Product Type DIL Socket | ||
Mount Type Through Hole | ||
Current 1A | ||
Pin Type Standard | ||
Pitch 2.54mm | ||
Row Width 7.62mm | ||
Voltage 250 V ac/dc | ||
Frame Type Ladder | ||
Contact Plating Tin over Nickel | ||
Orientation Straight | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Width 10 mm | ||
Standards/Approvals No | ||
Depth 5.1mm | ||
Length 17.78mm | ||
Series 1-2199298 | ||
Contact Material Phosphor Bronze | ||
Housing Material Glass Filled Polybutylene Terephthalate, Thermoplastic | ||
- COO (Country of Origin):
- CN
TE Connectivity DIPLOMATE Dual Leaf PCB Mount DIP Socket
DIPLOMATE Dual Leaf (DL) DIP sockets with stamped and formed dual wiping contacts for vertical, through hole PCB mounting. These DIPLOMATE Dual Leaf (DL) DIP sockets have black thermoplastic GF stackable housings with a 2.54mm centreline, and a "true closed bottom" design which prevents solder or flux wicking and standoffs to allow board clearance for cleaning after soldering. The profiles for these DIPLOMATE Dual Leaf (DL) DIP sockets are all standard apart from part number 719-8817 which has an over-the-component profile. These DIPLOMATE DIP sockets are available with different frame styles with either straight or retention legs.
