Subtotal (1 unit)*
₩79,677.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 + | ₩79,677.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 427-690
- 제조사 부품 번호:
- PG164110
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |

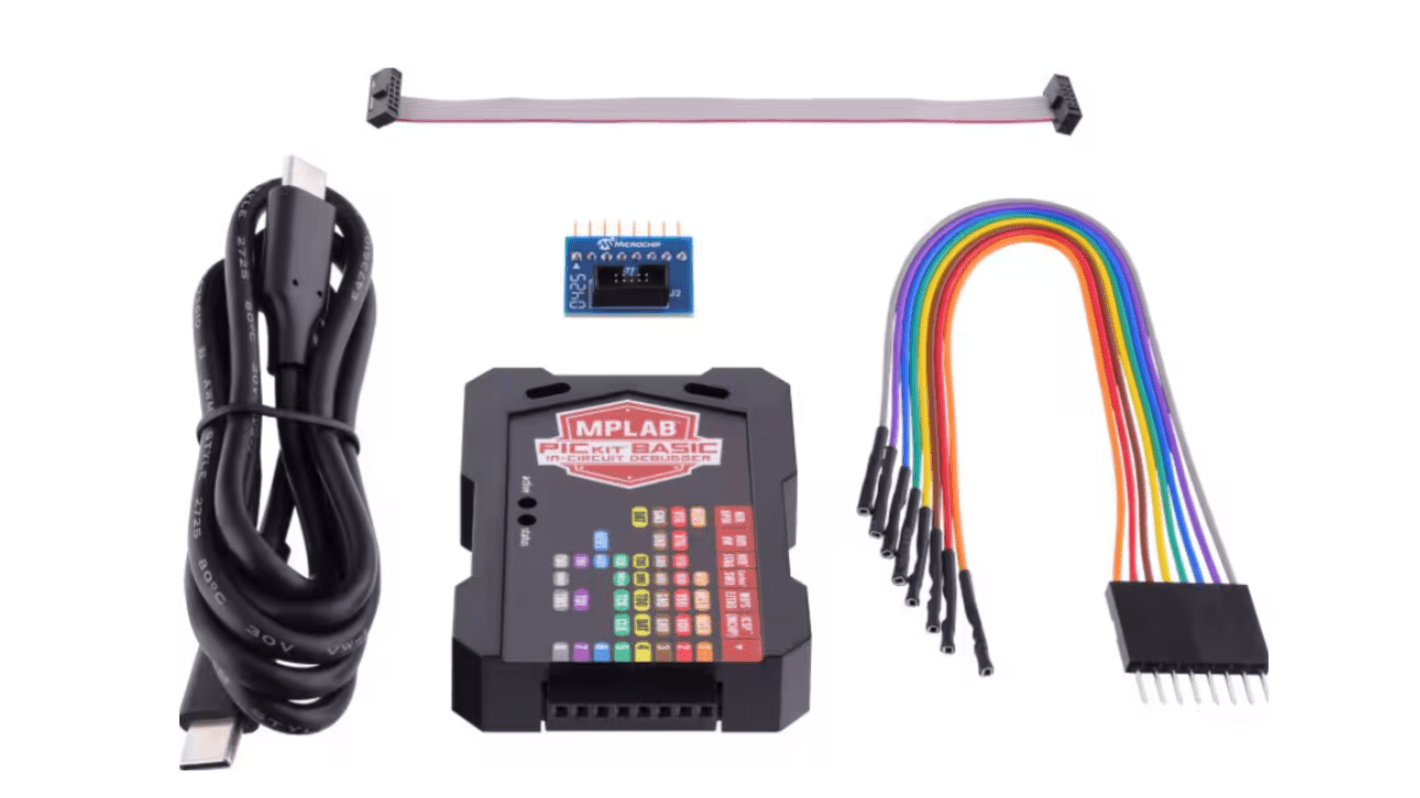

| Kit Contents | USB Type-C Cable, Two Status LEDs, 8-Pin to 10-Pin ARM SWD Adapter Board, MPLAB PICkit Basic Enclosure, Emergency Recovery Button, 8-Pin SIL Connector | |
| Core Architecture | ARM Cortex M7 | |
| Standards/Approvals | RoHS, CE | |
| Product Type | Programmers & In-Circuit Emulator | |
| For Use With | DSC, dsPIC, SAM, CEC, PIC, AVR, PIC32 Devices | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Kit Contents USB Type-C Cable, Two Status LEDs, 8-Pin to 10-Pin ARM SWD Adapter Board, MPLAB PICkit Basic Enclosure, Emergency Recovery Button, 8-Pin SIL Connector | ||
Core Architecture ARM Cortex M7 | ||
Standards/Approvals RoHS, CE | ||
Product Type Programmers & In-Circuit Emulator | ||
For Use With DSC, dsPIC, SAM, CEC, PIC, AVR, PIC32 Devices | ||
The Microchip Basic In-circuit debugger is an ultra-low priced debugging solution for projects not requiring high-voltage programming or advanced debug features. Therefore, it supports many of Microchip’s newer MCU offerings but not some legacy products. With a nominal feature set, the debugger is geared toward developers who don’t require advanced features. It is not intended for production programming.
Debugs your application on your own hardware in real time
Sets breakpoints based on internal events
Debugs at full target MCU speed
Configures pin drivers
Connects to computer via high-speed USB 2.0 cable
8 pin SIL programming connector and the option to use various interfaces
Programs devices using MPLAB X IDE or MPLAB IPE
