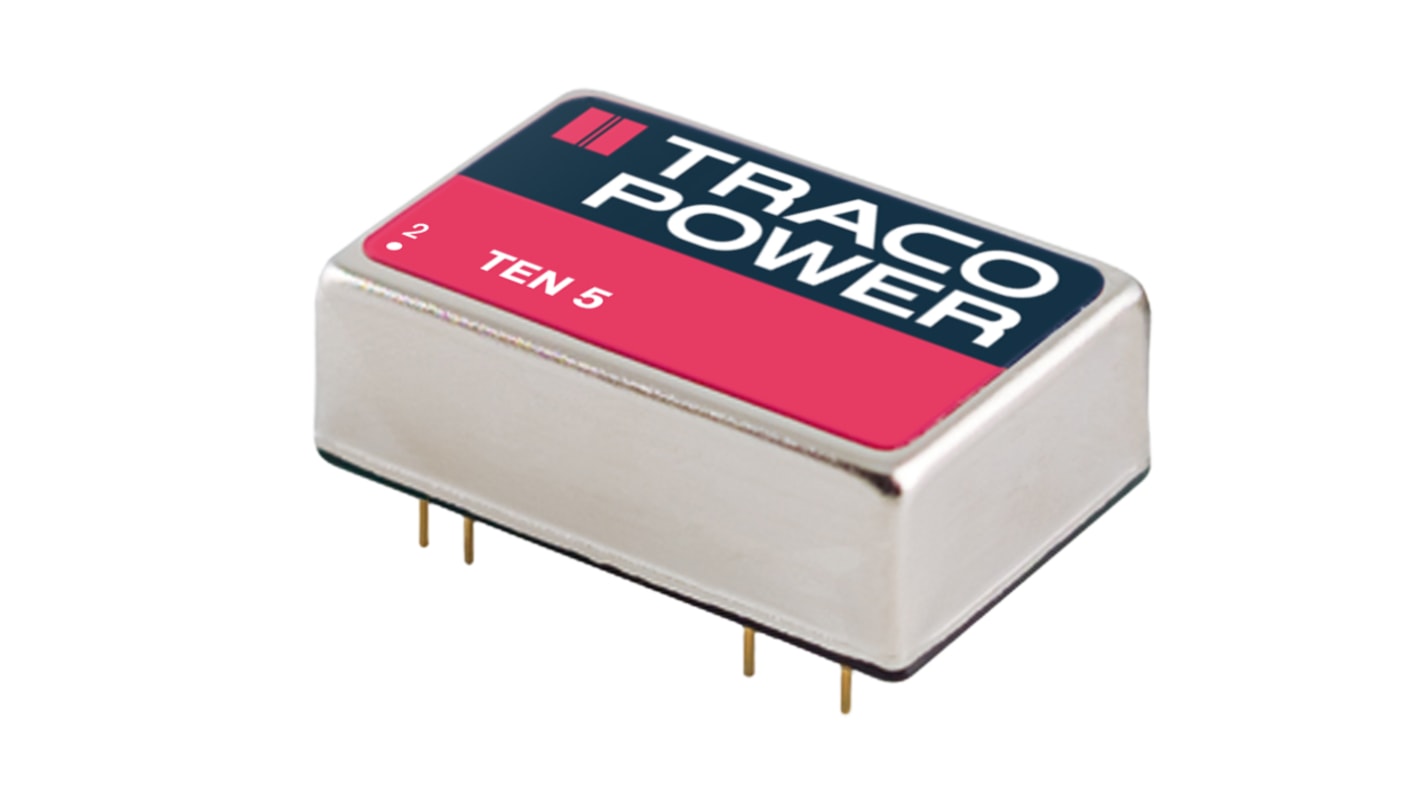

TRACOPOWER TEN 5 DC/DC Converter, 5V dc/ 1 A, 18V dc Input, 9V Input 5 W, PCB, 85 °C Max Temp -40 °C Min Temp, 24-Pin

RS 제품 번호:: 124-7607
제조사 부품 번호:: TEN 5-1211
제조업체:: TRACOPOWER

TRACOPOWER TEN 5 DC/DC Converter, 5V dc/ 1 A, 18V dc Input, 9V Input 5 W, PCB, 85 °C Max Temp -40 °C Min Temp, 24-Pin

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 tube of 10 units)*

₩417,700.00

5 개 단위 배송 준비 완료
추가로 2026년 11월 05일 부터 1 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

Tube(s)	Per Tube	한팩당*
1 - 4	₩417,700.00	₩41,770.00
5 - 9	₩412,580.00	₩41,258.00
10 +	₩405,260.00	₩40,526.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 124-7607
제조사 부품 번호:: TEN 5-1211
제조업체:: TRACOPOWER

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	TRACOPOWER
	Product Type	DC/DC Converter
	Output Voltage 1	5V dc
	Minimum Input Voltage	9V
	Maximum Input Voltage	18V dc
	Output Current 1	1A
	Output Current 2	1A
	Mount Type	PCB
	Input Ratio	2:1
	MTBF	700000h
	Number of Outputs	1
	Output Voltage Adjustment Range	9/18 V
	Number of Pins	24
	Isolation Voltage	1.5kV dc
	Package Type	DIP
	Maximum Output Power	5W
	Standards/Approvals	No
	Width	20mm
	Length	32mm
	Depth	10mm
	Series	TEN 5
	Efficiency	81%
	Maximum Operating Temperature	85°C
	Minimum Operating Temperature	-40°C

	모두 선택
	브랜드 TRACOPOWER
	Product Type DC/DC Converter
	Output Voltage 1 5V dc
	Minimum Input Voltage 9V
	Maximum Input Voltage 18V dc
	Output Current 1 1A
	Output Current 2 1A
	Mount Type PCB
	Input Ratio 2:1
	MTBF 700000h
	Number of Outputs 1
	Output Voltage Adjustment Range 9/18 V
	Number of Pins 24
	Isolation Voltage 1.5kV dc
	Package Type DIP
	Maximum Output Power 5W
	Standards/Approvals No
	Width 20mm
	Length 32mm
	Depth 10mm
	Series TEN 5
	Efficiency 81%
	Maximum Operating Temperature 85°C
	Minimum Operating Temperature -40°C

Datasheet

COO (Country of Origin):: TW

Traco Power TEN 5 Series DC-DC Converter, 81% Efficiency, Through Hole Mount - TEN 5-1211

This Traco Power DC-DC converter, known for its outstanding efficiency of 81% and power rating of 6W. This isolated converter offers a stable output voltage of 5V and operates within a wide input voltage range of 9 18V. Ideal for various applications in automation, electronics, electrical, and mechanical industries, this converter ensures reliable performance in challenging environments.

Features & Benefits

• Wide input voltage range of 9 18V, providing flexibility in powering options

• Efficiency rating of 81%, ensuring optimal power usage and reduced energy consumption

• Isolated converter with an isolation voltage of 1.5kV for enhanced safety and protection

• Power rating of 6W, suitable for powering a wide range of devices and equipment

• Through hole mounting for easy and secure installation in different setups

Applications

• Used in Industrial automation systems for stable power supply

• Ideal for electronic devices requiring a reliable DC-DC conversion

• Suitable for use in automotive electronics for consistent voltage output

• Perfect for mechanical equipment needing efficient power distribution

Can it withstand extreme temperature ranges?

Yes, the Traco Power DC-DC converter is designed to operate smoothly in temperatures ranging from -40°C to +85°C.

Is the output voltage fixed at 5V?

Yes, this isolated converter provides a stable output voltage of 5V for consistent power delivery.

Will it work with a wide input voltage range?

Yes, the Traco Power DC-DC converter can efficiently operate within an input voltage range of 9-18V.

Does it offer high efficiency in power usage?

Yes, with an efficiency rating of 81%, this converter ensures optimal power utilization for various applications.

Can it be mounted easily in different setups?

Yes, the through hole mounting feature of this converter allows for secure and convenient installation.

Approvals

EN60950; UL1950
