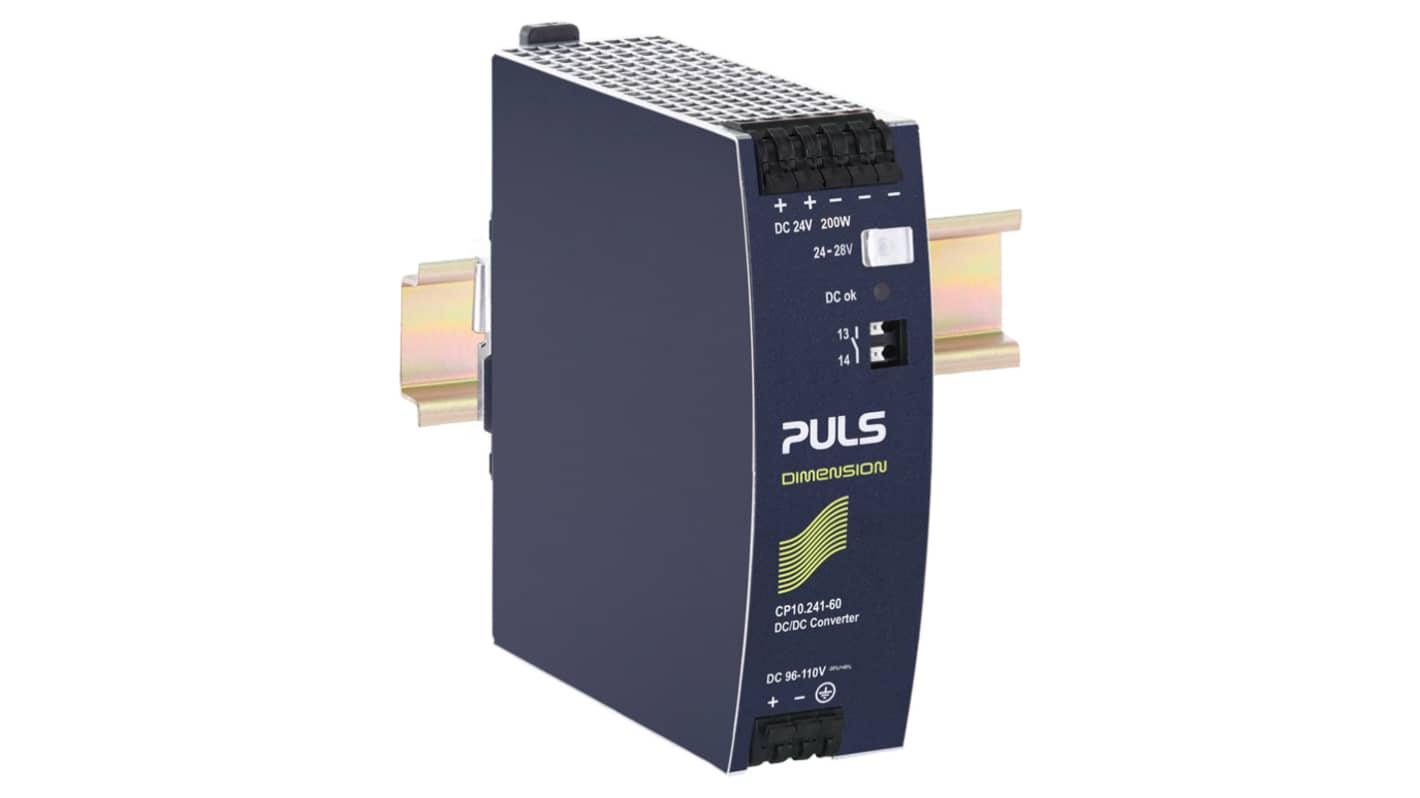

PULS CP10 DC/DC Converter, 24V dc/ 7.1 A, 154V dc Input, Wall 200 W, 70 °C Max Temp -40 °C Min Temp
- RS 제품 번호:
- 401-724
- Distrelec 제품 번호:
- 303-31-008
- 제조사 부품 번호:
- CP10.241-60
- 제조업체:
- PULS
Subtotal (1 unit)*
₩719,340.00
재고있음
- 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩719,340.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 401-724
- Distrelec 제품 번호:
- 303-31-008
- 제조사 부품 번호:
- CP10.241-60
- 제조업체:
- PULS
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | PULS | |
| Output Voltage 1 | 24V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 154V dc | |
| Output Current 1 | 7.1A | |
| Mount Type | Wall | |
| Number of Outputs | 1 | |
| MTBF | 1362000h | |
| Ripple and Noise | 50mV | |
| Output Voltage Adjustment Range | 24/28 V | |
| Maximum Output Power | 200W | |
| Length | 124mm | |
| Standards/Approvals | EN 61000-6-2, EN 61000-4-8, EN 50155, EN 61000-4-5, EN 55032, EN 61000-4-9, EN 61000-4-2, EN 50121-3-2, FCC Part 15, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-6-1, EN 55011 | |
| Depth | 117mm | |
| Width | 39mm | |
| Weight | 620g | |
| Series | CP10 | |
| Efficiency | 94.5% | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| 모두 선택 | ||
|---|---|---|
브랜드 PULS | ||
Output Voltage 1 24V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 154V dc | ||
Output Current 1 7.1A | ||
Mount Type Wall | ||
Number of Outputs 1 | ||
MTBF 1362000h | ||
Ripple and Noise 50mV | ||
Output Voltage Adjustment Range 24/28 V | ||
Maximum Output Power 200W | ||
Length 124mm | ||
Standards/Approvals EN 61000-6-2, EN 61000-4-8, EN 50155, EN 61000-4-5, EN 55032, EN 61000-4-9, EN 61000-4-2, EN 50121-3-2, FCC Part 15, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-6-1, EN 55011 | ||
Depth 117mm | ||
Width 39mm | ||
Weight 620g | ||
Series CP10 | ||
Efficiency 94.5% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
- COO (Country of Origin):
- CZ
The PULS DC/DC converter is designed for railway and transportation applications, meeting EN 50155 standards. It features conformal coated PC boards, DC-OK signal contact for remote monitoring, and quick-connect spring-clamp terminals for reliable connections. It operates in a temperature range of -40°C to +70°C with full output current.
DC-OK relay contact
Reverse input polarity protected
3 year warranty
