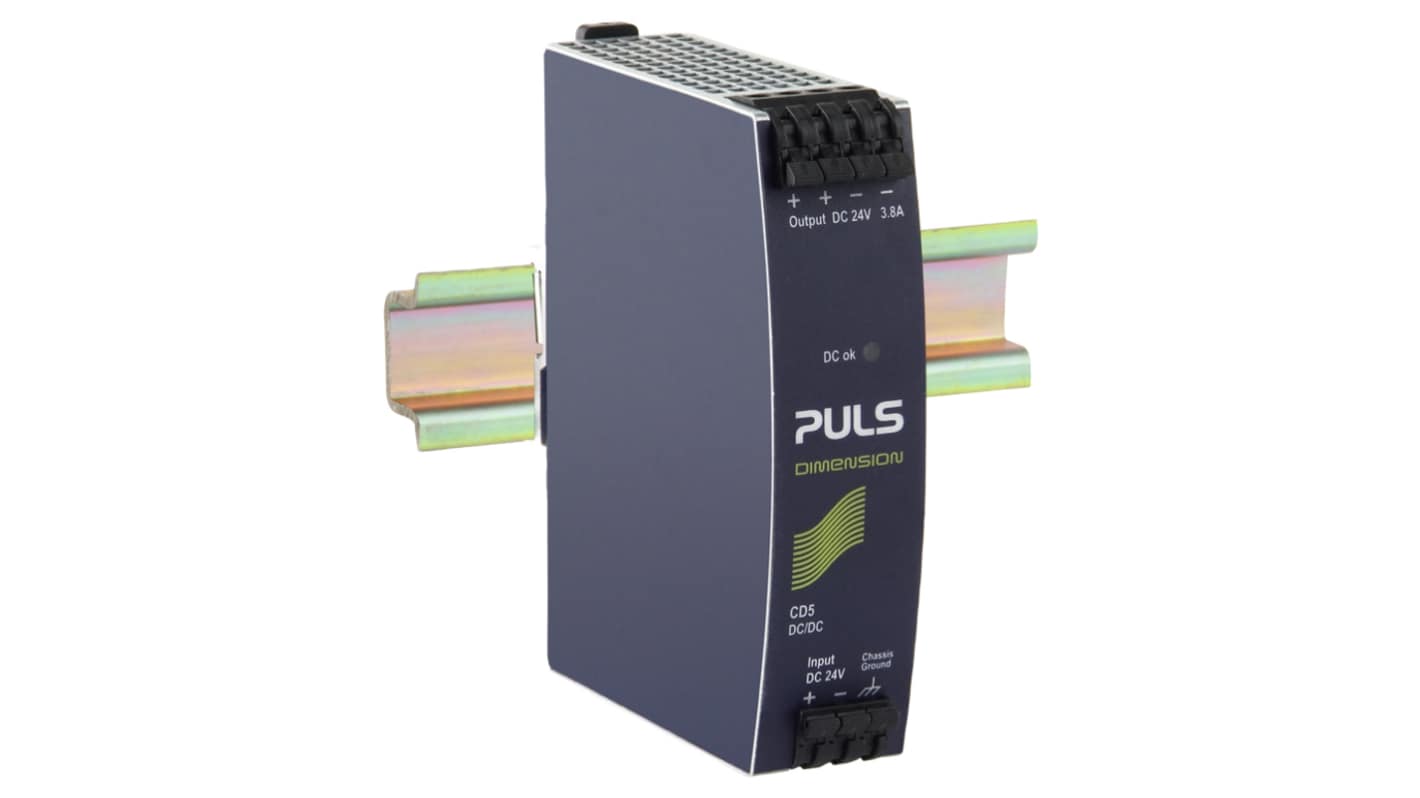

PULS CD5 DC/DC Converter, 24V dc/ 3.8 A, 32.4V dc Input, 32.4V dc Input, Wall 92 W, 70 °C Max Temp -25 °C Min Temp

모든 DC-DC Converters 열람하기

Subtotal (1 unit)*

₩479,742.90

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량
한팩당
1 +₩479,742.90

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
401-723
Distrelec 제품 번호:
303-31-006
제조사 부품 번호:
CD5.241-L1
제조업체:
PULS
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

PULS

Product Type

DC/DC Converter

Output Voltage 1

24V dc

Maximum Input Voltage

32.4V dc

Minimum Input Voltage

32.4V dc

Output Current 1

3.8A

Mount Type

Wall

MTBF

1904h

Number of Outputs

1

Ripple and Noise

50mV

Isolation Voltage

500V ac

Maximum Output Power

92W

Depth

102mm

Length

124mm

Weight

425g

Standards/Approvals

IEC 61709, IEC 62477-1, IEC 60950-1, IEC 60364-4-41, EN 61000-6-3, Marine, UL 60950-1, IEC 60068-2-30, EN 60204-1, EN 55011, EN 61000-6-1, ATEX, IEC 60068-2-6, Class I Div 2, EN 61000-6-4, UL 508, EN 50178, EN 55032, FCC Part 15, IEC 60068-2-27, EN 61000-6-2

Series

CD5

Width

32mm

Efficiency

90.5%

Maximum Operating Temperature

70°C

Minimum Operating Temperature

-25°C

The PULS Dimension CD Series offers compact DIN rail DC/DC converters with 92-120W output power. They can stabilize 24Vdc over long cable runs or be used with batteries. The S1 version includes spring clamp terminals, DC-OK contact, and input-low relay contact, while the L1 version meets NEC Class 2 requirements. All models, except CD5.241-L1, feature Power Boost with 20% power reserves, usable up to +45°C.

Minimal inrush current surge

Reverse input polarity protection

3 year warranty
