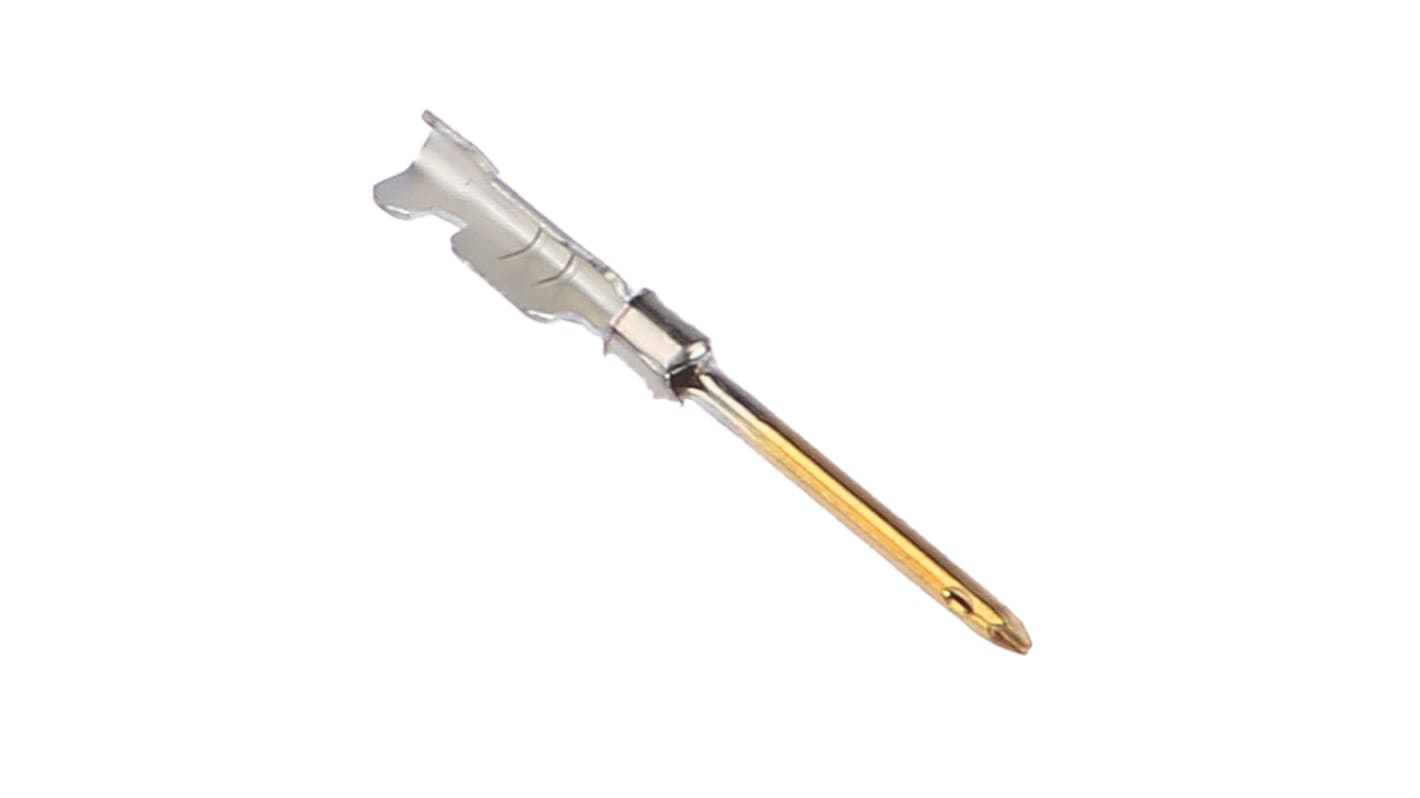

TE Connectivity, AMPLIMITE HDP-22 Series, size 22 Male Crimp D-Sub Connector Contact, Gold over Nickel Signal 22 AWG

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 D Sub Contacts 열람하기
대량 구매 할인 기용 가능
View bulk pricing options

Subtotal (1 pack of 10 units)*

₩3,820.00

Add to Basket
수량 선택 또는 입력
제한된 재고
  • 1,030 개 남음 배송 준비 완료
  • 추가로 다른 지역에서 12,380 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
한팩당*
10 - 240₩382.00₩3,820.00
250 - 490₩380.00₩3,800.00
500 +₩370.00₩3,700.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
270-9838
Distrelec 제품 번호:
304-29-022
제조사 부품 번호:
1658670-2
제조업체:
TE Connectivity
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

TE Connectivity

Gender

Male

Product Type

D-Sub Connector Contact

Contact Material

Brass

Contact Plating

Gold over Nickel

Contact Type

Signal

Minimum Wire Size mm²

0.076mm²

Maximum Wire Size mm²

0.33mm²

Series

AMPLIMITE HDP-22

Contact Size

22

Termination Type

Crimp

Standards/Approvals

No

Maximum Wire Size AWG

22AWG

Minimum Wire Size AWG

28AWG

COO (Country of Origin):
US
The TE Connectivity 1658670-2 is a pin contact from the HDP-22 series. It is designed for use with the AMPILITE range. This precision-formed crimp contact is made from nickel with tin and gold plating. It is designed to snap-fit into your chosen housing for easy assembly. The contact is then crimped to a wire with a size of 0.08-0.4mm² (28-22AWG).

• Contact size: 22

• 1.9A contact current rating

• Pin diameter: 0.76 mm

Versions Available:

(170-9415) – bag of 1000

(270-9838) – pack of 10

AMPLIMITE Size 22 DF Crimp Snap-In Contacts for HDP-22 D-Sub Connectors


AMPLIMITE size 22 DF crimp snap-in contacts for HDP-22 d-sub connectors. These 22 DF crimp snap-in contacts are precision formed and accept a wire size range of 28-22 AWG (0.4 to 0.08mm2). The pin crimp contacts are made from brass and the socket contacts are made from phosphor bronze. The platings for these contacts are as follows:

Stock numbers 680-9692, 270-9838, 718-1207 and 314-8010 are duplex plated with 0.00076 gold

Stock numbers 798-1322 , 270-9850 and 314-8026 are duplex plated gold flash

For PRO-CRIMPER II hand tool see stock number 314-8032

For insertion/extraction tool see stock number 446-822

Male and female crimp contacts.

Will accept wire sizes 28 to 22 a.w.g. (0.08-0.4mm2).

Use crimp tool stock no. 314-8032 and insert/extraction tool stock no. 446-822.

TE Connectivity AMPLIMITE D-Subminiature Connectors
