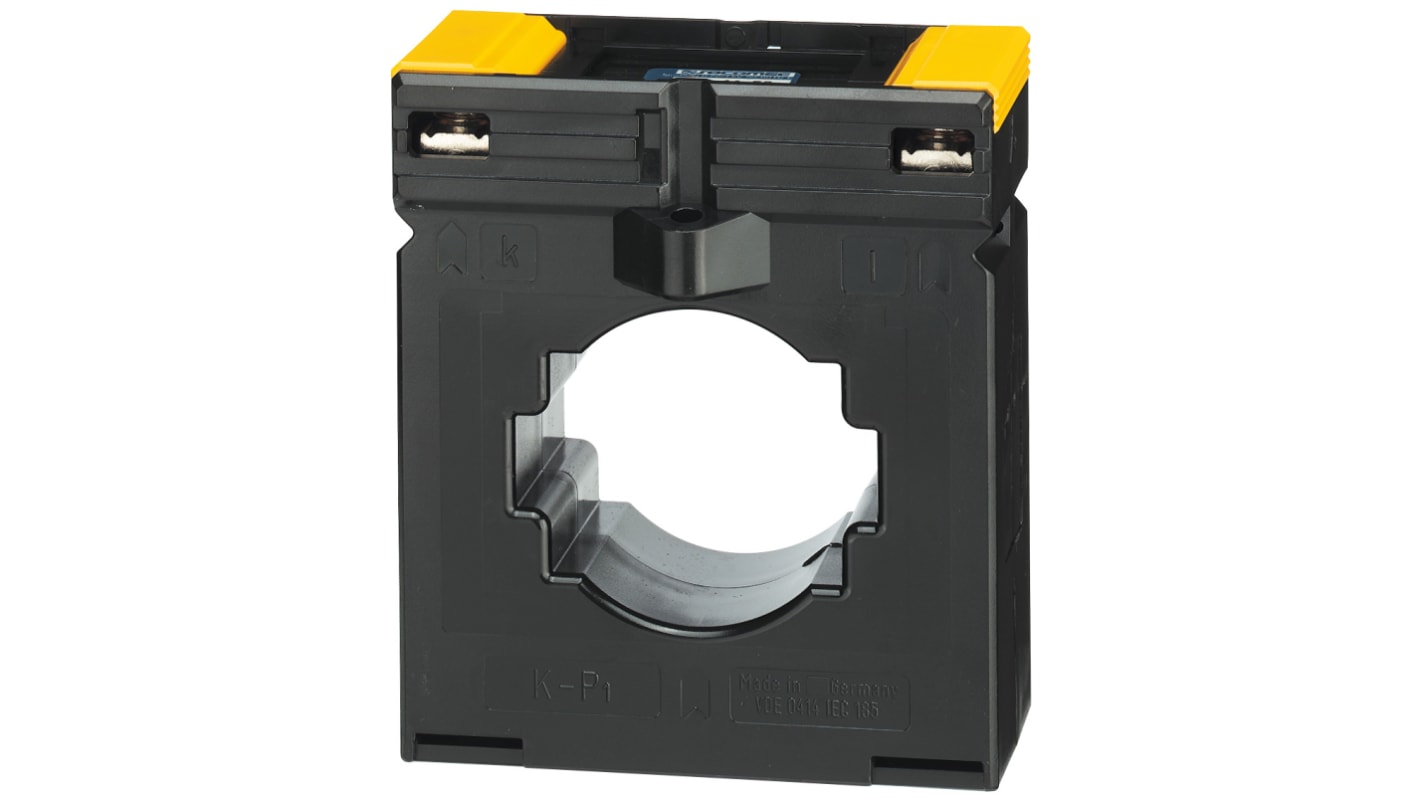

Socomec 192T Series Current Transformer, 250A Input, 250:5, 44mm Bore
- RS 제품 번호:
- 221-0353
- 제조사 부품 번호:
- 192T5025
- 제조업체:
- Socomec
단가 개당
₩75,278.086
1 <재고있음> 5-9영업일내 홍콩 발송
수량 | 한팩당 |
|---|---|
| 1 + | ₩75,278.086 |
- RS 제품 번호:
- 221-0353
- 제조사 부품 번호:
- 192T5025
- 제조업체:
- Socomec
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항
The Socomec bar or cable-through current transformer deliver to the secondary a standard current proportional to the primary current and adapted to the rating of the associated device. They are equipped as standard with removable terminal covers and double terminals allowing the secondary to be short-circuited without any risk. The primary current is 250 A.
Wide range of ratings and dimensions
Quick and easy mounting
Adapted currency class 0.2 s, 0.5, 1 or 3
Edgewise, flat, DIN Rail or back plate mounting is possible
Quick and easy mounting
Adapted currency class 0.2 s, 0.5, 1 or 3
Edgewise, flat, DIN Rail or back plate mounting is possible
사양
속성 | 값 |
|---|---|
| Current Ratio | 250:5 |
| Bore Size | 44mm |
| Series | 192T |
| Input Current | 250A |
| Overall Height | 98.5mm |
| Overall Width | 86mm |
